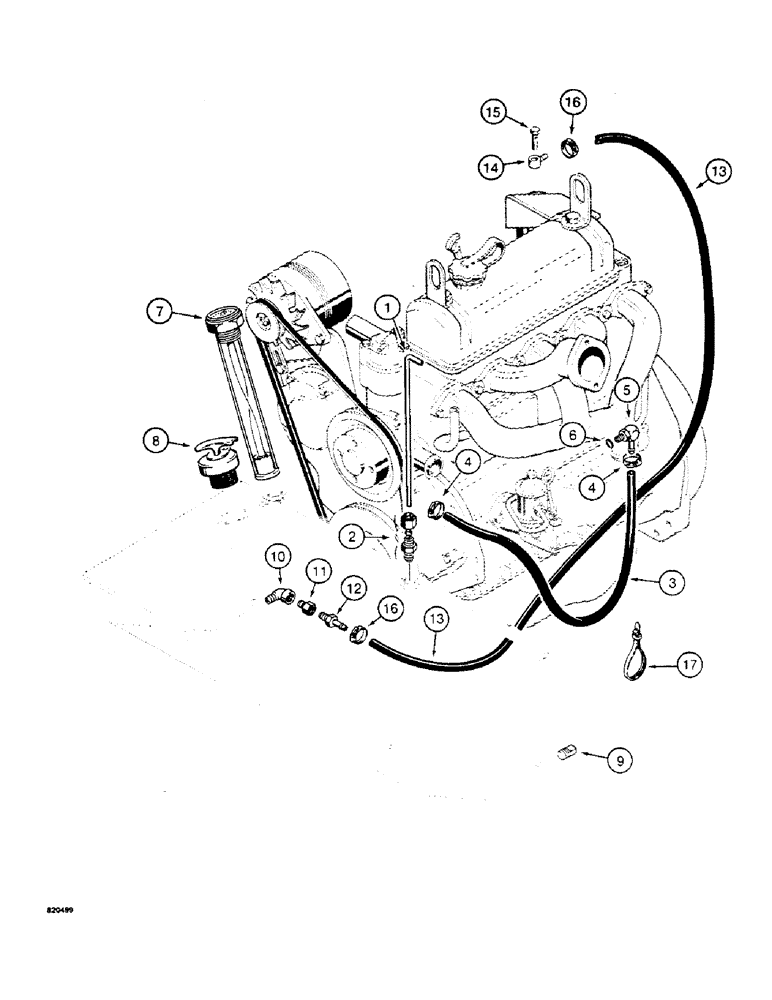

Запчасти Case W4 (030) - FUEL TANK AND FUEL LINES, FOR 1.8 LITRE ENGINE, USED BEFORE TRACTOR SN 1205402 EXCEPT SN 1205397 (03) - FUEL SYSTEM

1

H358606

FUEL TUBE,0.25" OD x 11.18" L

TUBE - fuel suction

1шт.

2

222-639

FITTING,7/16"-24 x 1/4" NPT, Comp

- fuel tube

1шт.

3

H358655

HOSE,0.25" ID x 16.00", SAE 30R2 Type 1

- fuel suction, 1/4" ID x 16" (406 MM) long

1шт.

4

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

5

217-369

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/2" - 20 Male ORB

ELBOW - 90 degree, adjustable, 1/4" hose barb, Includes: Ref. 6

1шт.

6

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, elbow

1шт.

7

H336743

GAUGE

- fuel

1шт.

8

H335984

FILLER CAP

CAP - fuel filler

1шт.

9

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - fuel drain, 3/8" NPT

1шт.

10

221-1413

ELBOW,90 Degree, 3/8"-18, NPT

STREET ELBOW - 90 degree, 3/8" NPT

1шт.

11

221-1086

REDUCER,3/8" NPT x 1/4" NPT

- pipe, 3/8" NPT to 1/4" NPT

1шт.

12

217-126

FITTING,3/16" Hose Barb x 1/4" Male NPTF

CONNECTOR - 1/4" NPT to 3/16" hose barb

1шт.

13

H404046

FUEL HOSE,4.80 mm ID x 865.00 mm, SAE 30R3

4.80 mm ID x 865.00mm, SAE 30R3

1шт.

14

E36685

FITTING

UNION

1шт.

15

E36586

BOLT

- no. 4 injector

1шт.

16

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

17

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - hose

1шт.
