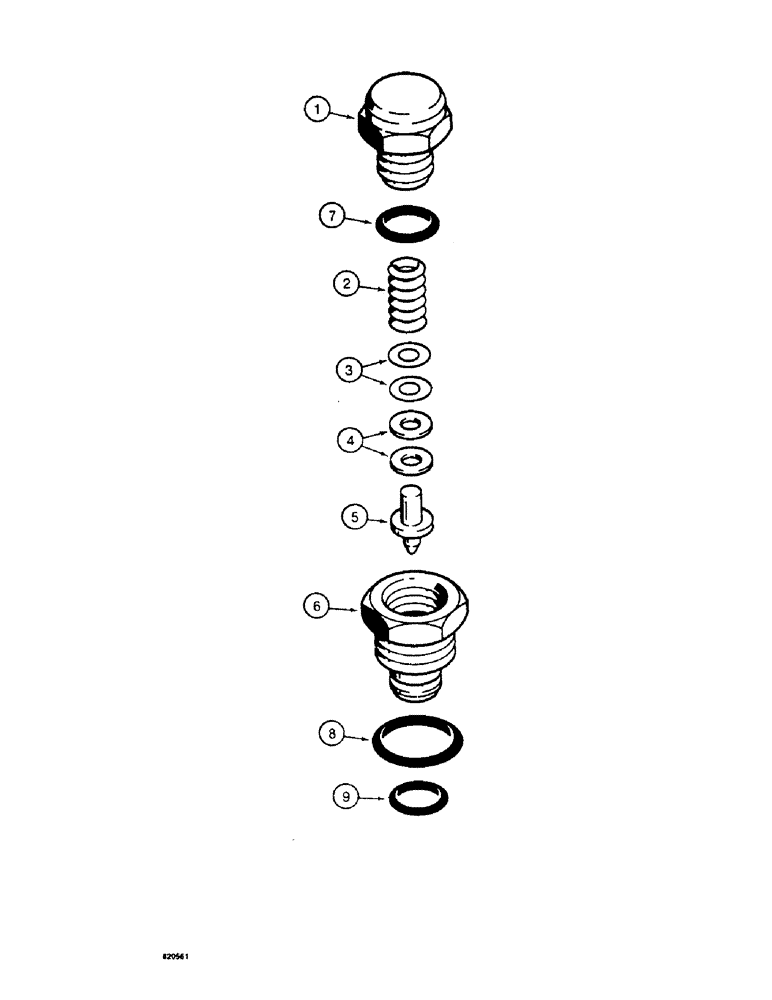

Запчасти Case W4 (152) - LOADER CONTROL VALVE, CIRCUIT RELIEF VALVES (08) - HYDRAULICS

N8011

CIRCUIT RELIEF VALVE - pre-set to 1600 PSI (11 032 kPa) (112.52 kg/cm per square inch), see Figure 146, Includes: Ref. 1-9

1шт.

H649301

CARTRIDGE

CIRCUIT RELIEF VALVE - pre-set to 2650 PSI (17 927 kPa) (182.84 kg/cm per square inch), see Figures 144 and 146, Includes: Ref. 1-9

1шт.

1

NSS

NOT SOLD SEPARAT

CAP - circuit relief

1шт.

2

NSS

NOT SOLD SEPARAT

SPRING - circuit relief

1шт.

3

H398644

BLOCK

SHIM - .003" (0.08 MM) thick

1шт.

4

H398651

BLOCK

SHIM - .020" (0.51 MM) thick

1шт.

5

NSS

NOT SOLD SEPARAT

POPPET - circuit relief

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - circuit relief

1шт.

H644898

KIT

- seal, Includes: Ref. 7-9

1шт.

7

H755975

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

- cap

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- body, large

1шт.

9

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- body, small

1шт.
