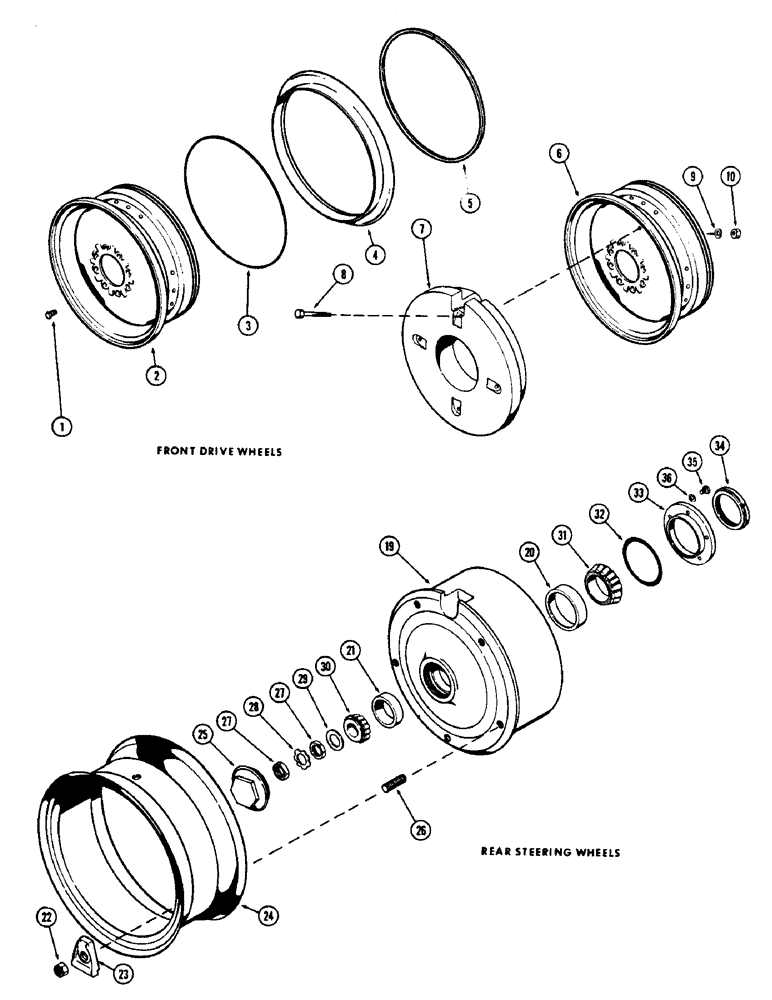

Запчасти Case W5A (152) - FRONT DRIVE WHEELS, REAR STEERING WHEELS (09) - CHASSIS

1

B18264

WHEEL BOLT

BOLT - mounting, drive wheel

16шт.

2

A13642

WHEEL

- drive, front (Used w/out weights) (Takes 12:00-24, 6 ply Road Grader or 13:00-24, 6 ply Road Grader tire)

2шт.

3

A13099

O-RING,22 1" ID x 0.25"

RING - rim, wheel (Rubber)

2шт.

4

A13097

RING

- side, wheel rim

2шт.

5

A13098

RING

- lock, rim side ring

2шт.

6

A19914

WHEEL

- drive, front (Used w/weights) (Takes 12:00 24, 6 ply Road Grader or 13:00-24, 6 ply Road Grader tire)

2шт.

7

A19915

WEIGHT - wheel, drive (Mach. item)

2шт.

8

15-1092

HARDWARE

BOLT - 5/8 x 5-3/4" N.C. hex.

8шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

10

25-1010

NUT,5/8"-11, G5

8шт.

A13711

WHEEL ASSY. - rear steering, Includes: Ref. 19 - 21

2шт.

19

NSS

NOT SOLD SEPARAT

WHEEL - rear steering (Order A13711)

1шт.

20

A26678

BEARING CUP,3.6718" OD x 0.9375"

CUP - bearing, inner, rear steering wheels

1шт.

21

A26680

ROLLER BEARING,2.7510" OD x 0.75"

CUP - bearing, outer, rear steering wheels

1шт.

22

A27183

NUT

- stud, rim to wheel, rear steering wheels

10шт.

23

A16726

CLAMP - retainer, wheel rim, rear steering wheels

10шт.

24

A27454

RIM - wheel (7:50-16, 8 ply implement tire w/rib bent stem or 7:50-16, 8 ply thm.), rear steering wheels

2шт.

25

A26011

CAP

- outer bearing, wheel, rear steering wheels

2шт.

26

A27179

STUD

- wheel, rim mounting, rear steering wheels

10шт.

27

25-1516

NUT,Jam, 1"-14, G5

- jam, 1" N.F. hex., rear steering wheels

4шт.

28

A26542

LOCK WASHER

- lock, spindle nut, rear steering wheels

2шт.

29

A26681

BEARING WASHER

WASHER - thrust, outer bearing, rear steering wheels

2шт.

30

A26679

ROLLER BEARING,1.25" ID x 0.9983"

CONE - bearing, outer, wheel, rear steering wheels

2шт.

31

A27301

ROLLER BEARING,2" ID x 1.193"

CONE - bearing, inner, wheel, rear steering wheels

2шт.

32

A26993

O-RING,0.21" Thk x 3.725" ID, -343, Cl 5, 75 Duro

"O" RING - wheel seal retainer, rear steering wheels

2шт.

33

A26992

RETAINER

- seal, rear wheel, rear steering wheels

2шт.

34

A26991

SEAL

- lube, rear wheel, rear steering wheels

2шт.

35

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

- mach., 1/4 x 1/2" N.C., rd. hd., rear steering wheels

10шт.

36

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Rear steering wheels 1/4"

10шт.
