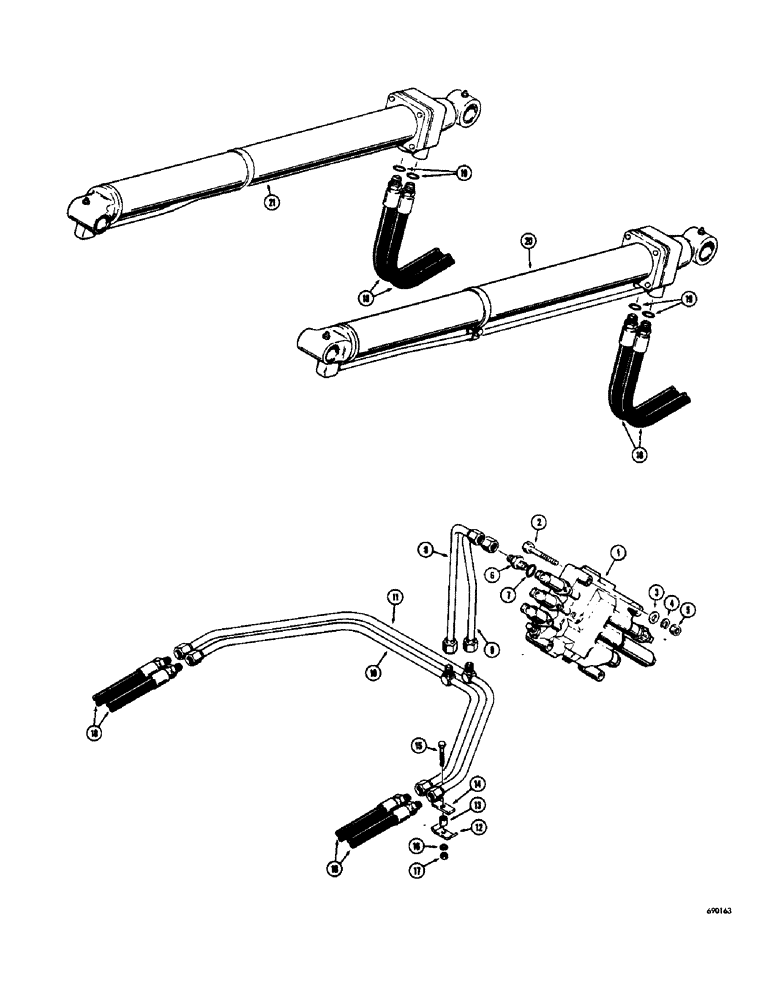

Запчасти Case W7 (258) - LOADER HYDRAULICS, LIFT CYLINDER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - hydraulic, loader control (See figure 268 and 270 for proper valve)

1шт.

2

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

3шт.

3

195-33

WASHER,1/2"

- plain () 1/2"

3шт.

4

92-8

LOCK WASHER,1/2"

3шт.

5

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

3шт.

6

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 7

2шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

8

A17630

TUBE

- valve to inner manifold

1шт.

9

A17631

TUBE - valve to outer manifold

1шт.

10

A17624

TUBE

- manifold, lift cylinder (Inner)

1шт.

11

A17625

TUBE

- manifold, lift cylinder (Outer)

1шт.

12

A14078

CLAMP

- tube

2шт.

13

B18083

BUSHING

SPACER - tube

2шт.

14

A17648

PLATE - clamp mounting

2шт.

15

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" - 16 NC x 2"

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

18

A17623

HYDRAULIC HOSE,0.63" ID x 25.50"

- Manifold to lift cylinder, Includes Ref. 19 0.63" ID x 25.50"

4шт.

19

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

20

A17326

CYLINDER ASSY.

CYLINDER - hydraulic, R.H. loader lift (4" I.D. x 33" stroke) Parts list figure 274

1шт.

21

A17327

CYLINDER ASSY.

CYLINDER - hydraulic, L.H. loader lift (4" I.D. x 33" stroke) Parts list figure 274

1шт.
