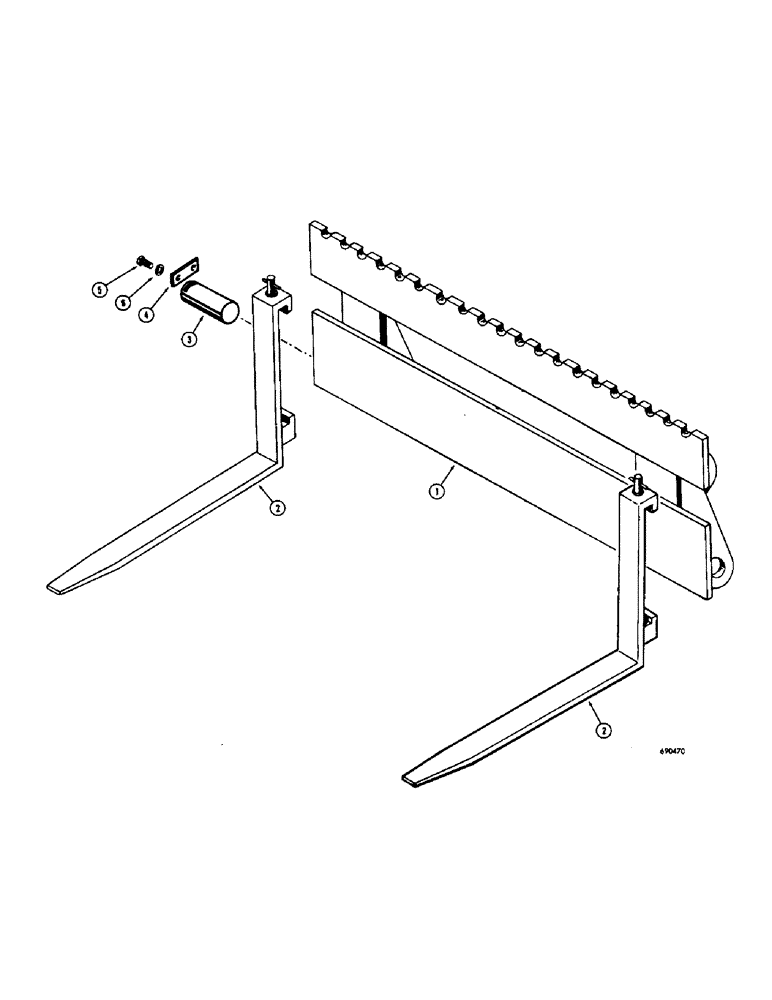

Запчасти Case W7 (254) - FORK LIFT ATTACHMENT (09) - CHASSIS

1

A17600

FRAME - mounting, fork lift

1шт.

2

D38359

PIN,12.7mm OD x 95.25mm L

FORK - pallet

2шт.

A12071

WASHER

- pivot pin (Not illustrated)

1шт.

3

L17204

LOCK

PIN - pivot

4шт.

4

A17204

COVER PLATE

LOCK - pin

4шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

6

92-6

LOCK WASHER,3/8"

8шт.
