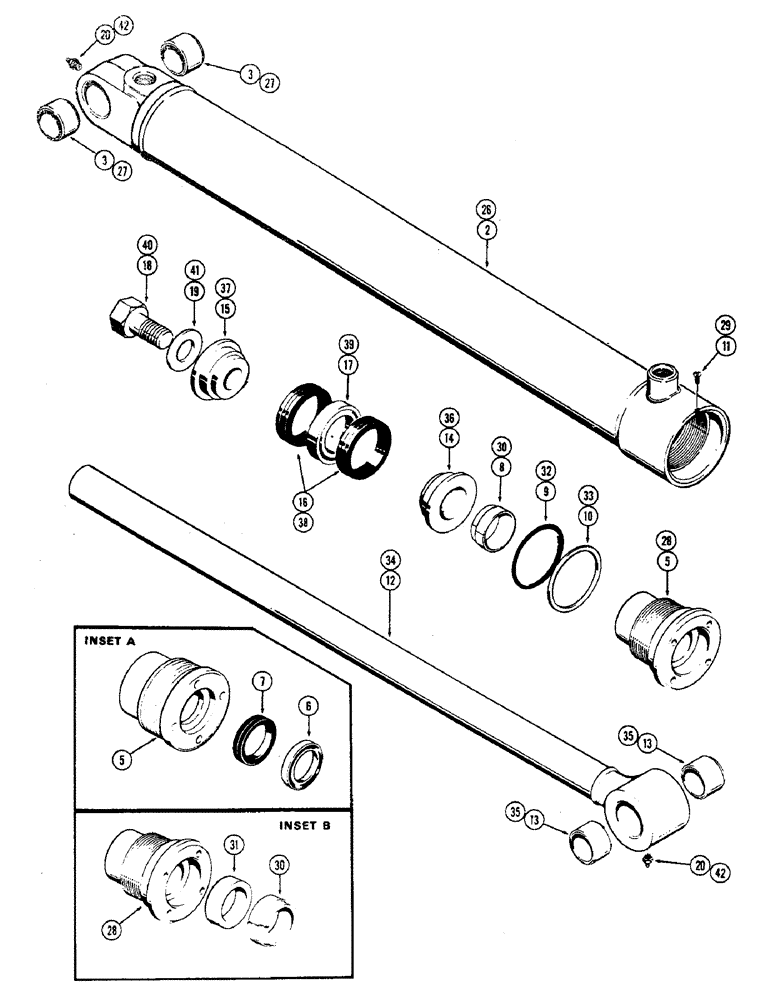

Запчасти Case W7E (232) - G32602 LOADER LIFT CYLINDER, 4" CYLINDER WITH 33" STROKE W/ SOLID OUTER PISTON ROD WIPER (08) - HYDRAULICS

G32602

CYLINDER

ASSY - lift, Includes: Ref. 2 - 20

2шт.

2

G32014

TUBE ASSY - cylinder body, Includes: Ref. 3

1шт.

3

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

- tube

2шт.

G32737

GLAND

ASSY, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - (See inset A)

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2 x 2-1/2 x 5/16")

1шт.

Part of seal kit cylinder repair G32205

1шт.

Part of seal kit cylinder repair G32299

1шт.

7

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 13/32")

1шт.

Part of seal kit cylinder repair G32205

1шт.

Part of seal kit cylinder repair G32299

1шт.

8

D27380

SCRAPER RING

WIPER - piston rod, inner

1шт.

Part of seal kit cylinder repair G32205

1шт.

Part of seal kit cylinder repair G32299

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4 x 4-1/4 x 1/8")

1шт.

Part of seal kit cylinder repair G32205

1шт.

Part of seal kit cylinder repair G32299

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland "O" Ring

1шт.

Part of seal kit cylinder repair G32205

1шт.

Part of seal kit cylinder repair G32299

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

12

G32012

PISTON ROD

ROD ASSY - piston (2" dia.), Includes: Ref. 13

1шт.

13

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

- piston rod

2шт.

14

D28371

PISTON

- split (Rod end)

1шт.

15

D28370

PISTON

- split (Bolt end)

1шт.

16

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSY - piston ("V" type)

2шт.

Part of seal kit cylinder repair G32205

1шт.

Part of seal kit cylinder repair G32299

1шт.

17

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - packing center bearing

1шт.

18

D43994

SCREW,Hex, 1 1/4" - 12 x 3", Gr 8

BOLT - piston ret. (1-1/4 x 3" N.F. hex.)

1шт.

19

G32351

WASHER

- ret. bolt (1-11/32 x 2-1/2 x 9/64")

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

2шт.

G32299

KIT

SEAL KIT - cylinder repair, Incl. Refs. 6, 7, 8, 9, 10, 16, 30, 31, 32, 33 and 38

1шт.

G32016

CYLINDER ASSY - lift (Order G32602), Includes: Ref. 26 - 42

2шт.

26

G32014

TUBE ASSY - cylinder body, G32016 loader lift cylinder with split outer piston rod wiper, Includes: Ref. 27

1шт.

27

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

- tube, G32016 loader lift cylinder with split outer piston rod wiper

2шт.

28

D45071

GLAND

- (Order G32737 assy.) (See inset B), G32016 loader lift cylinder with split outer piston rod wiper

1шт.

29

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping), G32016 loader lift cylinder with split outer piston rod wiper

1шт.

30

D27380

SCRAPER RING

WIPER - piston rod, inner & outer, G32016 loader lift cylinder with split outer piston rod wiper

2шт.

Part of seal kit cylinder repair G32205

1шт.

Part of seal kit cylinder repair G32299

1шт.

31

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 13/32"), G32016 loader lift cylinder with split outer piston rod wiper

1шт.

Part of seal kit cylinder repair G32205

1шт.

Part of seal kit cylinder repair G32299

1шт.

32

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4 x 4-1/4 x 1/8"), G32016 loader lift cylinder with split outer piston rod wiper

1шт.

Part of seal kit cylinder repair G32205

1шт.

Part of seal kit cylinder repair G32299

1шт.

33

D27382

RING

- gland "C" ring back-up, G32016 loader lift cylinder with split outer piston rod wiper

1шт.

Part of seal kit cylinder repair G32205

1шт.

Part of seal kit cylinder repair G32299

1шт.

34

G32012

PISTON ROD

ROD ASSY - piston (2" dia.), G32016 loader lift cylinder with split outer piston rod wiper

1шт.

35

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

- piston rod, G32016 loader lift cylinder with split outer piston rod wiper

2шт.

36

D28371

PISTON

- split (Rod end), G32016 loader lift cylinder with split outer piston rod wiper

1шт.

37

D28370

PISTON

- split (Bolt end), G32016 loader lift cylinder with split outer piston rod wiper

1шт.

38

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSY - piston ("V" type), G32016 loader lift cylinder with split outer piston rod wiper

2шт.

Part of seal kit cylinder repair G32205

1шт.

Part of seal kit cylinder repair G32299

1шт.

39

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - packing center bearing, G32016 loader lift cylinder with split outer piston rod wiper

1шт.

40

D43994

SCREW,Hex, 1 1/4" - 12 x 3", Gr 8

BOLT - piston ret. (1/4 x 3" N.F. hex.), G32016 loader lift cylinder with split outer piston rod wiper

1шт.

41

G32351

WASHER

- ret. bolt (1-11/32 x 2-1/2 x 9/64"), G32016 loader lift cylinder with split outer piston rod wiper

1шт.

42

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.), G32016 loader lift cylinder with split outer piston rod wiper

2шт.

G32025

KIT

SEAL KIT - cylinder repair, Incl. Refs. 6, 7, 8, 9, 10, 16, 30, 31, 32, 33 and 38, G32016 loader lift cylinder with split outer piston rod wiper

1шт.
