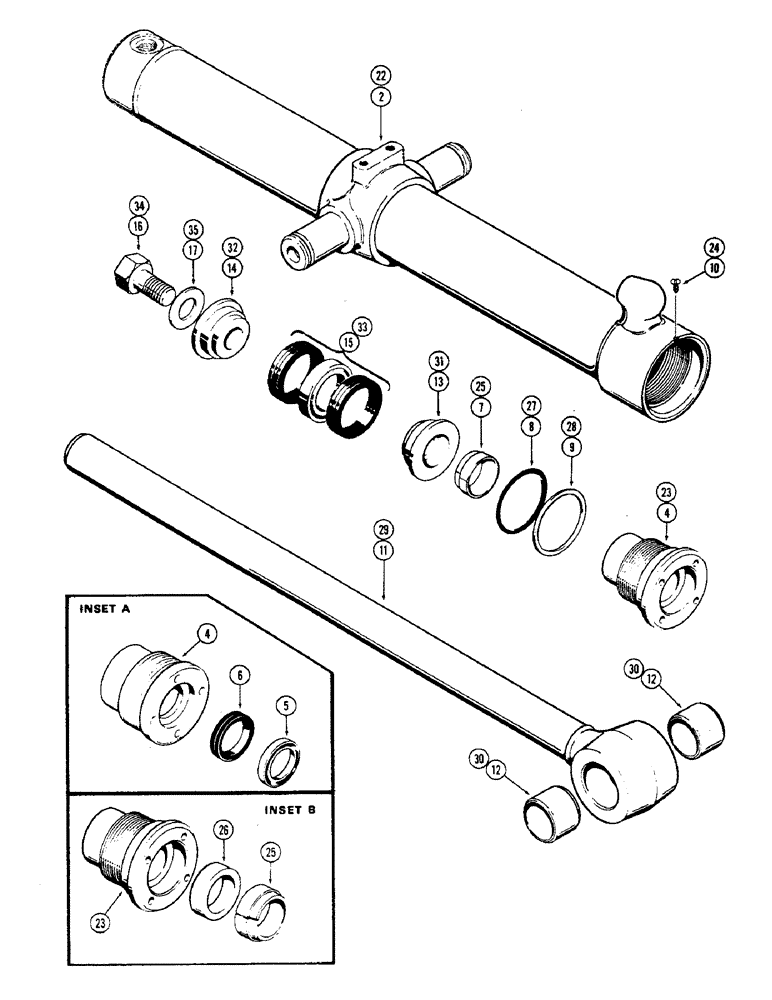

Запчасти Case W7E (235A) - G33461 LOADER TILT CYLINDER, 3" CYLINDER WITH 25-3/4" STROKE W/OUT GLAND I.D. RING (08) - HYDRAULICS

G32482

CYLINDER

ASSY - tilt, Includes: Ref. 2 - 17

2шт.

2

G32006

TUBE,32.75" L

- cylinder body

1шт.

G32734

GLAND

ASSY - (W/out identification ring), Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - (See inset A)

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16")

1шт.

Part of seal kit cylinder repair G32292

1шт.

Part of seal kit cylinder repair G32024

1шт.

6

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 13/32")

1шт.

Part of seal kit cylinder repair G32292

1шт.

Part of seal kit cylinder repair G32024

1шт.

7

D27706

WIPER SEAL

WIPER - piston rod, inner

1шт.

Part of seal kit cylinder repair G32292

1шт.

Part of seal kit cylinder repair G32024

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8")

1шт.

Part of seal kit cylinder repair G32292

1шт.

Part of seal kit cylinder repair G32024

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of seal kit cylinder repair G32292

1шт.

Part of seal kit cylinder repair G32024

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

11

G32026

ROD

ASSY - piston (1-1/2" dia.), Includes: Ref. 12

1шт.

12

D34109

BUSHING

- piston rod

2шт.

13

D28365

PISTON

- split (Rod end)

1шт.

14

D28366

PISTON

- split (Bolt end)

1шт.

15

G33151

PACKING

ASSY - piston (Replaces D28374)

1шт.

Part of seal kit cylinder repair G32292

1шт.

Part of seal kit cylinder repair G32024

1шт.

16

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston ret. (3/4 x 2-1/2" N.F. hex.)

1шт.

17

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- ret. bolt (7/8 x 1-3/8 x 9/64")

1шт.

G32292

KIT

SEAL KIT - cylinder repair, Incl. Refs. 5, 6, 7, 8, 9, 15, 25, 26, 27, 28 and 33

1шт.

G32007

CYLINDER ASSY - tilt (Order G32482), Includes: Ref. 22 - 35

2шт.

22

G32006

TUBE,32.75" L

- cylinder body, G32007 loader tilt cylinder with split outer piston rod wiper

1шт.

23

D45067

GLAND

- (Order G32734 assy.) (See inset B), G32007 loader tilt cylinder with split outer piston rod wiper

1шт.

24

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping), G32007 loader tilt cylinder with split outer piston rod wiper

1шт.

25

D27706

WIPER SEAL

WIPER - piston rod, inner & outer, G32007 loader tilt cylinder with split outer piston rod wiper

2шт.

Part of seal kit cylinder repair G32292

1шт.

Part of seal kit cylinder repair G32024

1шт.

26

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 13/32"), G32007 loader tilt cylinder with split outer piston rod wiper

1шт.

Part of seal kit cylinder repair G32292

1шт.

Part of seal kit cylinder repair G32024

1шт.

27

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8"), G32007 loader tilt cylinder with split outer piston rod wiper

1шт.

Part of seal kit cylinder repair G32292

1шт.

Part of seal kit cylinder repair G32024

1шт.

28

D36093

WASHER

RING - gland "O" ring back-up, G32007 loader tilt cylinder with split outer piston rod wiper

1шт.

Part of seal kit cylinder repair G32292

1шт.

Part of seal kit cylinder repair G32024

1шт.

29

G32026

ROD

ASSY - piston (1-1/2" dia.), G32007 loader tilt cylinder with split outer piston rod wiper, Includes: Ref. 30

1шт.

30

D34109

BUSHING

- piston rod, G32007 loader tilt cylinder with split outer piston rod wiper

2шт.

31

D28365

PISTON

- split (Rod end), G32007 loader tilt cylinder with split outer piston rod wiper

1шт.

32

D28366

PISTON

- split (Bolt end), G32007 loader tilt cylinder with split outer piston rod wiper

1шт.

33

G33151

PACKING

ASSY - piston (Replaces D28374), G32007 loader tilt cylinder with split outer piston rod wiper

1шт.

Part of seal kit cylinder repair G32292

1шт.

Part of seal kit cylinder repair G32024

1шт.

34

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston ret. (3/4 x 2-1/2" N.F. hex.), G32007 loader tilt cylinder with split outer piston rod wiper

1шт.

35

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- ret. bolt, G32007 loader tilt cylinder with split outer piston rod wiper

1шт.

G32024

SEAL

KIT - cylinder repair, Incl. Refs. 5, 6, 7, 8, 9, 15, 25, 26, 27, 28 and 33, G32007 loader tilt cylinder with split outer piston rod wiper

1шт.
