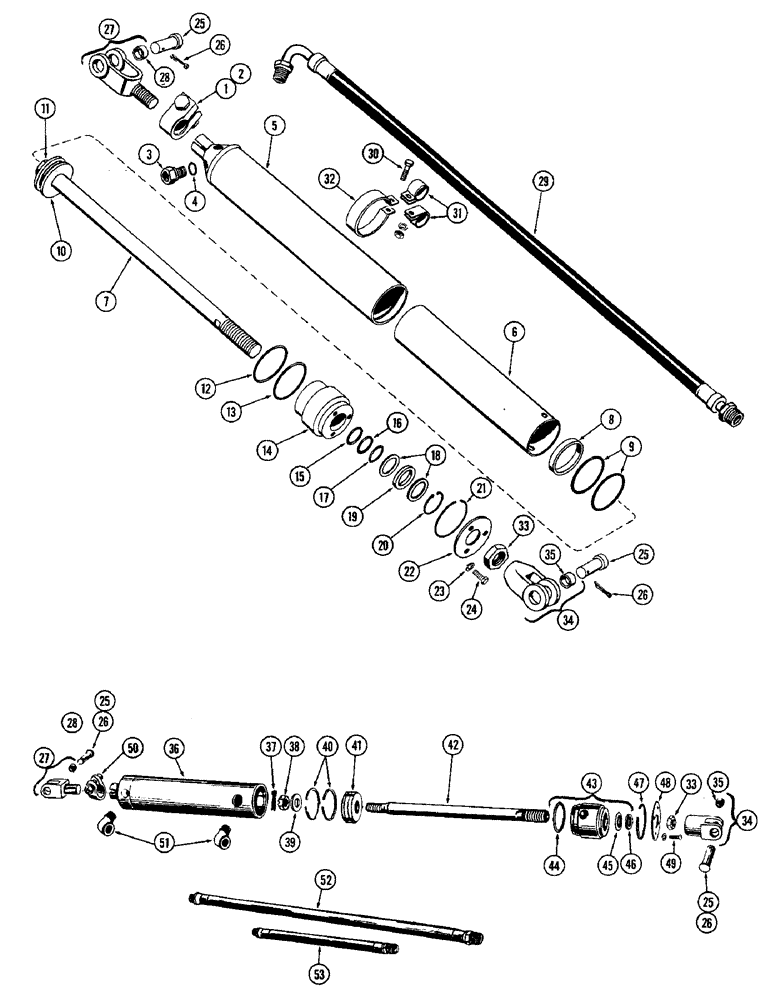

Запчасти Case W9A (118) - A15844 STEERING CYLINDER, USED LOADER SERIAL NO. 8164181 AND AFTER (05) - STEERING

A15844

CYLINDER ASSY - power steering

1шт.

1

A16638

CLAMP

ASSY - strg. cylinder

1шт.

2

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

- 1/2" x 2-1/4" N.F., hex

1шт.

3

A16641

ADAPTER

ASSY - strg. cylinder

2шт.

4

A16640

X

"O" RING - adapter

1шт.

5

NSS

NOT SOLD SEPARAT

HEAD & TUBE ASSY - strg. cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

TUBE - cylinder, inner

1шт.

7

A16630

ROD ASSY - strg. cylinder

1шт.

8

A16629

SEAL

SEAL - piston ring

1шт.

9

O10370AB

RING

- piston

2шт.

10

NSS

NOT SOLD SEPARAT

PISTON - rod, cyl. (Order A16630)

1шт.

11

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

1шт.

12

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

"O" RING - rod brg.

1шт.

13

A16633

RING

- back-up, rod brg

1шт.

14

A16631

BEARING - gland, cyl. rod

1шт.

15

O8377AB

X

"O" RING - brg. gland

1шт.

16

A16635

GASKET

RING - back-up, brg. gland

1шт.

17

A16636

RING

- seal, brg. gland

1шт.

18

A16637

WASHER

RING - back-up, brg. gland

2шт.

19

A7090

OIL SEAL

SEAL - oil, brg. gland

1шт.

20

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, seal

1шт.

21

A16634

RING

- lock, brg. retainer

1шт.

22

A16632

LARGE PLATE

PLATE - end, strg. cylinder

1шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

24

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

3шт.

25

A12025

PIN - yoke, cyl. mtg.

2шт.

26

132-17

COTTER PIN,1/16" x 2"

PIN - cotter, 5/32" x 1-1/4"

2шт.

27

A12021

YOKE ASSY - cyl. mtg., male

1шт.

28

A12019

BUSHING

- yoke

2шт.

29

A15845

HOSE ASSY.

HOSE -, Serial Range: valve-cylinder

2шт.

30

14-428

BOLT (MACHINE),Hex, 1/4" - 28 x 1-3/4", Gr 5

BOLT - 1/4" x 1-3/4" N.F., hex

1шт.

31

A15847

CLIP - hose

2шт.

32

A15846

CLAMP - hose clip

1шт.

33

O10302AB

NUT - jam, end yoke

1шт.

34

A12023

YOKE ASSY - cyl. mtg., female

1шт.

35

A12019

BUSHING

- yoke

2шт.

A4745AA

CYLINDER ASSY - power steering (Order cylinder A15844 when replacing)

1шт.

36

A7089

SHIELD

HEAD & TUBE ASSY - strg. cyl., A4745AA steering cylinder used prior to loader serial no. 8164181

1шт.

37

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), , A4745AA steering cylinder used prior to loader serial no. 8164181 1/8" x 1 1/8"

1шт.

38

25-2310

NUT

- castle, 5/8" N.F. hex, A4745AA steering cylinder used prior to loader serial no. 8164181

1шт.

39

O10371AB

WASHER - piston rod, A4745AA steering cylinder used prior to loader serial no. 8164181

1шт.

40

O10370AB

RING

- piston, A4745AA steering cylinder used prior to loader serial no. 8164181

2шт.

41

O10369AB

PISTON - cyl. rod, A4745AA steering cylinder used prior to loader serial no. 8164181

1шт.

42

O10368AB

ROD - piston, A4745AA steering cylinder used prior to loader serial no. 8164181

1шт.

43

A7091

COTTER PIN

BEARING ASSY - gland, cyl., A4745AA steering cylinder used prior to loader serial no. 8164181

1шт.

44

O3523CK

X

"O" RING - bearing and seal, A4745AA steering cylinder used prior to loader serial no. 8164181

1шт.

45

O8377AB

X

"O" RING - piston rod, A4745AA steering cylinder used prior to loader serial no. 8164181

1шт.

46

A7090

OIL SEAL

SEAL - oil, piston rod, A4745AA steering cylinder used prior to loader serial no. 8164181

1шт.

47

O10378AB

RING - lock, bearing and seal, A4745AA steering cylinder used prior to loader serial no. 8164181

1шт.

48

O10379AB

PLATE - end, cylinder, A4745AA steering cylinder used prior to loader serial no. 8164181

1шт.

49

75-410

SCREW,Rd, 1/4" - 20 x 5/8"

- mach., 1/4" x 5/8" N.C., rd. hd., A4745AA steering cylinder used prior to loader serial no. 8164181

4шт.

50

O10380AB

CLAMP ASSY - strg. cyl., A4745AA steering cylinder used prior to loader serial no. 8164181

1шт.

51

221-1413

ELBOW,90 Degree, 3/8"-18, NPT

- street, 3/8" x 90 degrees, A4745AA steering cylinder used prior to loader serial no. 8164181

2шт.

52

A12027

HOSE - valve to cylinder, rear, A4745AA steering cylinder used prior to loader serial no. 8164181

1шт.

53

A12026

HOSE

- valve to cyl., front, A4745AA steering cylinder used prior to loader serial no. 8164181

1шт.
