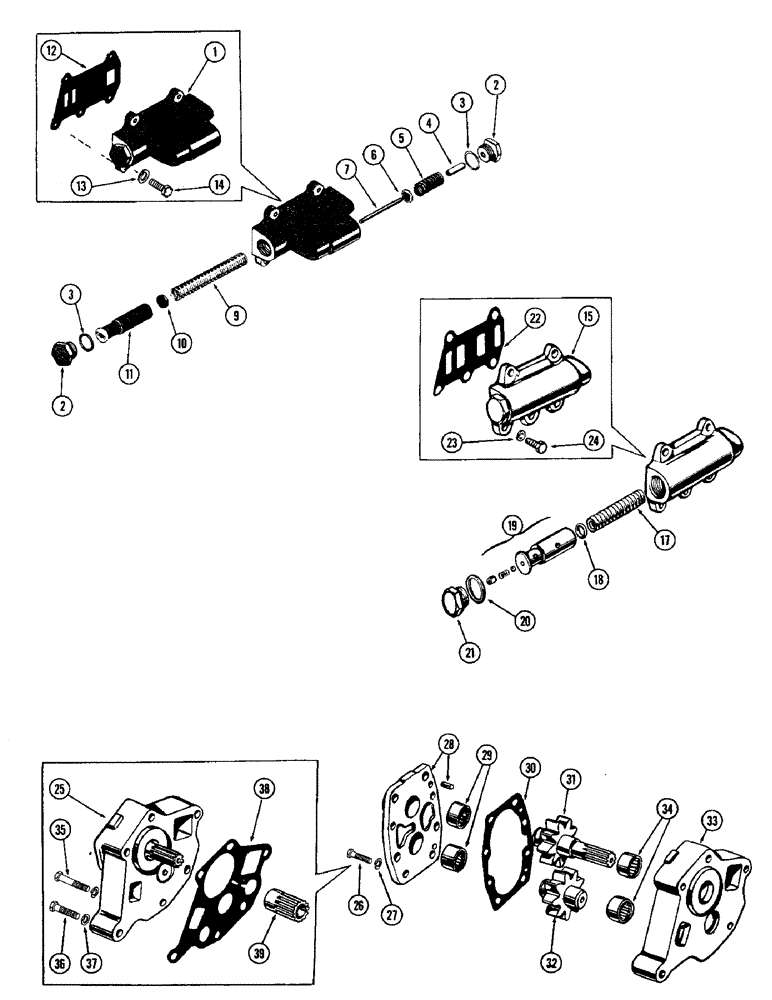

Запчасти Case W9A (100) - A16780 PRESSURE REGULATOR VALVE, USED TRANS. SN. 21354 & AFTER (06) - POWER TRAIN

1

A16780

VALVE ASSY - pressure regulator

1шт.

2

A12701

PLUG

- main, regulator valve

2шт.

3

A12651

GASKET - plug, valve

2шт.

4

A16986

TUBE - guide, spring

1шт.

5

A16985

VALVE SPRING

SPRING - relief, pressure

1шт.

6

A16984

LOCK VALVE

VALVE - relief, pressure

1шт.

7

A16983

PIN - guide, relief valve

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - regulator valve (Order A16780)

1шт.

9

A16622

SPRING - pressure, regulator

1шт.

10

A15152

SHIM

- main valve

1шт.

11

A16778

VALVE

SPOOL - main, regulator

1шт.

12

A12720

GASKET

- regulator valve body

1шт.

13

92-6

LOCK WASHER,3/8"

5шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

5шт.

15

A12817

VALVE ASSY - pressure regulator (Use A16780), A12817 pressure regulator valve used prior to transmission serial no. 21354

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - regulator valve (Order A16780), A12817 pressure regulator valve used prior to transmission serial no. 21354

1шт.

17

A16622

SPRING - pressure, regulator, A12817 pressure regulator valve used prior to transmission serial no. 21354

1шт.

18

A15152

SHIM

- regulator valve, A12817 pressure regulator valve used prior to transmission serial no. 21354

1шт.

19

A15969

VALVE

ASSY - relief valve, A12817 pressure regulator valve used prior to transmission serial no. 21354

1шт.

20

A12651

GASKET - plug, regulator, A12817 pressure regulator valve used prior to transmission serial no. 21354

1шт.

21

A12701

PLUG

- valve, A12817 pressure regulator valve used prior to transmission serial no. 21354

1шт.

22

A12720

GASKET

- regulator valve body, A12817 pressure regulator valve used prior to transmission serial no. 21354

1шт.

23

92-6

LOCK WASHER,3/8"

A12817 pressure regulator valve used prior to transmission serial no. 21354 3/8"

5шт.

24

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

A12817 pressure regulator valve used prior to transmission S/N 21354 Hex, 3/8"-16 x 1 1/4", G5, Full Thd

5шт.

25

A12713

PUMP

ASSY - charging, oil, A12713 oil charging pump

1шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

A12713 oil charging pump Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

27

92-6

LOCK WASHER,3/8"

A12713 oil charging pump 3/8"

4шт.

28

A12706

COVER ASSY - pump body, w/pin, A12713 oil charging pump

1шт.

29

A12652

NEEDLE BEARING,1" ID x 1.251" OD x 0.75"

BEARING - pump cover (Needle), A12713 oil charging pump

2шт.

30

A12752

RIGID TUBE

GASKET - pump cover, A12713 oil charging pump

1шт.

31

A12711

GEAR - drive, pump, A12713 oil charging pump

1шт.

32

A12710

GEAR - idler, pump, A12713 oil charging pump

1шт.

33

A12751

TYRE/TIRE

BODY ASSY - charging pump, A12713 oil charging pump

1шт.

34

A12652

NEEDLE BEARING,1" ID x 1.251" OD x 0.75"

BEARING - body, pump (Needle), A12713 oil charging pump

2шт.

35

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8" x 2-3/4" N.C., hex, A12713 oil charging pump

4шт.

36

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

A12713 oil charging pump Hex, 3/8"-16 x 2 1/4", G5

2шт.

37

92-6

LOCK WASHER,3/8"

A12713 oil charging pump 3/8"

6шт.

38

A12696

GASKET

- charging pump, A12713 oil charging pump

1шт.

39

A12697

COUPLING

- pump drive, A12713 oil charging pump

1шт.
