(7-12) - BRAKE PEDAL AND VALVE ASSEMBLY

Запчасти Case 1085C (7-12) - BRAKE PEDAL AND VALVE ASSEMBLY (07) - BRAKES

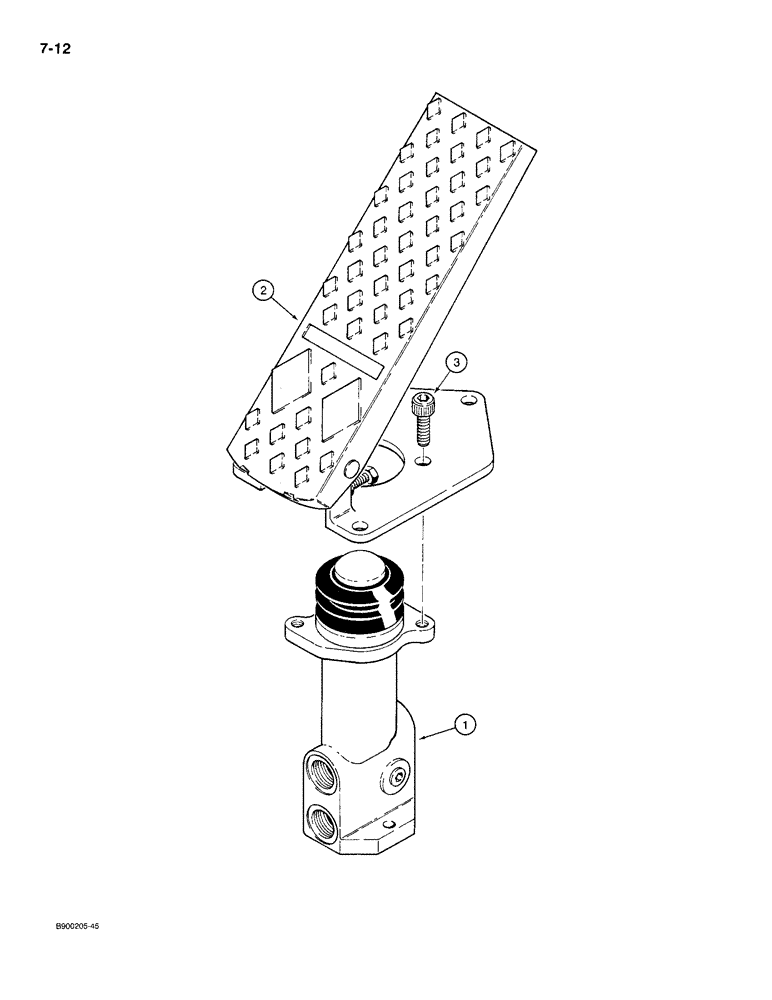

Схема запчастей Case 1085C - (7-12) - BRAKE PEDAL AND VALVE ASSEMBLY (07) - BRAKES
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1978110C1

VALVE

ASSEMBLY - brake foot pedal, Includes: Ref. 1 - 3

1шт.

1

1986578C1

VALVE

- brake, component parts are not serviced separately

1шт.

2

1986579C1

PEDAL ASSY.

PEDAL - brake, component parts are not serviced separately

1шт.

3

864-8018

HEX SOC SCREW,M8 x 18mm, Cl 8.8

BOLT - hex socket, 8 mm - 1.25 x 18 mm

2шт.
