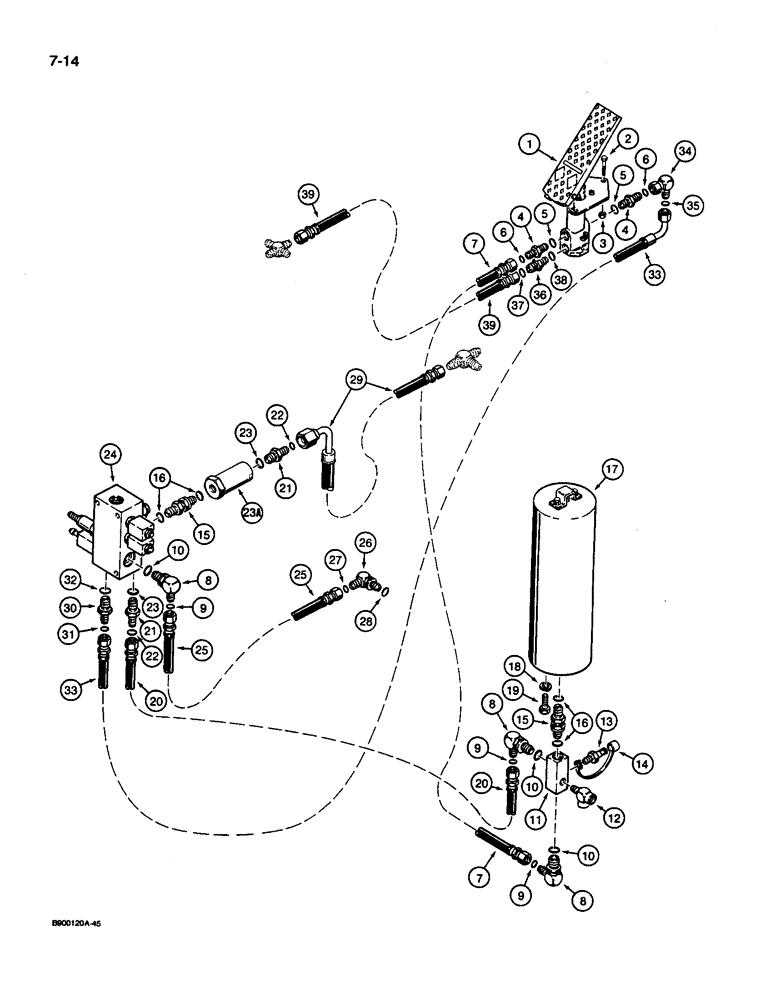

Запчасти Case 1085C (7-14) - UPPER BRAKE SYSTEM, BRAKE VALVE TO PILOT MANIFOLD VALVE AND SWIVEL (07) - BRAKES

1

1978110C1

VALVE

ASSEMBLY - brake, parts list Figure: 7-12

1шт.

3

86625061

NUT,1/4"-20, GB

NUT - hex self-locking, 1/4 inch NC

3шт.

4

201-111

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

ADAPTER - straight, 9/16-18 inch face seal x O-ring boss, Includes: Ref. 5 and 6

2шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

6

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face seal end -011, 90 Duro, .301" ID x .070" Thk

1шт.

7

S243726

HOSE

- 4110 mm long, brake valve to manifold at accumulator

1шт.

8

201-325

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

- 90 degree adj, 9/16-18 face x 3/4-16 inch O-ring, Includes: Ref. 9 and 10

3шт.

9

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face seal end -011, 90 Duro, .301" ID x .070" Thk

1шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

11

S517675

MANIFOLD

- brake, to accumulator and pilot manifold valve

1шт.

12

217-1062

TEE,1/8" - 18 Female x 1/4" - 18 Male Run

- 1/4 inch PT female branch x female x male PT

1шт.

S243718

COUPLING

ASSEMBLY - quick disconnect, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

COUPLING - quick disconnect

1шт.

14

S301201

CAP

- dust, Aero Quip is stamped on coupling, if used

1шт.

14

H434163

DUST CAP

CAP - dust, PD343 is stamped on coupling, if used

1шт.

15

S118719

FITTING

CONNECTOR - straight, 3/4-16 O-ring boss, Includes: Ref. 16

2шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

17

1978111C1

TANK

ACCUMULATOR ASSEMBLY - brake, parts list Figure: 7-18

1шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

19

414-814

BOLT,Hex, 1/2" - 20 x 7/8", Gr 5

3шт.

20

S243435

HOSE

- 1950 mm long, manifold to pilot manifold valve

1шт.

21

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

ADAPTER - straight, 11/16-16 face seal x 3/4-16 inch O-ring, Includes: Ref. 22 and 23

2шт.

22

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face seal end -012, 90 Duro, .364" ID x .070" Thk

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

23a

S243815

FILTER

- 25 micron, to port "A" of pilot manifold valve

1шт.

24

REF

INSTRUCTION

VALVE ASSEMBLY - pilot manifold, see Figure: 8-41 for correct valve

1шт.

25

S243655

HOSE

- 1600 mm long, pilot manifold valve to upper swivel

1шт.

26

201-331

ELBOW,45 Degree, 9/16"-18 x 7/16"-20. Adj, ORFS

45°, 9/16"-18 x 7/16"-20. Adj, ORFS, Boss, at upper swivel port No. 5, Includes Ref. 27 and 28

1шт.

27

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face seal end -011, 90 Duro, .301" ID x .070" Thk

1шт.

28

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Boss end

1шт.

29

S243659

HOSE

- 1050 mm long, see Figure: 5-10, item 22 tee for continuation of system

1шт.

30

201-119

FITTING,9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

ADAPTER - straight, 9/16-18 face seal x 3/4-16 inch O-ring, Includes: Ref. 31 and 32

1шт.

31

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face seal end -011, 90 Duro, .301" ID x .070" Thk

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

33

S243727

HOSE

- 2700 mm long, pilot manifold valve to brake valve

1шт.

34

201-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

- 90 degree, 9/16-18 inch swivel x O-ring face seal, Includes: Ref. 35

1шт.

35

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face seal end -011, 90 Duro, .301" ID x .070" Thk

1шт.

36

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Adapter - straight, Incl Ref. 37 and 38 11/16"-16 ORFS x 9/16"-18 ORB

1шт.

37

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face seal end -012, 90 Duro, .364" ID x .070" Thk

1шт.

38

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

39

S243728

HOSE

- 630 mm long, see Figure: 8-108, item 5 cross for continuation of the system

1шт.

2

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

3шт.
