(55.512.BQ[02]) - INSTRUMENT CLUSTER AND KEYED IGNITION

Запчасти Case TR270 (55.512.BQ[02]) - INSTRUMENT CLUSTER AND KEYED IGNITION (55) - ELECTRICAL SYSTEMS

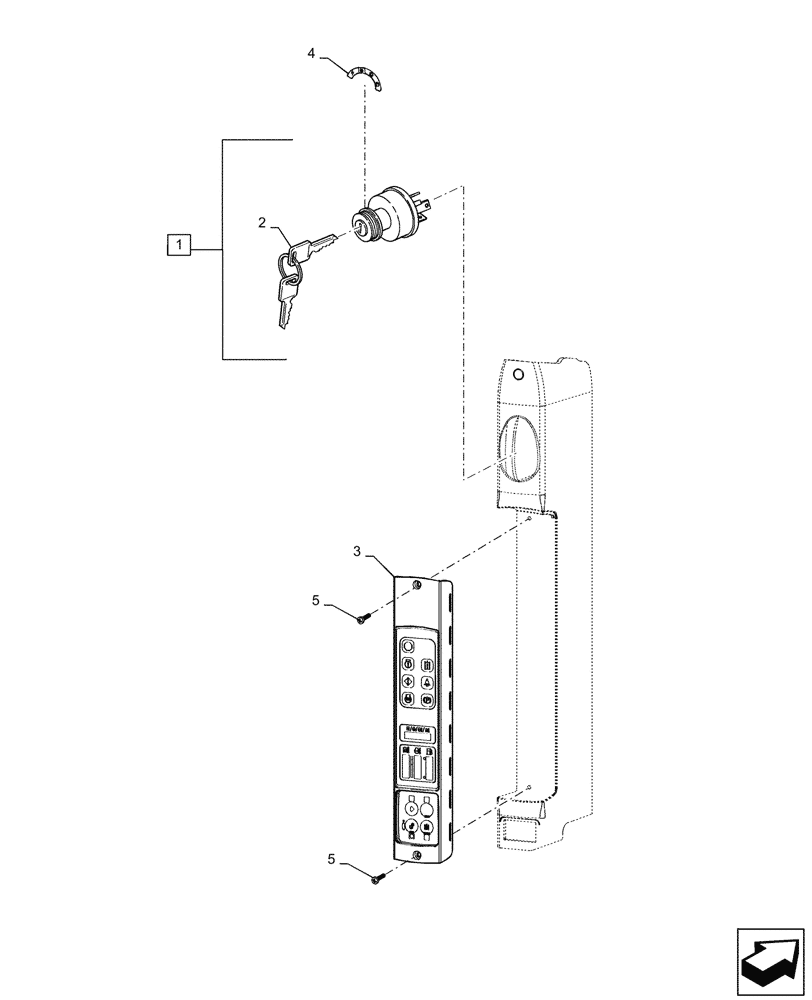

Схема запчастей Case TR270 - (55.512.BQ[02]) - INSTRUMENT CLUSTER AND KEYED IGNITION (55) - ELECTRICAL SYSTEMS
5
1
4
3
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

282775A1

IGNITION SWITCH

W/ Padded Keys, Incl 2

1шт.

2

1964831C2

IGNITION KEY

Ignition Switch and Door, Padded, Case Logo

1шт.

3

47522657

INSTRUMENT CLUSTER

Standard

1шт.

4

84377886

DECAL

Keyed Ignition Switch

1шт.

5

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

Instrument Cluster Mounting

2шт.

Выбрано товаров: 5
