(02.021[2988867000]) - MOUNTING AXLE PISTON MOTOR TO REAR AXLE SELF-LOCKING

Запчасти Case 221E (02.021[2988867000]) - MOUNTING AXLE PISTON MOTOR TO REAR AXLE SELF-LOCKING (27) - REAR AXLE SYSTEM

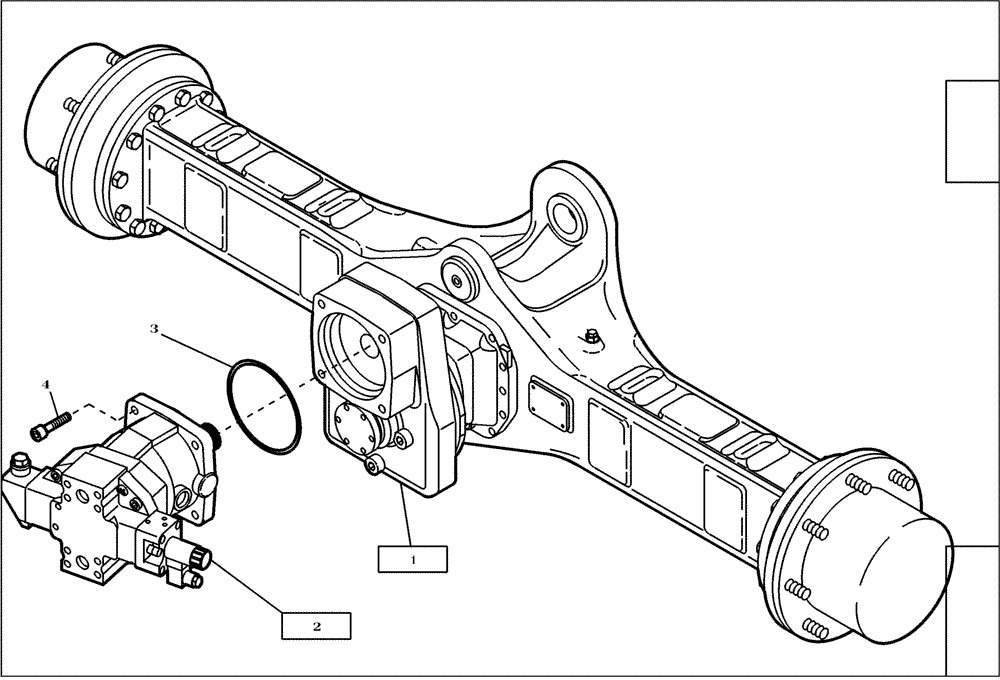

Схема запчастей Case 221E - (02.021[2988867000]) - MOUNTING AXLE PISTON MOTOR TO REAR AXLE SELF-LOCKING (27) - REAR AXLE SYSTEM
1
3
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4552466

REAR AXLE

See Fig 02.023

1шт.

2

4550998

HYDRAULIC MOTOR

See Fig 22.120

1шт.

3

2978362

O-RING

134 x 3 mm

1шт.

4

14422221

HEX SOC SCREW,M12 x 40mm, Cl 8.8

Replaces 864-12040

4шт.

Выбрано товаров: 4
