(073/02[03]) - 20 KM/H REAR SELF-LOCKING AXLE :HYDRAULIC MOTOR ASSEMBLY

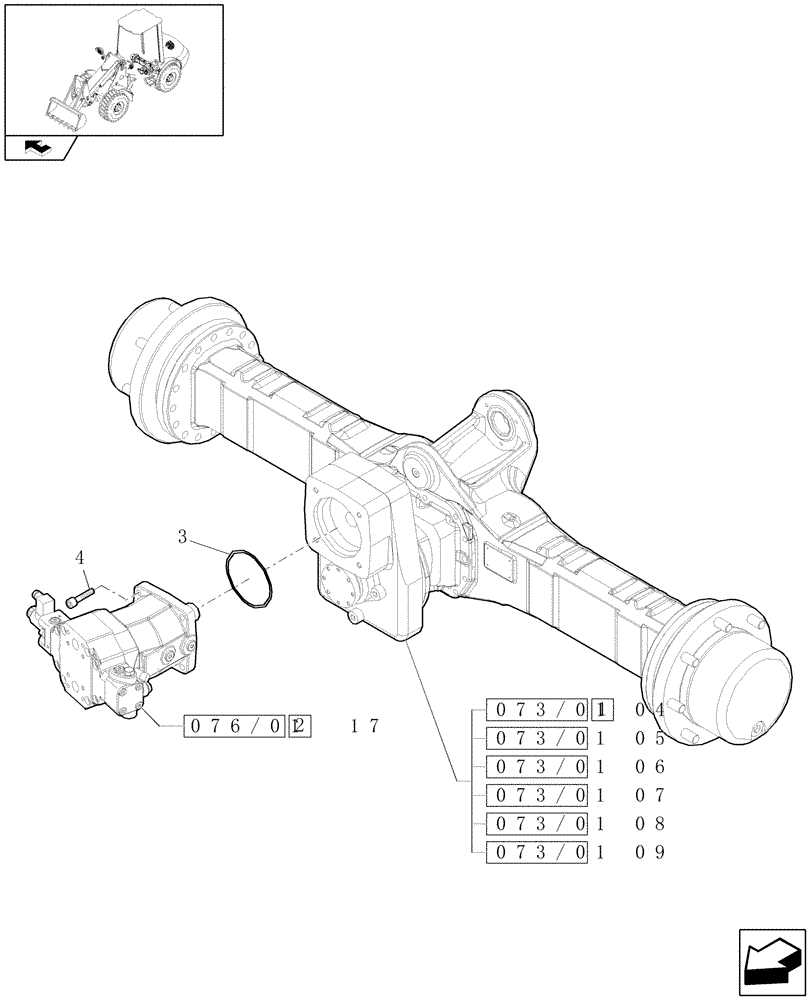

Запчасти Case 221E (073/02[03]) - 20 KM/H REAR SELF-LOCKING AXLE :HYDRAULIC MOTOR ASSEMBLY (05) - REAR AXLE

Схема запчастей Case 221E - (073/02[03]) - 20 KM/H REAR SELF-LOCKING AXLE :HYDRAULIC MOTOR ASSEMBLY (05) - REAR AXLE
3
076/01 17
4
home
073/01 09
073/01 08
073/01 07
073/01 06
073/01 05
073/01 04
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4552466

REAR AXLE

Assy

1шт.

2

87667149

HYDROSTATIC MOTOR

Assy

1шт.

3

2978362

O-RING

1шт.

4

1558713

SCREW,Hex Skt, M12 x 40mm, Cl 8.8

4шт.
