(89.800.AA[35]) - VAR - 734630 - ATTACHMENT, BUCKET (1.3M³ X 2050MM)

Запчасти Case 21F (89.800.AA[35]) - VAR - 734630 - ATTACHMENT, BUCKET (1.3M³ X 2050MM) (89) - TOOLS

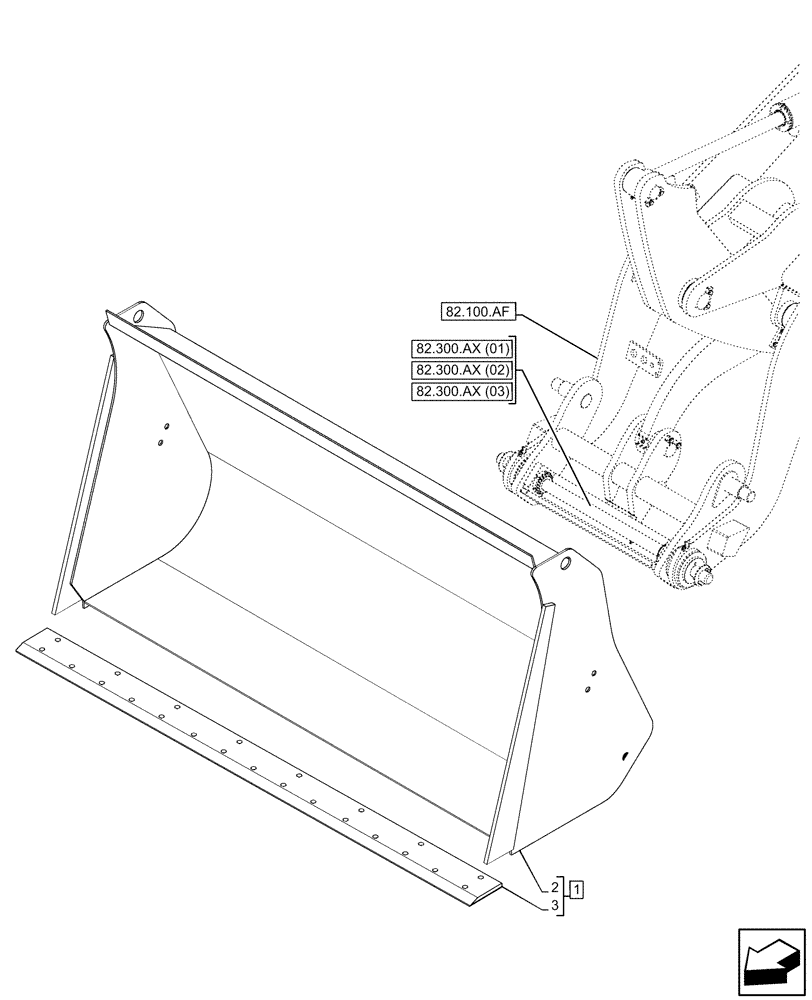

Схема запчастей Case 21F - (89.800.AA[35]) - VAR - 734630 - ATTACHMENT, BUCKET (1.3M³ X 2050MM) (89) - TOOLS
1
82.100.af
82.300.ax (03)
3
82.300.ax (01)
2
82.300.ax (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47639731

BUCKET

Bucket LM 1.0M3x2050mm for SSL Coupler, ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Bucket, Incl in 1

1шт.

3

47606743

CUTTING EDGE

2050mm, 22 Holes for fixing Screws

1шт.
