(9-088) - 6.5 M (21-1/2 FOOT) MAST FOR 586E, MODELS WITH SINGLE LIFT CYLINDER

Запчасти Case 586E (9-088) - 6.5 M (21-1/2 FOOT) MAST FOR 586E, MODELS WITH SINGLE LIFT CYLINDER (09) - CHASSIS/ATTACHMENTS

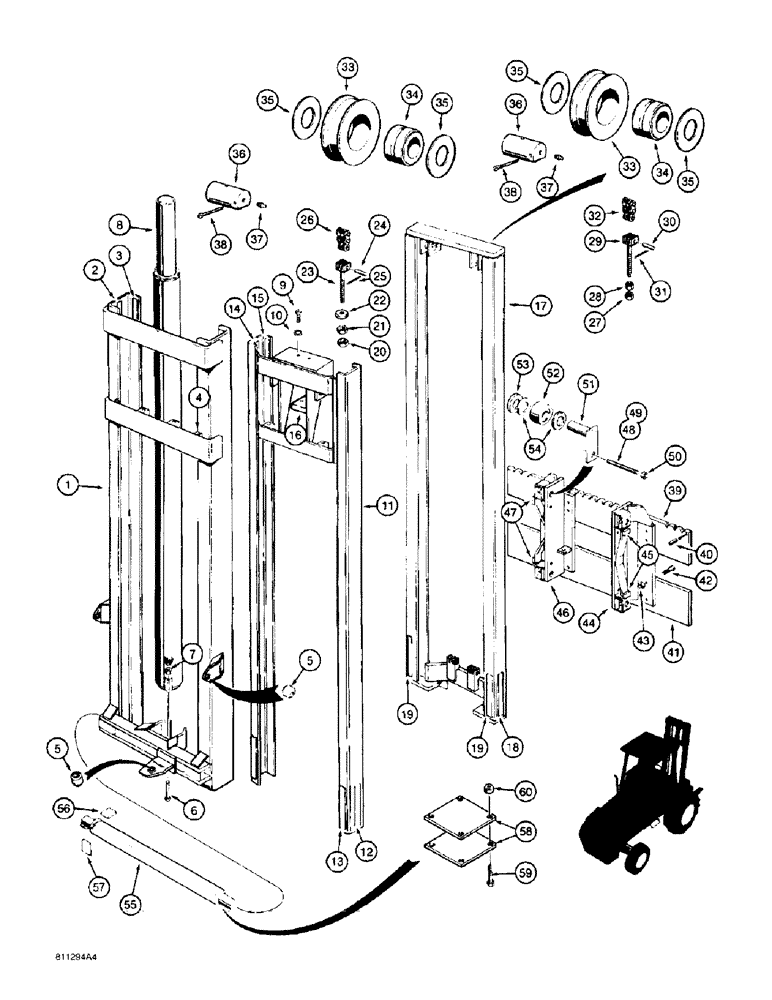

Схема запчастей Case 586E - (9-088) - 6.5 M (21-1/2 FOOT) MAST FOR 586E, MODELS WITH SINGLE LIFT CYLINDER (09) - CHASSIS/ATTACHMENTS
33
34
45
35
31
19
48
44
36
19
4
17
34
35
30
57
5
15
27
16
23
3
12
38
50
49
13
53
22
35
43
35
28
32
38
37
38
18
47
21
60
26
56
40
54
7
37
20
8
11
1
10
33
52
25
58
59
9
42
41
46
2
6
24
55
51
14
5
39
29
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

D122196

MAST ASSEMBLY

- forklift, 6.5 m (21-1/2 foot), machinery Ref., order from machinery price list, Includes: Ref. 1 - 32 and Ref. 33 - 60 on Figure 9-90

1шт.

For replacement, call C.A.M., and provide the following information: model number, machine and mast serial numbers, and mast specifics (number of lift cylinders, travel height, and degree of tilt), before ordering.

1шт.

1

N7694

FRAME

ASSEMBLY - mast, outer, Includes: Ref. 2 - 5

1шт.

For replacement, call C.A.M., and provide the following information: model number, machine and mast serial numbers, and mast specifics (number of lift cylinders, travel height, and degree of tilt), before ordering.

1шт.

2

D55411

STRIP

PLATE - wear, 3 (1/8) thick x 152 mm (6 inch) long

2шт.

3

D55409

STRIP

PLATE - wear, 5 (3/16) thick x 152 mm (6 inch) long

4шт.

4

D47895

WEAR PAD

PLATE - wear, 5 (3/16) thick x 114 mm (4-1/2 inch) long

2шт.

5

D40843

BUSHING,25.4mm ID x 38.1mm OD x 24.38mm L

- self-aligning

3шт.

6

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

- hex, 1/2 NC x 5-1/2 inch

1шт.

7

231-1408

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

1шт.

8

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, parts list Figure 8-34

1шт.

9

9406829

HEX SOC SCREW,1/2" - 13 x 3 1/2"

BOLT - hex socket, 1/2 NC x 3-1/2 inch

2шт.

10

493-41052

LOCK WASHER,Ext Tooth, 1/2"

WASHER - external tooth lock, 1/2 inch

2шт.

11

N7696

FRAME

ASSEMBLY - mast, center, Includes: Ref. 12 - 15

1шт.

For replacement, call C.A.M., and provide the following information: model number, machine and mast serial numbers, and mast specifics (number of lift cylinders, travel height, and degree of tilt), before ordering.

1шт.

12

D55412

STRIP

PLATE - wear, 3 (1/8) thick x 254 mm (10 inch) long

2шт.

13

D55410

STRIP

PLATE - wear, 5 (3/16) thick x 254 mm (10 inch) long

4шт.

14

D55411

STRIP

PLATE - wear, 3 (1/8) thick x 152 mm (6 inch) long

2шт.

15

D55409

STRIP

PLATE - wear, 5 (3/16) thick x 152 mm (6 inch) long

4шт.

16

N7697

PLATE

- spacer

1шт.

17

N7695

FRAME

ASSEMBLY - mast, inner, Includes: Ref. 18 and 19

1шт.

For replacement, call C.A.M., and provide the following information: model number, machine and mast serial numbers, and mast specifics (number of lift cylinders, travel height, and degree of tilt), before ordering.

1шт.

18

D32555

PAD

PLATE - wear, 3 (1/8) thick x 127 mm (5 inch) long

2шт.

19

D27365

PAD

PLATE - wear, 5 (3/16) thick x 254 mm (10 inch) long

4шт.

20

131-1333

LOCK NUT,Jam, 1"-14

NUT - hex, jam, 1-14 inch

2шт.

21

131-1174

LOCK NUT,1 1/4"-14, GA

NUT - hex, self-locking, 1-14 inch

2шт.

22

N7702

WASHER

- special

2шт.

23

N7701

ANCHOR

BOLT - special, chain anchor, 1 inch NF

2шт.

24

N7700

PIN

- chain connecting

4шт.

25

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

8шт.

26

N7699

CHAIN (CE)

CHAIN - leaf, 109 links

2шт.

27

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NF

4шт.

28

D82886

NUT

- hex, special, 3/4 inch NF

4шт.

29

D82894

ANCHOR

BOLT - special, chain mounting eye

4шт.

30

D82895

PIN

- connecting

4шт.

31

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

8шт.

32

N7693

CHAIN

CHAIN - leaf, 113 links

2шт.
