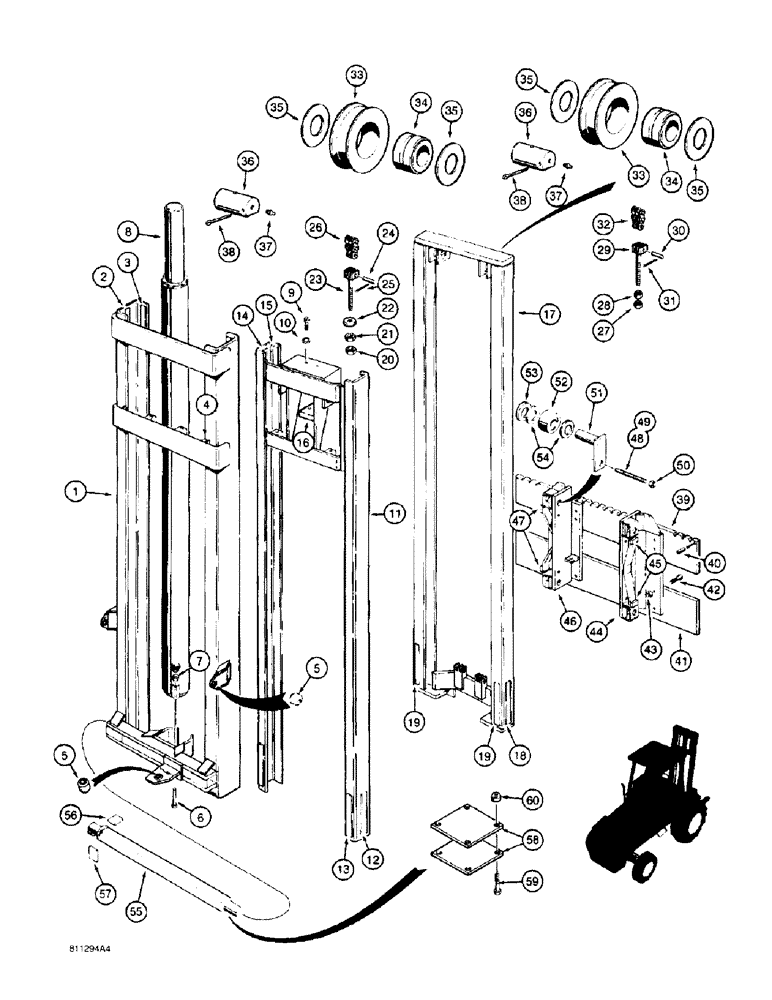

Запчасти Case 586E (9-090) - 6.5 M (21-1/2 FOOT) MAST FOR 586E, MODELS WITH SINGLE LIFT CYLINDER (09) - CHASSIS/ATTACHMENTS

D122196

MAST ASSEMBLY

- forklift, 6.5 m (21-1/2 foot), Includes: Ref. 33 - 60 and Ref. 1 - 32 on Figure 9-88

1шт.

33

230001A1

SHEAVE

- chain guide (Replaces sheave D82891)

4шт.

34

D82893

ROLLER BEARING,44.45mm ID x 76.2mm OD x 44.7mm W

BEARING - roller, 45 (1-3/4) x 76 (3) x 45 mm (1-3/4 inch) wide

4шт.

35

D36582

WASHER

- thrust, bearing

8шт.

36

N7698

PIN,44.44mm OD x 79.37mm L

- pivot

4шт.

37

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32", Sheave pin

4шт.

38

432-1240

COTTER PIN,3/16" x 2 1/2"

3/16" x 2 1/2"

4шт.

39

N7692

PLATE

- backing, upper

1шт.

40

38-32832

PIN,7/16" x 2", Coiled

2шт.

41

N7691

PLATE

- backing, lower

1шт.

42

461-35036

HEX SOC SCREW,1/2"-13 x 2 1/4"

BOLT - hex socket, 1/2 NC x 2-1/4 inch

16шт.

43

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

16шт.

44

N7703

SUPPORT ASSY.

CARRIAGE ASSEMBLY - mast, right-hand, Includes: Ref. 45

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

45

D55407

WEAR PAD

PLATE - wear, bronze, 14.29 (9/16) x 26.99 (1-1/16) x 63.5 mm (2-1/2 inch)

2шт.

46

N7704

SUPPORT ASSY.

CARRIAGE ASSEMBLY - mast, left-hand, Includes: Ref. 47

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

47

D55407

WEAR PAD

PLATE - wear, bronze, 14.29 (9/16) x 26.99 (1-1/16) x 63.5 mm (2-1/2 inch)

2шт.

48

83-45040

SET SCREW,Hex Soc, 1/2"-13 x 2 1/2"

SCREW - set, hex socket headless, 1/2 NC x 2-1/2 inch, oval point, upper

2шт.

49

83-45048

SET SCREW,Hex Soc, 1/2"-13 x 3"

SCREW - set, hex socket headless, 1/2 NC x 3 inch, oval point, lower

2шт.

50

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

4шт.

51

D86606

AXLE

PIN ASSEMBLY - carriage roller, service, includes grease fitting not required

4шт.

52

D52299

BEARING, ROLLER,31.75mm ID x 76.2mm OD x 32mm W

BEARING - carriage roller

4шт.

53

D55404

WASHER,32.16mm ID x 69.85mm OD x 6.35mm Thk

- thrust, 32 (1-1/4) x 70 (2-3/4) x 6.35 mm (1/4 inch) thick

4шт.

54

D52298

WASHER,32.16mm ID x 69.85mm OD x 2.77mm Thk

- thrust, 32 (1-1/4) x 70 (2-3/4) x 2.8 mm (7/64 inch) thick

8шт.

55

D75934

BAR

- trunnion

1шт.

56

D40841

LARGE PLATE

PLATE - wear, 50 (1-61/64) x 51 (2) x 6.4 mm (1/4 inch), horizontal

4шт.

57

D40840

LARGE PLATE

PLATE - wear, 62.3 (2-29/64) x 51 (2) x 6.4 mm (1/4 inch), vertical

4шт.

58

D88745

LARGE PLATE

PLATE - trunnion bar end

4шт.

59

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 NC x 3 inch

8шт.

60

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

8шт.
