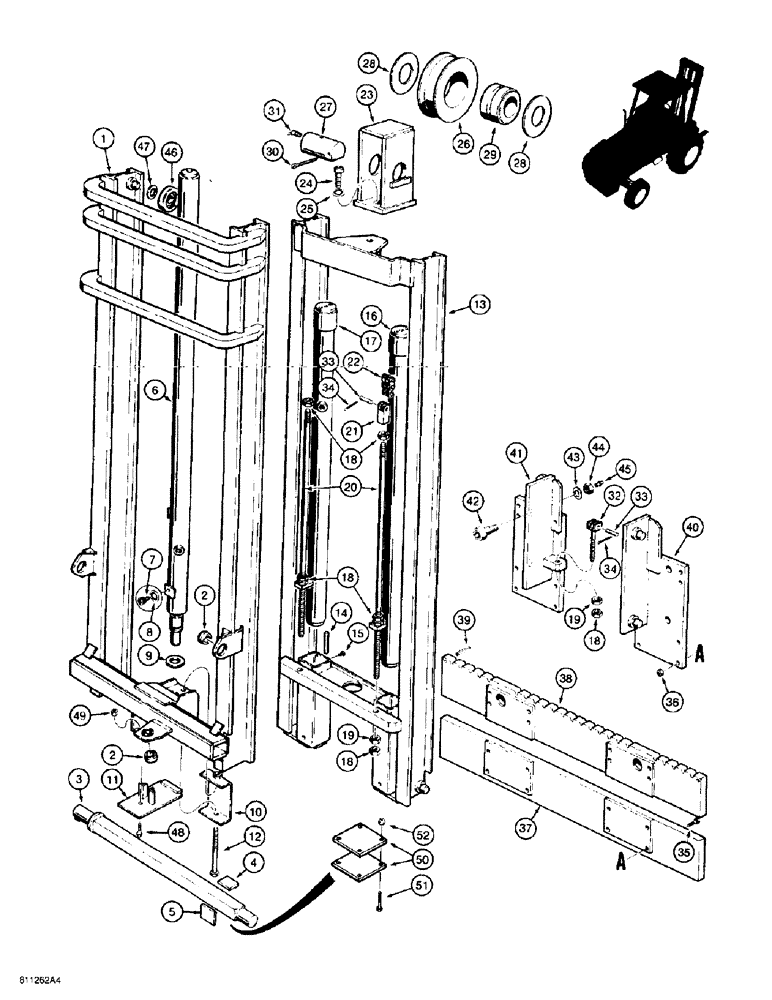

Запчасти Case 586E (9-100) - 4.3 M (14 FOOT) FREE LIFT MAST FOR 586E, WITHOUT 31 DEGREE FORWARD MAST TILT (09) - CHASSIS/ATTACHMENTS

D121922

MAST ASSEMBLY

- forklift, 4.3 m (14 foot), machinery Ref., order from machinery price list, no longer available as an assembly, Includes: Ref. 1 - 52

1шт.

For replacement, call C.A.M., and provide the following information: model number, machine and mast serial numbers, and mast specifics (number of lift cylinders, travel height, and degree of tilt), before ordering.

1шт.

1

D82903

FUNNEL

FRAME ASSEMBLY - mast, outer, Includes: Ref. 2

1шт.

For replacement, call C.A.M., and provide the following information: model number, machine and mast serial numbers, and mast specifics (number of lift cylinders, travel height, and degree of tilt), before ordering.

1шт.

2

D40843

BUSHING,25.4mm ID x 38.1mm OD x 24.38mm L

- self-aligning

3шт.

3

D75934

BAR

- trunnion

1шт.

4

D40841

LARGE PLATE

PLATE - wear, 50 (1-61/64) x 51 (2) x 6.4 mm (1/4 inch), horizontal

4шт.

5

D40840

LARGE PLATE

PLATE - wear, 62.3 (2-29/64) x 51 (2) x 6.4 mm (1/4 inch), vertical

4шт.

6

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, center, for correct assembly and components see Figure 8-38

1шт.

7

61-3386

HEX SOC SCREW,3/8"-16 x 3/8"

BOLT - hex socket, 3/8 NC x 3/8 inch

1шт.

8

93-21039

LOCK WASHER,Int Tooth, 3/8"

WASHER - internal tooth lock, 3/8 lock

1шт.

9

D82877

WASHER

- special, cylinder rod

1шт.

10

D82881

COVER

GUARD - hydraulic line

1шт.

11

D83063

COVER

- bottom, outer mast frame

1шт.

12

413-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

- hex, 3/4 NC x 8-1/2 inch

1шт.

13

D82905

FRAME

- mast, inner

1шт.

For replacement, call C.A.M., and provide the following information: model number, machine and mast serial numbers, and mast specifics (number of lift cylinders, travel height, and degree of tilt), before ordering.

1шт.

14

D82883

HYDRAULIC HOSE

HOSE - rubber, 102 mm (4 inch) long, cut from bulk hose A21571X, see below

8шт.

15

187-39

SELF-TAP SCREW,Rd Hd, #12 x 5/8"

SCREW - self-tapping, pan head slotted, No. 12-14 x 5/8 inch, no longer used

8шт.

16

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, right-hand, for correct assembly and components see Figure 8-38

1шт.

17

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, left-hand, for correct assembly and components see Figure 8-38

1шт.

18

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NF

10шт.

19

D82886

NUT

- hex, special, 3/4 inch NF

4шт.

20

D82908

CONNECTOR, ELEC

ROD - connecting

2шт.

21

D82888

ANCHOR

- chain

2шт.

22

D82909

CHAIN (AG)

CHAIN - leaf, 65 links

2шт.

23

D82890

FRAME

- sheave

2шт.

24

61-33824

HEX SOC SCREW,3/8"-16 x 1 1/2"

BOLT - hex socket, 3/8 NC x 1-1/2 inch

4шт.

25

93-21039

LOCK WASHER,Int Tooth, 3/8"

WASHER - internal tooth lock, 3/8 inch

4шт.

26

230001A1

SHEAVE

- chain guide (Replaces sheave D82891)

2шт.

27

D82892

PIN

- sheave

2шт.

28

D36582

WASHER

- thrust, bearing

4шт.

29

D82893

ROLLER BEARING,44.45mm ID x 76.2mm OD x 44.7mm W

BEARING - roller, 45 (1-3/4) x 76 (3) x 45 mm (1-3/4 inch) wide

2шт.

30

432-1240

COTTER PIN,3/16" x 2 1/2"

3/16" x 2 1/2"

2шт.

31

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree, 3/16 drive type x 23/32 inch

2шт.

32

D82894

ANCHOR

BOLT - special, chain mounting eye

2шт.

33

D82895

PIN

- connecting

4шт.

34

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

8шт.

A21571X

HOSE

- bulk, 7620 mm (300 inch) long

1шт.

35

461-35040

HEX SOC SCREW,1/2"-13 x 2 1/2"

SCREW, Hex Soc Hd, 1/2"-13 x 2 1/2"

16шт.

36

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

12шт.

37

D82896

PLATE

- backing, lower

1шт.

38

D82897

PLATE

- backing, upper

1шт.

39

138-190

LOCK PIN,7/16" x 2", Slotted

PIN, 7/16" x 2", Slotted

2шт.

40

D82898

SHEET

CARRIAGE - mast, right-hand

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

41

D82899

SHEET

CARRIAGE - mast, left-hand

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

42

D82900

ROLLER

BEARING - roller, carriage

4шт.

43

495-11094

WASHER,7/8", SAE

- flat, 15/16 x 1-3/4 x 1/8 inch

4шт.

44

131-465

LOCK NUT,7/8"-14, G8

NUT - thin hex, self-locking, 7/8 inch NF

4шт.

45

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

4шт.

46

N7679

BEARING, ROLLER,1.378" ID x 4" OD x 1.13"

BEARING - roller, frames

8шт.

47

D82902

SHIM,.059" Thk

Washer, 1-3/8" ID x 2 OD" (M35 x 51 x 1.5 mm) .059" Thk

8шт.

48

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

49

425-106

NUT,3/8"-16, Cl 5

1шт.

50

D88745

LARGE PLATE

PLATE - trunnion bar end

4шт.

51

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 NC x 3 inch

8шт.

52

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

8шт.
