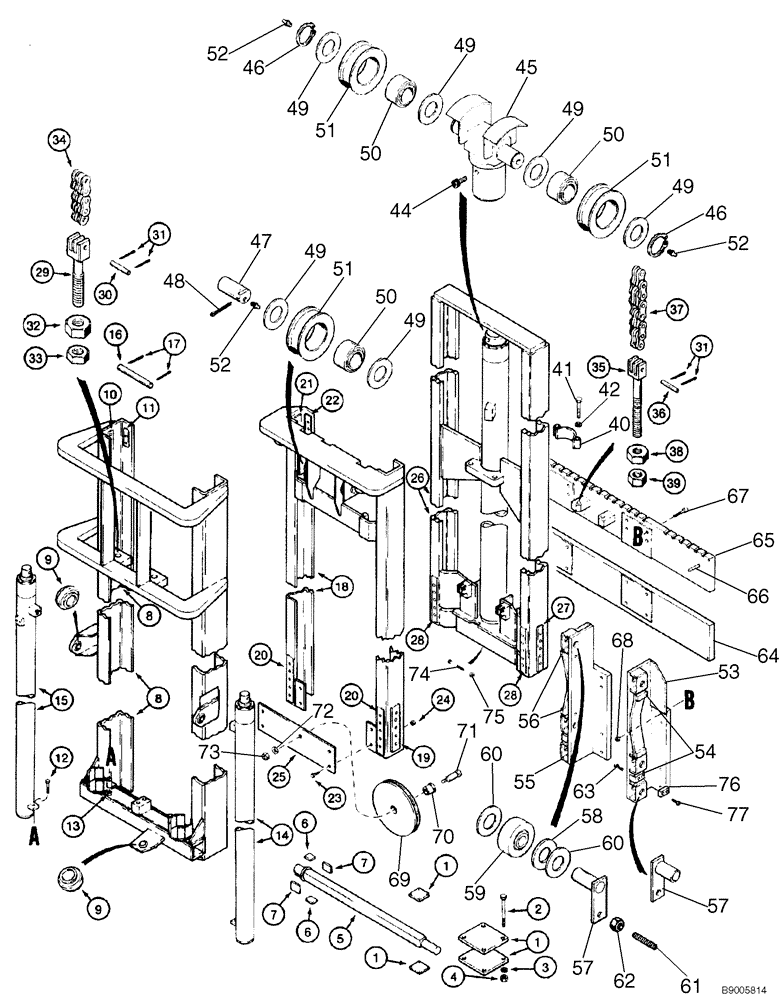

Запчасти Case 586E (9-110) - 6.4 M (21 FOOT) FREE LIFT MAST FOR 586E, WITH 31 DEGREE FORWARD MAST TILT (09) - CHASSIS/ATTACHMENTS

D147885

MAST ASSEMBLY

- forklift, 6.4 m (21 foot), Includes: Ref. 40 - 77 and Ref. 1 - 39 on Figure 9-108

1шт.

40

D148879

RETAINER

- center lift cylinder, to inner frame

1шт.

41

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

2шт.

42

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

43

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, center, parts list Figure 8-40

1шт.

44

61-25018

HEX SOC SCREW,1/2"-13 x 1 1/8", Lock

BOLT - hex socket, 1/2 NC x 1-1/8 inch

1шт.

45

D148886

TRUNNION

- sheave, center lift cylinder

1шт.

46

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Sheave to trunnion #175, Ext

2шт.

47

N7698

PIN,44.44mm OD x 79.37mm L

- pivot, sheave, at center frame

2шт.

48

432-1240

COTTER PIN,3/16" x 2 1/2"

3/16" x 2 1/2"

2шт.

49

D36582

WASHER

- thrust, sheave

8шт.

50

D82893

ROLLER BEARING,44.45mm ID x 76.2mm OD x 44.7mm W

BEARING - roller, 45 (1-3/4) x 76 (3) x 45 mm (1-3/4 inch) wide

4шт.

51

230001A1

SHEAVE

- chain guide (Replaces sheave D82891)

4шт.

52

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

4шт.

53

D148839

SUPPORT ASSY.

CARRIAGE ASSEMBLY - mast, right-hand, Includes: Ref. 54

1шт.

54

D55407

WEAR PAD

PLATE - wear, bronze, 14.29 (9/16) x 26.99 (1-1/16) x 63.5 mm (2-1/2 inch)

2шт.

55

D148840

SUPPORT ASSY.

CARRIAGE ASSEMBLY - mast, left-hand, Includes: Ref. 56

1шт.

56

D55407

WEAR PAD

PLATE - wear, bronze, 14.29 (9/16) x 26.99 (1-1/16) x 63.5 mm (2-1/2 inch)

2шт.

57

D86606

AXLE

PIN ASSEMBLY - carriage roller, service, grease fitting not required (Replaces pin D55403), Includes: Ref. 57A

6шт.

57a

211-1006

BALL,3/16" Dia

- chrome alloy steel, 3/16 inch, grade 24, if used, not shown

1шт.

58

D55404

WASHER,32.16mm ID x 69.85mm OD x 6.35mm Thk

- thrust, 32 (1-1/4) x 70 (2-3/4) x 6.35 mm (1/4 inch) thick

6шт.

59

D52299

BEARING, ROLLER,31.75mm ID x 76.2mm OD x 32mm W

BEARING - carriage roller

6шт.

60

D52298

WASHER,32.16mm ID x 69.85mm OD x 2.77mm Thk

- thrust, 32 (1-1/4) x 70 (2-3/4) x 2.8 mm (7/64 inch) thick

12шт.

61

83-45040

SET SCREW,Hex Soc, 1/2"-13 x 2 1/2"

SCREW - set, hex socket headless, 1/2 NC x 2-1/2 inch, oval point

4шт.

62

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

4шт.

63

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

64

N7691

PLATE

- backing, lower

1шт.

65

D148910

PLATE ASSY.

PLATE - backing, upper

1шт.

66

38-32832

PIN,7/16" x 2", Coiled

2шт.

67

461-35040

HEX SOC SCREW,1/2"-13 x 2 1/2"

SCREW, Hex Soc Hd, 1/2"-13 x 2 1/2"

16шт.

68

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

16шт.

69

D148897

SHEAVE

- idler, lift cylinder hose

1шт.

70

D148896

BUSHING

- bronze, idler sheave

1шт.

71

D148894

STEP BOLT,5/8" - 11 x 1.5"

BOLT - hex socket shoulder, 5/8 NC x 2-3/8 inch

1шт.

72

495-11081

WASHER,3/4", SAE

1шт.

73

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, jam, 5/8 inch NC

1шт.

74

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

1шт.

75

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

1шт.

76

D149081

PLATE

- wear, lower, roller carriage

2шт.

77

D149080

BOLT

- hex socket, low head, 5/16 NC x 3/4 inch

4шт.
