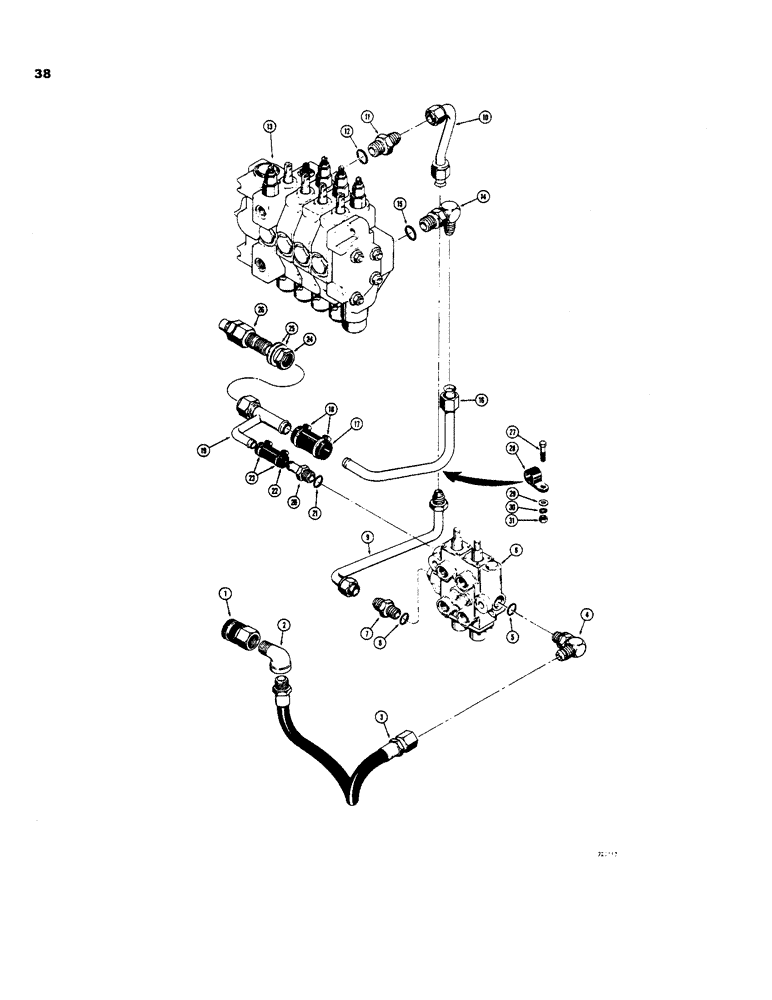

Запчасти Case 35 (038) - BACKHOE INTERMEDIATE HYDS, COMMERCIAL - CROSS VALVES USED ON MDLS W/ BACKHOE SN 5219901 THRU 5222134

1

D52800

COUPLING, QUICK, FEM

COUPLING - quick diconnect, female half, parts list Figure 162

1шт.

2

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

3

D52667

HOSE

- pressure line to stablizer valve, 36" (914 mm) long

1шт.

4

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Includes Ref. 5 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

6

D50420

VALVE

ASSEMBLY - stabilizer control, see Figure 68 for related parts and Figure 210 for component parts

1шт.

7

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 8

1шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

9

D55546

TUBE

- stabilizer control valve to backhoe control valve, lower

1шт.

10

D55548

TUBE

- stabilizer control valve to backhoe control valve, upper

1шт.

11

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 12

1шт.

12

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

13

D50560

LOCK VALVE

VALVE - backhoe control, see Figure 78 for related parts and Figure 180 for compnent parts

1шт.

14

218-5100

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- adjustable, 90 degree, Includes: Ref. 15

1шт.

15

28-5010

O-RING

1шт.

16

D55362

TUBE - return, backhoe control valve to tube "Y"

1шт.

17

32798

HOSE

- return

1шт.

18

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

19

D55232

TUBE - return,"Y"type

1шт.

20

217-177

FITTING,3/4" Hose Barb x 1-1/16" - 12 Male ORB

HOSE STEM - stablizer control valve to tube "Y", Includes: Ref. 21

1шт.

21

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

22

R2080

HOSE - return

1шт.

23

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

24

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

NUT, LOCK, Blkhd, 1 5/16"-12, Disconnect

1шт.

25

195-2131

WASHER,1 3/8" x 2" x .065"

- plain, 1-3/8" ID x 2"

2шт.

26

D52673

COUPLING, BREAK AWAY

COUPLING - quick disconnect, male half, parts list Figure 162

1шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

28

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- return tube, late production, use with D55693 bracket only, see Figure 68 Ref. no 5A

1шт.

29

195-25

WASHER,3/8"

- plain, 3/8"

1шт.

30

92-6

LOCK WASHER,3/8"

1шт.

31

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.
