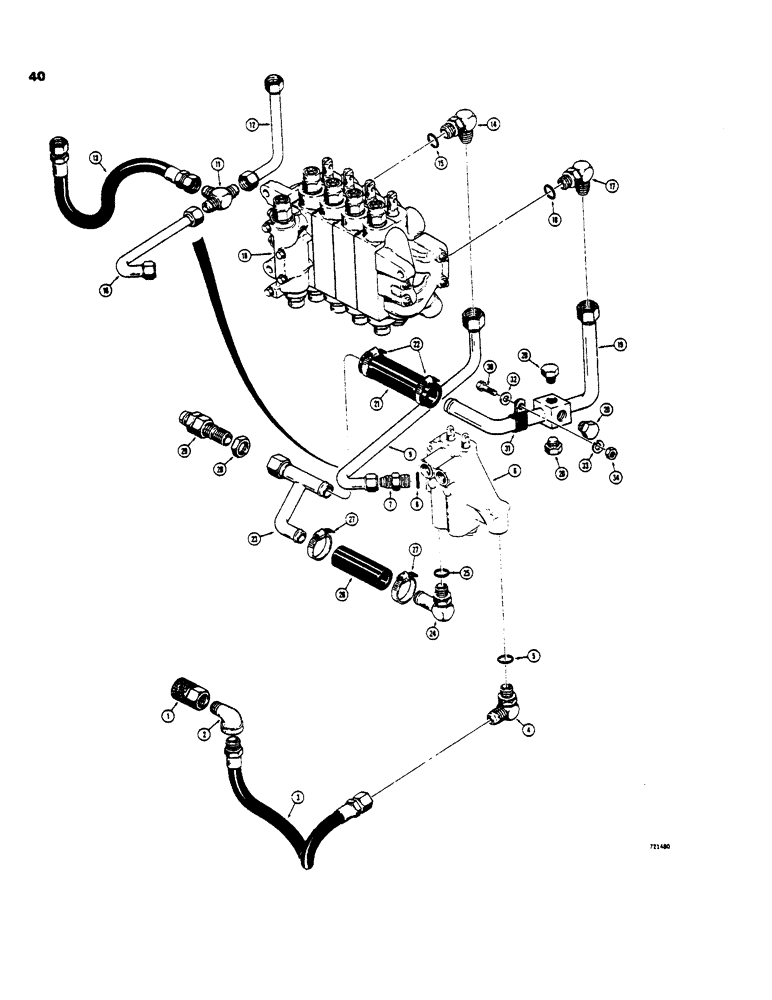

Запчасти Case 35 (040) - BACKHOE INTERMEDIATE HYDRAULICS, CASE-CESSNA VALVES

1

D52800

COUPLING, QUICK, FEM

COUPLING - quick disconnect, female half, parts list Figure 162

1шт.

2

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

3

D56094

HOSE

- pressure line to stablizer valve, 39" (991 mm) long

1шт.

4

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Includes Ref. 5 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

6

REF

INSTRUCTION

VALVE ASSEMBLY - stabilizer control, see Figure 74 for related parts and Figure 212 for component parts

1шт.

7

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 8

1шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

9

D56037

TUBE - stabilizer to backhoe control valve, backhoe, Serial Range: -5247677

1шт.

10

D57877

TUBE

- stabilizer to bakchoe control valve inlet and hydra-guide valve pressure lower backhoe, Start Serial: 5247677

1шт.

11

218-596

TEE,1 1/16"-12 37 Degree

- male, backhoe, Start Serial: 5247677

1шт.

12

D57882

TUBE

- tee to backhoe control valve inlet, upper backhoe, Start Serial: 5247677

1шт.

13

D57884

HOSE ASSY.

HOSE - tee to no. 6 port of hydra-Guide control valve, 16-1/2" (419 mm) long, backhoe, Start Serial: 5247677

1шт.

14

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adjustable, Includes: Ref. 15 90º, 1 1/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

15

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

16

REF

INSTRUCTION

VALVE - backhoe control, see Figure 94 for related parts and Figure 198 for proper valve

1шт.

17

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable, Incl. Ref. 18

1шт.

18

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

19

D56157

TUBE - return, backhoe control, Serial Range: valve-tube"Y"

1шт.

20

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, square head, 1/2" NPT

3шт.

21

32798

HOSE

- return, backhoe valve

1шт.

22

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

23

D56124

TUBE

- return "Y" type

1шт.

24

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

HOSE STEM - 90 degree, stablizer control valve to tube "Y", Includes: Ref. 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

26

D24728

HOSE

- return stabilizer valve

1шт.

27

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

28

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

NUT, LOCK, Blkhd, 1 5/16"-12, Disconnect

1шт.

29

D52673

COUPLING, BREAK AWAY

COUPLING - quick disconnect, male half, parts list Figure 162

1шт.

30

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

31

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- return tube

1шт.

32

195-25

WASHER,3/8"

WASER - plain, 3/8"

1шт.

33

92-6

LOCK WASHER,3/8"

1шт.

34

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.
