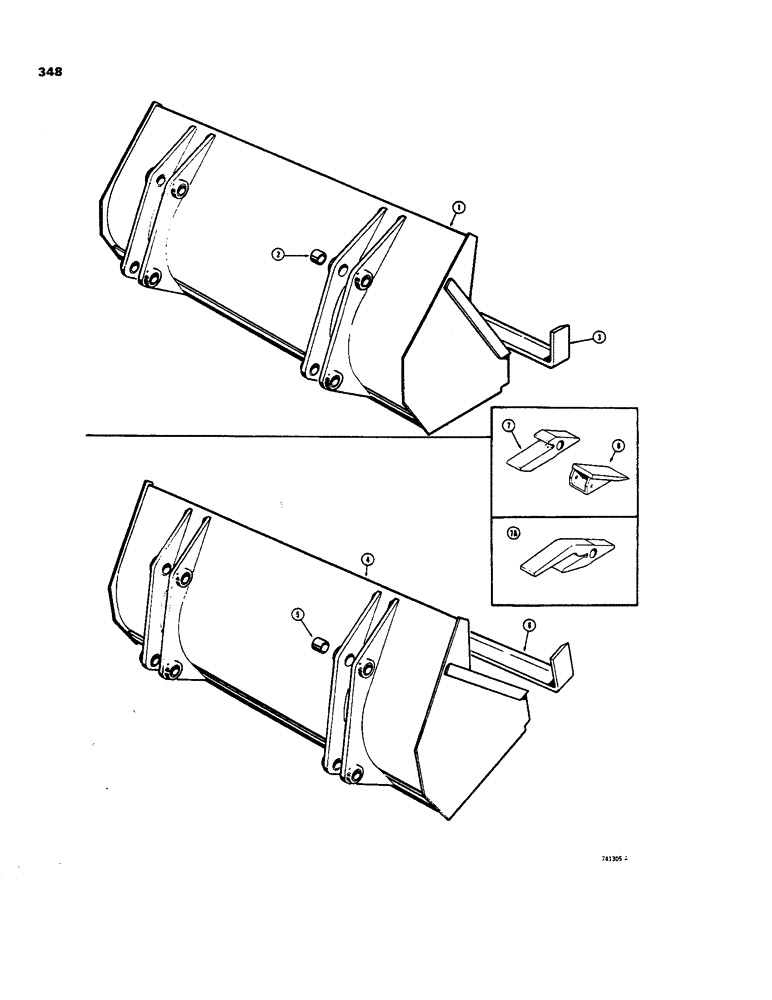

Запчасти Case 35 (348) - LOADER BUCKETS, MACHINERY ITEM, SHORT LIP BUCKETS

D54904

BUCKET ASSEMBLY - loader, short lip, 74" wide x 21 cu ft heaped capacity, machinery item, see Figure 2 for ordering, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

- bucket ear

4шт.

3

D95072

EDGE, CUTTING,4” W x 72.47” L x 6” H x 3/4” Thk

CUTTING EDGE - bucket

1шт.

D54090

BUCKET ASSEMBLY - loader, short lip, 80" wide x 23 cu ft heaped capacity, machinery item, see Figure 2 for ordering, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

-bucket ear

4шт.

3

D95073

EDGE, CUTTING,4” W x 78.47” L x 6” H x 3/4” Thk

CUTTING EDGE - bucket

1шт.

D54901

ASSEMBLY - loader, 64" wide x 20 cu ft heaped capacity, machinery item, see Figure 2 for ordering, long lip buckets, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

BUCKET - loader, long lip

1шт.

5

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

- bucket ear, long lip

4шт.

6

D95071

EDGE, CUTTING

CUTTING EDGE - bucket, long lip

1шт.

D54093

BUCKET ASSEMBLY - loader, long lip, 74" wide x 23 cu ft heaped capacity, machinery item, see Figure 2 for ordering, long lip buckets, Includes: Ref. 4 - 6

1шт.

BUCKET ASSY IS 80" WIDE IN LIEU OF 9" WIDE.

1шт.

4

NSS

NOT SOLD SEPARAT

BUCKET - loader, long lip

1шт.

5

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

- bucket ear, long lip

4шт.

6

D95072

EDGE, CUTTING,4” W x 72.47” L x 6” H x 3/4” Thk

CUTTING EDGE - bucket, long lip

1шт.

D54092

BUCKET ASSEMBLY - loader, long lip, 9." wide x 25 cu ft heaped capacity, machinery item, see Figure 2 for ordering,, Includes: Ref. 4 - 6

1шт.

D65826

BUCKET ASSEMBLY - loader, long lip, 80' wide x 25 cu ft heaped capacity,, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

BUCKET - loader, long lip

1шт.

5

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

- bucket ear, long lip

4шт.

6

D95073

EDGE, CUTTING,4” W x 78.47” L x 6” H x 3/4” Thk

CUTTING EDGE - bucket, long lip

1шт.

7

D26368

SUPPORT

SHANK - original equipment, bucket teeth optional on all except 80"

8-9шт.

7a

D58499

SUPPORT

SHANK - service option, bucket teeth optional on all except 80"

8-9шт.

8

D58576

TOOTH

POINT - Fabco manufactured, 4-7/8" long, bucket teeth optional on all except 80"

8-9шт.

8

D58577

TOOTH

POINT - Fabco manufactured, 4-3/4', bucket teeth optional on all except 80"

8-9шт.
