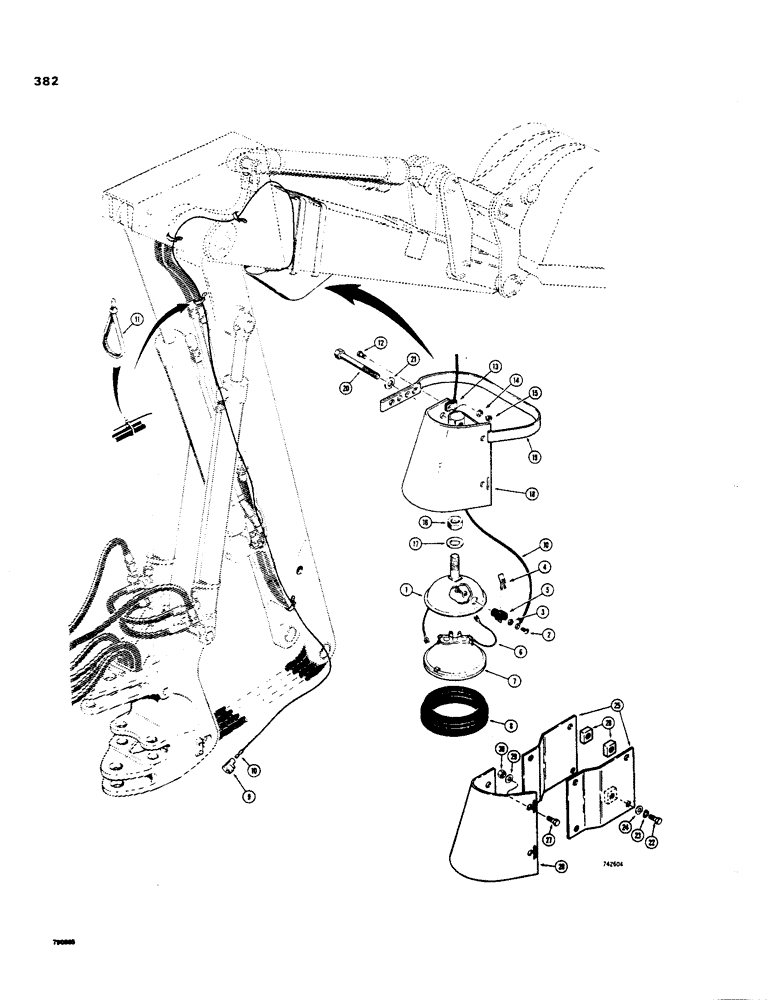

Запчасти Case 35 (382) - DIPPER LIGHT, USED WITH STANDARD DIPPER

D37811

LAMP

ASSEMBLY - dipper arm, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

2

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- round head machine, no 8-32 NC x 1/4"

2шт.

3

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, Int Tooth, #8

2шт.

4

10927

SPRING

RING - lamp

1шт.

5

B50293

TERMINAL CONNECTOR

- lamp

1шт.

6

A25262

ELECTRICAL WIRE

WIRE - lamp

1шт.

7

D33182

LAMP

BULB - seal beam

1шт.

8

D31441

RETAINER

- lamp

1шт.

9

A62556

CONNECTOR, ELEC

CONNECTOR - dipper light wire to main harness

1шт.

10

D50717

HARNESS

WIRE - console to dipper light, 226" (5740 mm) long

1шт.

11

L18331

CABLE TIE,375.9mm L, Nylon

STRAP - wire retaining

1шт.

12

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

13

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- wire, at dipper

1шт.

14

195-25

WASHER,3/8"

- plain, 3/8"

1шт.

15

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, lock 3/8" - 16 NC

1шт.

16

131-354

LOCK NUT,1/2"-13, GA

NUT - hex, lock, 1/2 " - 13 NC

1шт.

17

195-33

WASHER,1/2"

- plain, 1/2"

1шт.

18

D41427

SHIELD

dipper, used on backhoes w/ strap mounted light shield

1шт.

19

D50289

used on backhoes w/ strap mounted light shield

2шт.

20

113-443

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

Used on backhoes w/ strap mounted light shield Hex, 1/2"-13 x 6 1/2", G5

2шт.

21

92-8

LOCK WASHER,1/2"

used on backhoes w/ strap mounted light shield 1/2"

2шт.

22

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Used on backhoes w/ bracket mounted light shield Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

23

92-6

LOCK WASHER,3/8"

used on backhoes w/ bracket mounted light shield 3/8"

4шт.

24

195-25

WASHER,3/8"

- plain, , used on backhoes w/bracket mounted light shield 3/8"

4шт.

25

D56849

BRACKET

- support, used on backhoes w/ bracket mounted light shield

2шт.

26

D30458

BLOCK

- tapped, welded to dipper, used on backhoes w/ bracket mounted light shield

2шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Used on backhoes w/ bracket mounted light shield Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

28

D41427

SHIELD

used on backhoes w/ bracket mounted light shield

1шт.

29

195-25

WASHER,3/8"

- plain, , used on backhoes w/ bracket mounted light shield 3/8"

4шт.

30

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, lock, 3/8" - 16 NC, used on backhoes w/ bracket mounted light shield

4шт.
