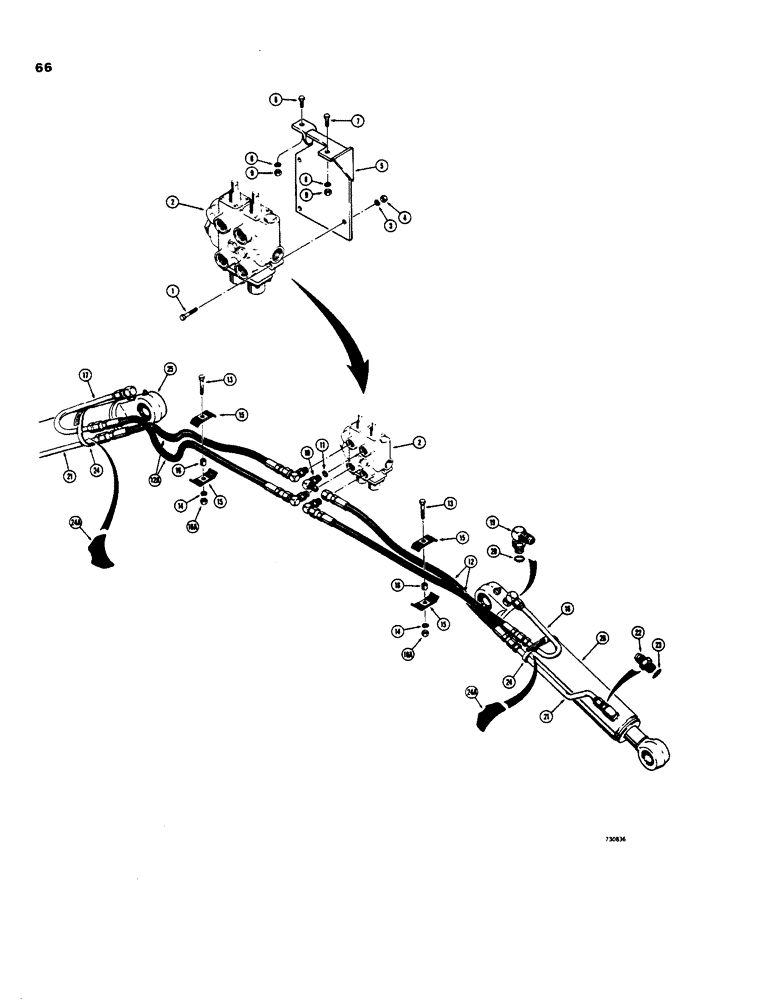

Запчасти Case 35 (066) - STABILIZER CYLINDER HYDS, COMMERCIAL - CROSS VALVES USED ON MDLS W/ BACKHOE SN BEF 5219901

1

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

3шт.

2

D50420

VALVE

ASSEMBLY - 2 spool, stabilizer control, parts list Figure 210

1шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

5

D55693

BRACKET

- stabilizer valve mounting

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

8

92-6

LOCK WASHER,3/8"

2шт.

9

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

10

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree, Incl. Ref. 11

4шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

D55174

HOSE ASSY.

HOSE - stabilizer control valve to RH stabilizer cylinder 35" (889 mm) long

2шт.

12a

D50751

HOSE

- stabilizer control valve to LH stabilizer cylinder 33" (838 mm) long

2шт.

13

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8" - 16 NC x 2-1/2"

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

D40236

CLAMP

- tube

4шт.

16

D34244

SPACER

- tube

2шт.

16a

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

17

D52675

TUBE

- stabilizer, closed end, LH

1шт.

18

D52677

TUBE

- stabilizer, closed end, RH

1шт.

19

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree, Incl. Ref. 20

2шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

21

D52679

TUBE

- stabilizer, rod end, if backhoe is equipped with G33982 or G33983 stabilizer cylinder, order D55865 tube

2шт.

22

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight, Includes: Ref. 23

2шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

24

214-270

HOSE CLAMP,#76, 4.31" - 5.25", Type F Worm

CLAMP - tube to cylinder

2шт.

24a

D38648

BLOCK

SADDLE - tube clamp

2шт.

25

REF

INSTRUCTION

CYLINDER - hydraulic, LH stabilizer, see Figures 252 - 268 for proper cylinder

1шт.

26

REF

INSTRUCTION

CYLINDER - hydraulic, RH stabilizer, see Figures 252 - 268 for proper cylinder

1шт.
