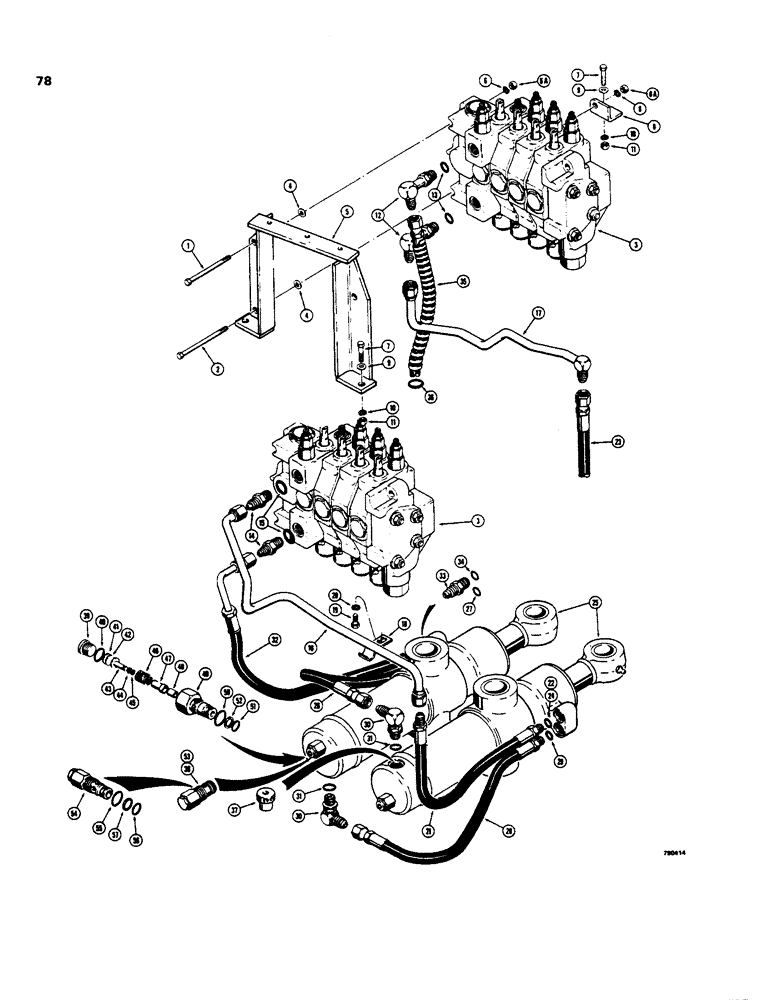

Запчасти Case 35 (078) - SWING CYLINDER HYDRAULICS, COMMERCIAL - CROSS AND CESSNA VALVES

1

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

Upper valve mounting Hex, 1/2"-13 x 4 1/2", G5

2шт.

2

13-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

Lower valve mounting Hex, 1/2"-13 x 5", G5

1шт.

3

D50560

LOCK VALVE

VALVE - backhoe control, parts list Figure 180

3шт.

4

195-33

WASHER,1/2"

- flat, ID 1/2"

3шт.

5

D50567

BRACKET

- mounting, valve

1шт.

6

92-8

LOCK WASHER,1/2"

3шт.

6a

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

- hex, 1/2" - 13 NC x 1-1/4"

3шт.

8

D50579

BRACKET - valve mounting

1шт.

9

195-33

WASHER,1/2"

- plain, 1/2"

3шт.

10

92-8

LOCK WASHER,1/2"

3шт.

11

25-108

NUT,1/2"-13, G5

- hex, 1/2U - 13 NC

3шт.

12

D20071

ELBOW UNION

ELBOW - adjustable, 90 degree, used on models with dual lever control, Includes: Ref. 13

2шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, used on models with individual lever control, Includes: Ref. 15

2шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

D55554

TUBE

- control valve to RH swing cylinder, used on models with individual lever control must be used if backhoe is equipped with Cross stabilizer valve

1шт.

16

D56255

TUBE

- control valve to RH swing cylinder, used on models with individual lever control, must be used if backhoe is equipped with Cessna stabilizer valve

1шт.

17

D54233

TUBE - control valve to RH swing cylinder, used on models with dual lever control

1шт.

18

D50551

CLIP

CLAMP - tube

1шт.

19

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2" - 13 NC x 3/4"

1шт.

20

92-8

LOCK WASHER,1/2"

1шт.

21

D50731

HOSE

- control valve to RH swing cylinder, upper port, rod end, 2-1/2" (521 mm) long, used on models with individual lever control, Includes: Ref. 22

1шт.

23

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

- control valve to RH swing cylinder, upper port, rod end, 23-1/2" (597 mm) long, used on models with dual lever control, Includes: Ref. 24

1шт.

25

REF

INSTRUCTION

CYLINDER - hydraulic, swing, parts list Figure 272 - 288

2шт.

26

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

- crossover, swing cylinders, 23-1/2" (597 mm) long, upper, Includes: Ref. 27

1шт.

28

D55749

HOSE

- crossover, swing cylinders, 21-3/4" (552 mm) long, lower, Includes: Ref. 29

1шт.

30

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree, Includes: Ref. 31

2шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

32

D55556

HOSE

- control valve to LH swing cylinder, upper port, rod end, 24-1/2" (623 mm) long, used on models with individual lever control

1шт.

33

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - male, straight, Incl. Ref 34

1шт.

35

D54261

HOSE - control valve to LH swing cylinder, upper port, rod end, 31" (787 mm) long, used on models with dual lever control, Includes: Ref. 36

1шт.

37

D76235

VALVE

RESTRICTOR - flow control, used on backhoes without extended dipper

2шт.

37

D45555

FITTING

RESTRICTOR - flow control, used on backhoes extendable dipper

2шт.

38

D47557

VALVE

- relief, allen head, if used, Includes: Ref. 39 - 52

2шт.

39

D40354

PLUG

- relief valve, Includes: Ref. 40

1шт.

41

D40355

SHIM,.005" Thk

Spring guide (0.127 mm) .005" Thk

1шт.

42

16917

SHIM

- guide, .010" (0.254 mm)

1шт.

43

D37150

GUIDE

- spring

1шт.

44

D37147

RING

- backup, spring guide

1шт.

45

A51274

O-RING,0.145" ID x 0.285" OD

- spring guide

1шт.

46

D37148

SPRING

- splunger

1шт.

47

D37151

PLUNGER

- relief valve

1шт.

48

D37075

SEAT

- plunger

1шт.

49

D47667

CAP

BODY - relief valve

1шт.

50

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- valve body to cylinder

1шт.

51

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- valve body

1шт.

52

D37071

RING

- backup, valve body seal

1шт.

53

D47557

VALVE

- relief, hex head, if used, Includes: Ref. 54 - 57

2шт.

54

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - relief valve

1шт.

55

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- outer

1шт.

56

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- inner

1шт.

57

D37071

RING

- backup, inner O-ring

1шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

24

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

29

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

34

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

36

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

40

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- plug

1шт.
