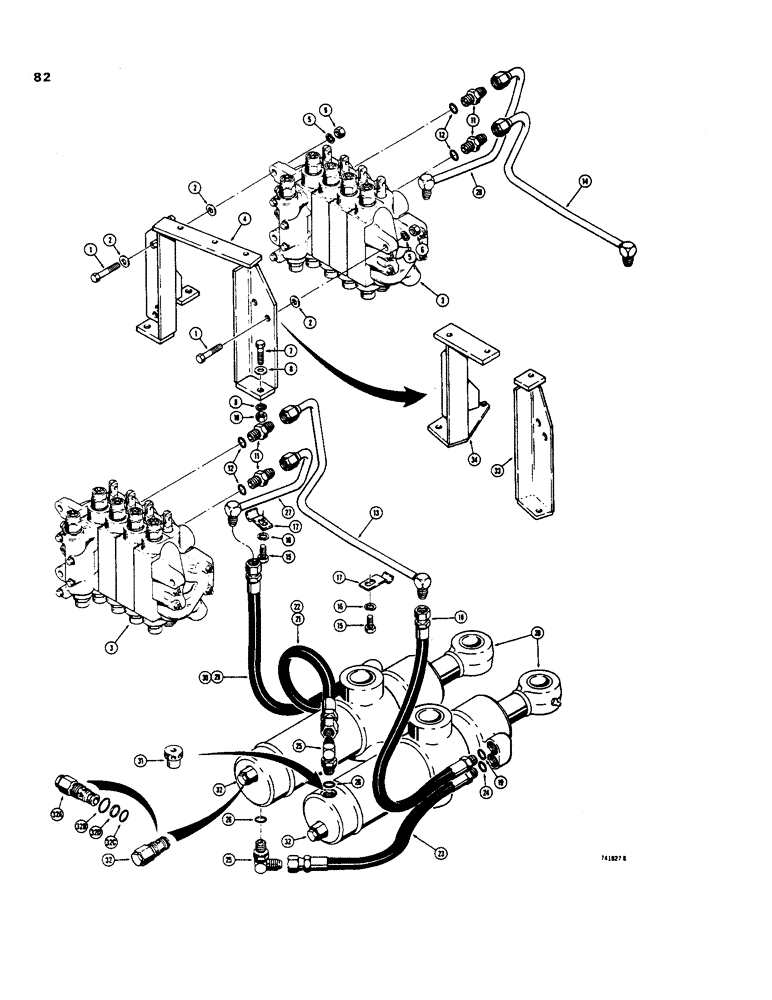

Запчасти Case 35 (082) - SWING CYLINDER HYDRAULICS, CASE-CESSNA VALVES

1

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

2

95-8

WASHER,1/2"

- backhoe control, 4 spool see Figure 198 for proper valve 1/2"

1шт.

3

REF

INSTRUCTION

VALVE - backhoe control, 4 spool, see Figure 198 for proper valve

1шт.

4

D56214

BRACKET

- valve mounting

1шт.

5

92-8

LOCK WASHER,1/2"

3шт.

6

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

8

95-8

WASHER,1/2"

- plain 1/2"

3шт.

9

92-8

LOCK WASHER,1/2"

3шт.

10

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

11

218-5075

CONNECTOR - male, staright, Includes: Ref. 12

2шт.

12

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

13

D56012

TUBE - control valve to RH swing cylinder, used on models with individual lever control.

1шт.

14

D56033

TUBE - control valve to RH swing cylinder, used on models with dual lever control

1шт.

15

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2" - 13 NC x 3/4"

2шт.

16

92-8

LOCK WASHER,1/2"

2шт.

17

D50551

CLIP

CLAMP - tube

2шт.

18

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

- control valve to RH swing cylinder, upper port, rod end 23-1/2" (597 mm) long, used on models wiht individual and twin lever controls, Includes: Ref. 19

1шт.

20

REF

INSTRUCTION

CYLINDER - hydraulic, swing, see Figures 272 - 288 for proper cylinder

2шт.

21

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

- crossover, swing cylinders, 23-1/2" (597 mm) long, upper, Includes: Ref. 22

1шт.

23

D55749

HOSE

- crossover, swing cylinders, 21-3/4" (552 mm) long, lower, Includes: Ref. 24

1шт.

25

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree, Includes: Ref. 26

2шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

27

D56014

TUBE

- control valve to LH swing cylinder, rod end, used on models with individual lever controls

1шт.

28

D56014

TUBE

- control valve to LH swing cylinder, rod end, used on models with twin lever controls

1шт.

29

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

- control valve to LH swing cylinder, upper port, rod end, 23-1/2" (597 mm) long, used on models with individual and twin lever controls, Includes: Ref. 30

1шт.

31

D76325

RESTRICTOR - flow control, used on backhoes without extendable dipper

2шт.

31

D45555

FITTING

RESTRICTOR - flow control, used on backhoes with extenable dipper

2шт.

32

D47557

VALVE

CARTRIDGE - relief, hex head, Includes: Ref. 32A - 32D

2шт.

32a

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - relief valve

1шт.

32b

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- outer

1шт.

32c

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- inner

1шт.

32d

D37071

RING

- backup, inner O-ring

1шт.

33

D63188

BRACKET

MOUNTING - backhoe valve, RH, if used

1шт.

34

D63187

BRACKET

MOUNTING - backhoe valve, LH, if used 1

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

24

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

30

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
