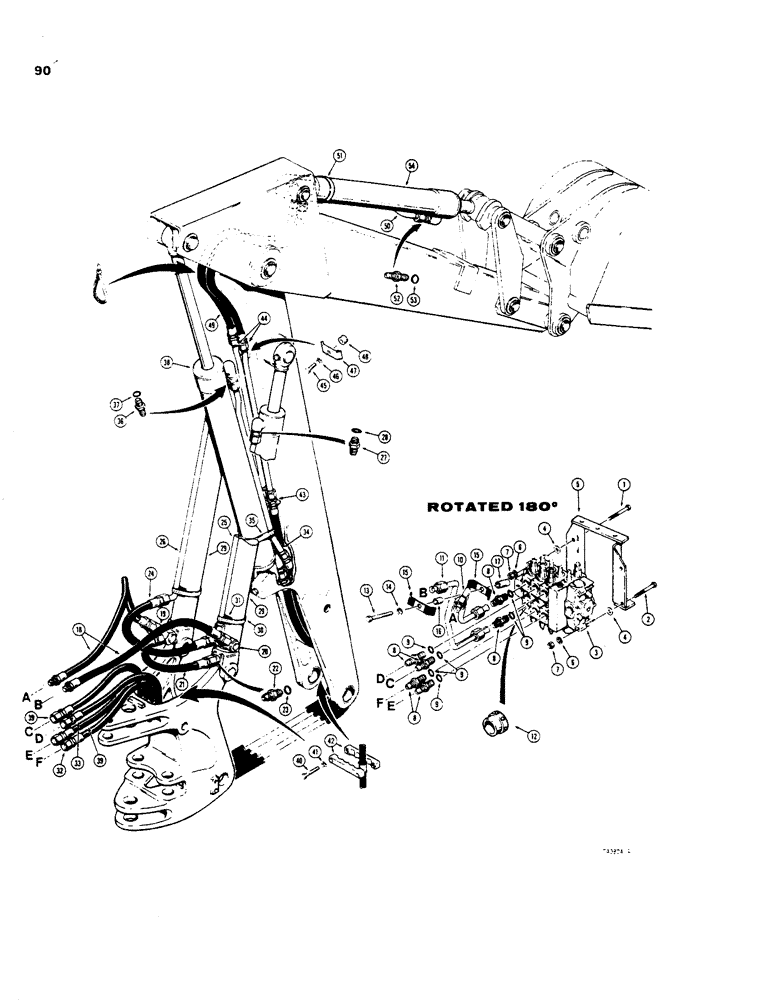

Запчасти Case 35 (090) - BOOM, DIPPER AND BUCKET CYLINDER HYDRAULICS, COMMERCIAL - CROSS & CESSNA VALVES

1

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

Upper valve mounting Hex, 1/2"-13 x 4 1/2", G5

2шт.

2

13-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

Lower valve mounting Hex, 1/2"-13 x 5", G5

1шт.

3

D50560

LOCK VALVE

VALVE - backhoe control, parts list Figure 180

1шт.

4

195-33

WASHER,1/2"

- flat, ID 1/2"

3шт.

5

D50567

BRACKET

- mounting, valve

1шт.

6

92-8

LOCK WASHER,1/2"

3шт.

7

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

8

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, bucket, dipper, and boom ports, Incl. Ref. 9

6шт.

9

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

10

D55552

TUBE

- upper valve port to boom cylinder

1шт.

11

D55550

TUBE

- lower valve port to boom cylinder

1шт.

12

D54518

FITTING

RESTRICTOR - check, lower boom port

1шт.

13

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8" - 16 NC x 3-1/2"

1шт.

14

92-6

LOCK WASHER,3/8"

1шт.

15

D40236

CLAMP

- tube

2шт.

16

D34244

SPACER

- clamp

1шт.

17

D90522

SPACER -, Serial Range: clamp-bracket

1шт.

18

D55562

HOSE,15.88mm ID x 965.2mm L, SAE 100R2

- control valve to boom cylinder, at valve, 38" (965 mm) long

2шт.

19

REF

INSTRUCTION

JOINT - swivel, LH boom cylinder, see Figure 160 for joint

1шт.

19

REF

INSTRUCTION

JOIN - swivel, LH boom cylinder, see Figure 160 for joint

1шт.

20

REF

INSTRUCTION

JOINT - swivel, RH boom cylinder, see Figure 160 for joint

1шт.

20

REF

INSTRUCTION

JOINT - swivel, RH boom cylinder, see Figure 160 for jont

1шт.

21

CASD50053

HOSE - crossover, at closed end of boom cylinders, 23" (584 mm) long

1шт.

22

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 23

1шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

24

D55563

HOSE

- crossover, to rod end of boom cylinders, 21" (533 mm) long

1шт.

25

D55564

TUBE

- RH boom cylinder, rod end

1шт.

26

D55566

TUBE

- LH boom cylinder, rod end

1шт.

27

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male. straight, Includes: Ref. 28

2шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

29

REF

INSTRUCTION

CYLINDER - boom, see Figures 292 - 298 for proper cylinder

2шт.

30

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube to cylinder

2шт.

31

D38648

BLOCK

SPACER - tube

2шт.

32

D55988

HOSE

- valve to closed end of dipper cylinder, 83" (2108 mm) long

1шт.

33

D55987

HOSE

- control valve to rod end of dipper cylinder, 89" (2261 mm) long

1шт.

34

D50379

TUBE

- control valve to rod end of dipper cylinder, at cylinder

1шт.

35

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - tube to cylinder

1шт.

36

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male, straight, Includes: Ref. 37

2шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

38

REF

INSTRUCTION

CYLINDER - hydraulic, dipper, parts list Figures 314 - 320

1шт.

39

D55989

HOSE,15.88mm ID x 2413mm L, SAE 100R2

- control valve to bucket cylinder, at valve, 92" (2388 mm)

2шт.

40

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2" - 13 NC x 1-3/4

4шт.

41

92-8

LOCK WASHER,1/2"

4шт.

42

D50388

CLAMP

- hose

2шт.

43

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, 3/4" tube

2шт.

Connector located at Trunnion end of cylinder bucket cylinder is P/N 218-5065.

1шт.

44

D50386

TUBE

- control valve to bucket cylinder, intermdiate

2шт.

45

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 - 16 NC x 1-1/2"

1шт.

46

92-6

LOCK WASHER,3/8"

1шт.

47

D42504

CLAMP

- tube

1шт.

48

D36040

BUSHING

SPACER - tube clamp

1шт.

49

D50372

HOSE

- control valve to bucket cylinder, cylinder, 34' (864 mm)

2шт.

50

D58609

TUBE

- control valve to rod end of bucket cylinder

1шт.

51

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - tube

1шт.

52

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male, straight, Includes: Ref. 53

2шт.

53

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

54

REF

INSTRUCTION

CYLINDER - hydrualic, bucket, see Figures 306 - 312 for proper cylinder

1шт.
