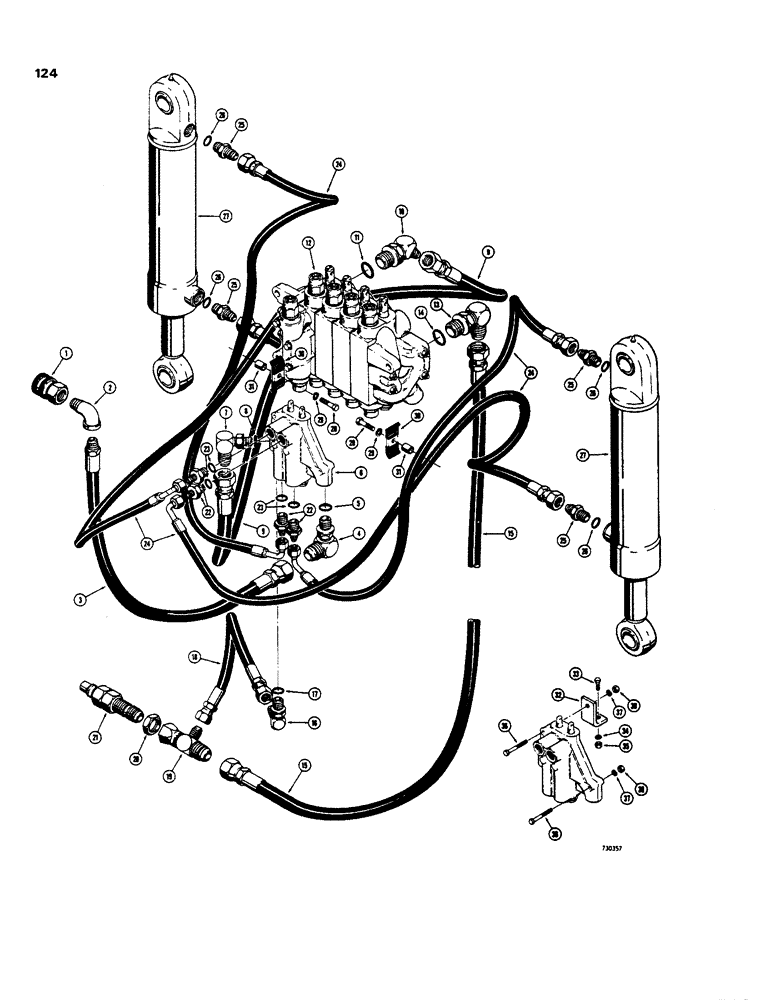

Запчасти Case 35 (124) - SIDE SHIFT BACKHOE INTERMEDIATE HYDS, PRESSR, RETURN & STABILIZER CYL LINES

1

D52800

COUPLING, QUICK, FEM

COUPLING - disconnect, female, parts list Figure 162

1шт.

2

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

3

D52667

HOSE

- pressure line to stabilizer valve, 36" (914 mm) long

1шт.

4

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Includes Ref. 5 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

6

D62348

VALVE

ASSEMBLY - stabilizer control, parts list Figure 212

1шт.

7

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- adjustable, 90 degree, Incl. Ref. 8

1шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

9

D42969

HOSE

- stabilizer valve to backhoe control valve, 36" (914 mm) long, Includes: Ref. 11

1шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

12

REF

INSTRUCTION

VALVE - backhoe control, 4 spool, see Figure 28 for proper valve

1шт.

13

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable, Incl. Ref. 14

1шт.

14

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

15

D58705

HOSE ASSY.

HOSE - return, backhoe control valve ro reservoir, 30" (762 mm) long

1шт.

16

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree, Incl. Ref. 17

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

18

D58706

HOSE ASSY.

HOSE - return, stabilizer control valve to reservoir, 18" (457 mm) long

1шт.

19

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

Return hoses 37º, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

1шт.

20

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

NUT, LOCK, Blkhd, 1 5/16"-12, Disconnect

1шт.

21

D52673

COUPLING, BREAK AWAY

COUPLING - disconnect, male, parts list Figure 162

1шт.

22

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring, Includes Ref. 23

4шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

24

D58048

HOSE

- stabilizer valve to cylinders, 41" (1041 mm) long

4шт.

25

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight, Includes: Ref. 26

4шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

27

REF

INSTRUCTION

CYLINDER - hydraulic stabilizer, see Figures 252 - 268 for proper cylinder

2шт.

28

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16" - 18 NC x 1-1/4"

2шт.

29

92-5

LOCK WASHER,5/16"

2шт.

30

R17319

CLAMP

-, Serial Range: hoses-frame

2шт.

31

D33552

BUSHING

SPACER - hose clamp

2шт.

32

D58045

BRACKET - mounting stabilizer valve

1шт.

33

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" - 16 NC x 1-1/2"

1шт.

34

92-6

LOCK WASHER,3/8"

1шт.

35

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

36

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

37

92-5

LOCK WASHER,5/16"

2шт.

38

25-106

NUT,3/8"-16, G5

- hex, 5/16" - 18 NC

2шт.
