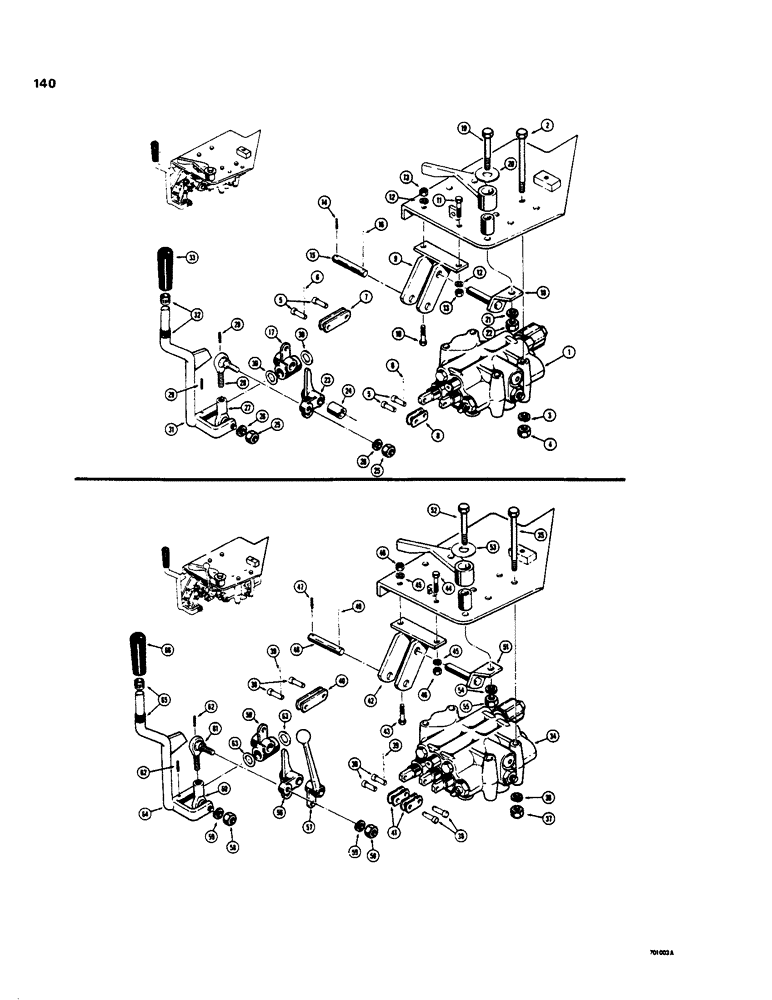

Запчасти Case 35 (140) - LOADER CNTRL VALVES & LINKAGE, USED ON LOADER MDLS W/ 2 SPOOL VALVE

1

D45040

VALVE

- loader control, spool, parts list Figure 172

1шт.

2

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

5

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Valve link 5/16" x .940"

4шт.

6

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

7

D34624

LINK

- valve, long

2шт.

8

D38651

LINK

- valve, short

2шт.

9

D37573

BRACKET

- lever and linkage mounting

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

25-106

NUT,3/8"-16, G5

-hex, 3/8" - 16 NC

2шт.

14

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

15

D37553

PIN

- pivot, Serial Range: lever-bracket

1шт.

16

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

17

D37575

LEVER

- pivot, loader lift section

1шт.

18

D37552

PIN

BRACKET - linkage mounting

1шт.

19

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8" - 16 NC x 2-1/2"

1шт.

20

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

21

92-6

LOCK WASHER,3/8"

1шт.

22

25-106

NUT,3/8"-16, G5

- hex, 3/8 - 16 NC

1шт.

23

D43966

LEVER

- pivot, loader dump section

1шт.

24

D37548

SLEEVE

SPACER - lever

1шт.

25

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF

2шт.

26

92-6

LOCK WASHER,3/8"

2шт.

27

D40908

BALL JOINT

JOINT - ball, female

1шт.

28

D46074

AXLE PIN

JOINT - ball, male

1шт.

29

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

2шт.

30

A26411

WASHER

- special

1шт.

31

D43970

LEVER

- loader control, lift and dump

1шт.

32

D38662

RING

- tolerance, knob locking

2шт.

33

D37550

KNOB

- control lever

1шт.

34

D52042

LOCK VALVE

VALVE - loader control, 3 spool, parts list Figure 172, used with D51347 4-in-1 bucket

1шт.

35

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

Used on loader models w/ 3 spool valve Hex, 3/8"-16 x 4", G5

4шт.

36

92-6

LOCK WASHER,3/8"

used on loader models w/ 3 spool valve 3/8"

4шт.

37

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, used on loader models w/ 3 spool valve

4шт.

38

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Valve link, Used on loader models w/ 3 spool valve 5/16" x .940"

6шт.

39

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , Used on loader models w/ 3 spool valve 3/32" x 5/8"

6шт.

40

D34624

LINK

- valve, long, used on loader models w/ 3 spool valve

2шт.

41

D38651

LINK

- valve, short, used on loader models w/ 3 spool valve

4шт.

42

D37573

BRACKET

- lever and linkage mounting, used on loader models w/ 3 spool valve

1шт.

43

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Used on loader models w/ 3 spool valve Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

44

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Used on loader models w/ 3 spool valve Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

45

92-6

LOCK WASHER,3/8"

used on loader models w/ 3 spool valve 3/8"

2шт.

46

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, used on loader models w/ 3 spool valve

2шт.

47

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, , Used on loader models w/ 3 spool valve 1/8" x 1", Slotted

1шт.

48

D37553

PIN

- pivot lever to bracket, used on loader models w/ 3 spool valve

1шт.

49

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), , Used on loader models w/ 3 spool valve 1/8" x 1"

1шт.

50

D37575

LEVER

- pivot, loader lift section, used on loader models w/ 3 spool valve

1шт.

51

D37552

PIN

BRACKET - linkage mounting, used on loader models w/ 3 spool valve

1шт.

52

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8" - 16 NC 2-1/2", used on loader models w/ 3 spool valve

1шт.

53

95-6

WASHER,3/8"

- flat, , used on loader models w/ 3 spool valve 3/8"

1шт.

54

92-6

LOCK WASHER,3/8"

used on loader models w/ 3 spool valve 3/8"

1шт.

55

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, used on loader models w/ 3 spool valve

1шт.

56

D43966

LEVER

- pivot, loader dump section, used on loader models w/ 3 spool valve

1шт.

57

D38640

LEVER

- loader control, clam, used on loader models w/ 3 spool valve

1шт.

58

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF, used on loader models w/ 3 spool valve

2шт.

59

92-6

LOCK WASHER,3/8"

used on loader models w/ 3 spool valve 3/8"

2шт.

60

D40908

BALL JOINT

JOINT - ball, female, used on loader models w/ 3 spool valve

1шт.

61

D46071

BALL JOINT

JOINT - ball, male, used on loader models w/ 3 spool valve

1шт.

62

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, , Used on loader models w/ 3 spool valve 1/8" x 1", Slotted

2шт.

63

A26411

WASHER

- special, used on loader models w/ 3 spool valve

1шт.

64

D43970

LEVER

- loader control, lift and dump, used on loader models w/ 3 spool valve

1шт.

65

D43970

LEVER

RING - tolerance, knob locking, used on loader models w/ 3 spool valve

2шт.

66

D37550

KNOB

KONB - control lever, used on loader models w/ 3 spool valve

1шт.
