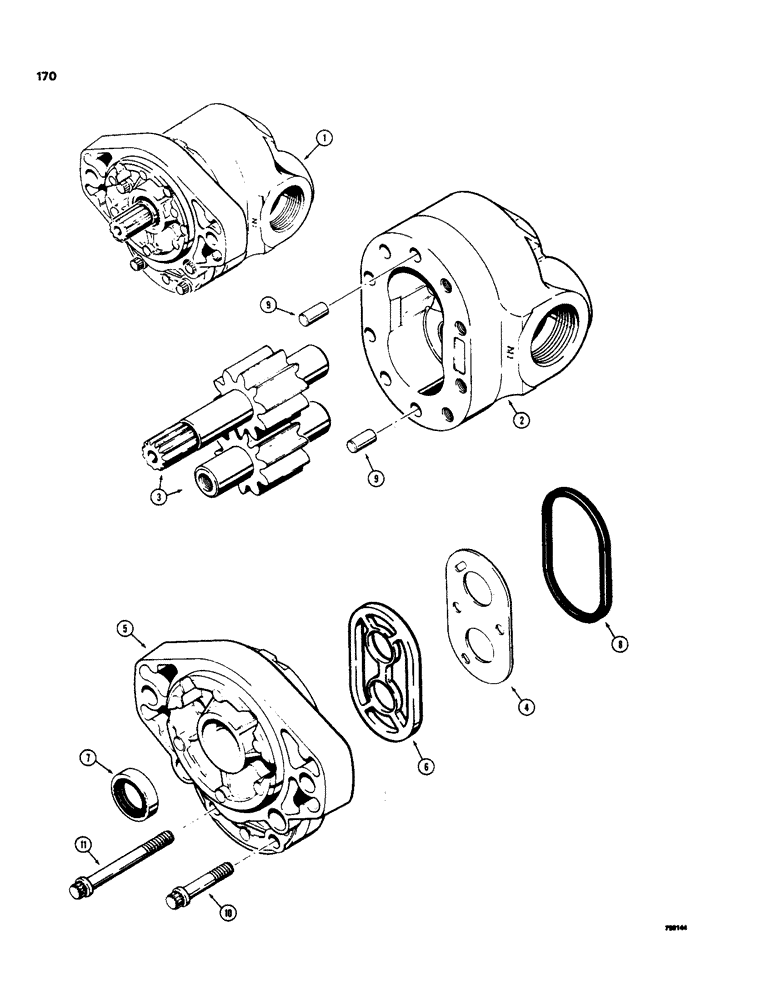

Запчасти Case 35 (170) - TRW HYDRAULIC PUMP

1

D49241

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, complete, TRW no. 19-920178-00 or GP92033, for service order D53690, Includes: Ref. 2 - 11

1шт.

For identification see name plate on pump. Check make and model number of pump before ordering parts. D53690 Service Replacement Pump can be either a Cessna or TRW Pump as shown on this Fig. and Fig. 170

1шт.

1

80083

BOLT

PUMP ASSEMBLY - hydraulic, complete, TRW no. GP92034, Includes: Ref. 2 - 11

1шт.

For identification see name plate on pump. Check make and model number of pump before ordering parts. D53690 Service Replacement Pump can be either a Cessna or TRW Pump as shown on this Fig. and Fig. 170

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - gear, for service order D53690

1шт.

3

D50103

GEAR

SET - dirve and driven

1шт.

N6297

COVER

KIT - cover and seal

1шт.

4

D50104

PLATE

- pressure, Includes: Ref. 5 - 9

1шт.

Part of KIT, part number D83065

1шт.

5

NSS

NOT SOLD SEPARAT

COVER - shaft end

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - cover to pressure plate, can be a one piece or three piece seal

1шт.

Part of KIT, part number D83065

1шт.

7

D52477

SEAL

- shaft

1шт.

Part of KIT, part number D83065

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - cover to body, replace o-ring on some pumps

1шт.

Part of KIT, part number D83065

1шт.

9

NSS

NOT SOLD SEPARAT

DOWEL - cover

2шт.

10

166-48

SCREW,Flg, 3/8" - 16 x 1 3/4", Gr 8

- Ferry head, 3/8" - 16 NC x 1-3/4"

3шт.

11

166-54

12 PT SCREW,Flg, 3/8" - 16 x 3 1/4", Gr 8

SCREW - Ferry head, 3/8" - 16 NC x 3-1/4"

5шт.

D83065

GASKET KIT

KIT - seal repair, includes: Refs. 4, 6, 7 and 8 above

1шт.
