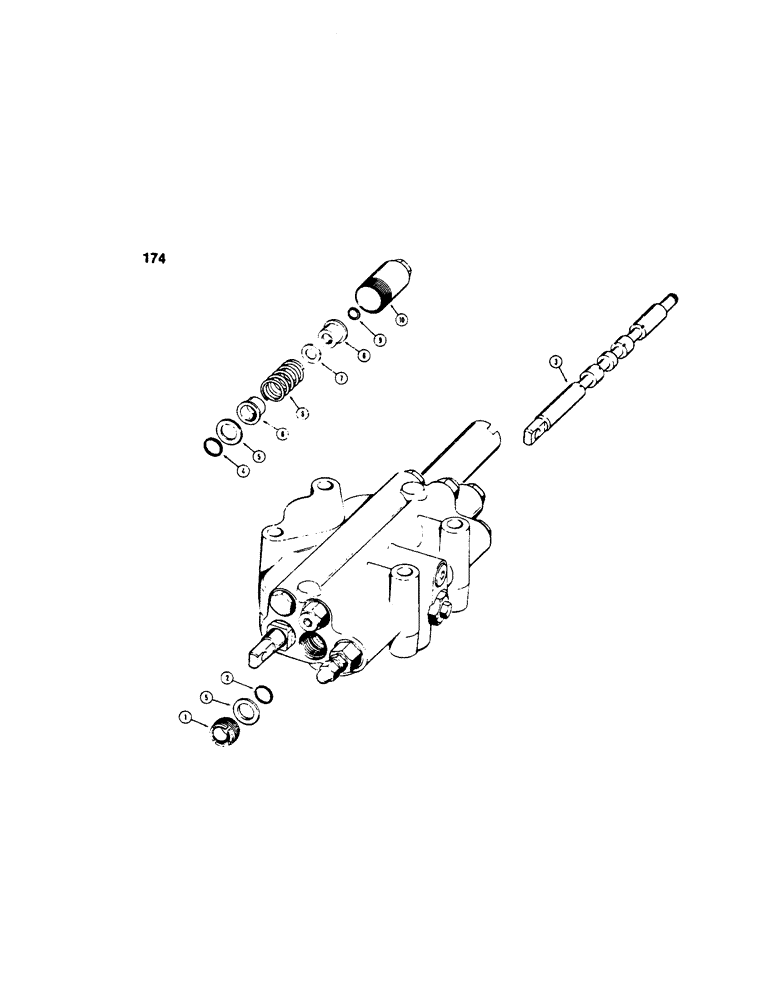

Запчасти Case 35 (174) - LOADER CNTRL VALVE, LOADER TILT & CLAM SPOOLS

D37050

SPOOL

ASSEMBLY - loader tilt and clam, color code - back or letter code W. .73710" to .73709", Includes: Ref. 1 - 10

1шт.

D37051

SPOOL

ASSEMBLY - loader tilt and clam, color code - blue of letter code - X .73710" to .73719", Includes: Ref. 1 - 10

1шт.

D37052

SPOOL

ASSEMBLY - loader tilt and clam, color code - yellow or letter code - Y. .73720" to .73729", Includes: Ref. 1 - 10

1шт.

D37053

SPOOL

ASSEMBLY - loader tilt and clam, color code - green or letter code - Z. .73730" to 73740", Includes: Ref. 1 - 10

1шт.

1

L37044

GLAND AND WIPER - spool

1шт.

2

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- gland

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

4

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

5

A14535

RETAINER

- seal

2шт.

6

A14533

BRONZE BUSHING

RETAINER - spring

2шт.

7

A25286

WASHER

- special

1шт.

8

A14534

SPRING

- spool return

1шт.

9

A27020

RING

SNAP RING - spring retainer

1шт.

10

A14529

CAP

- spool

1шт.
