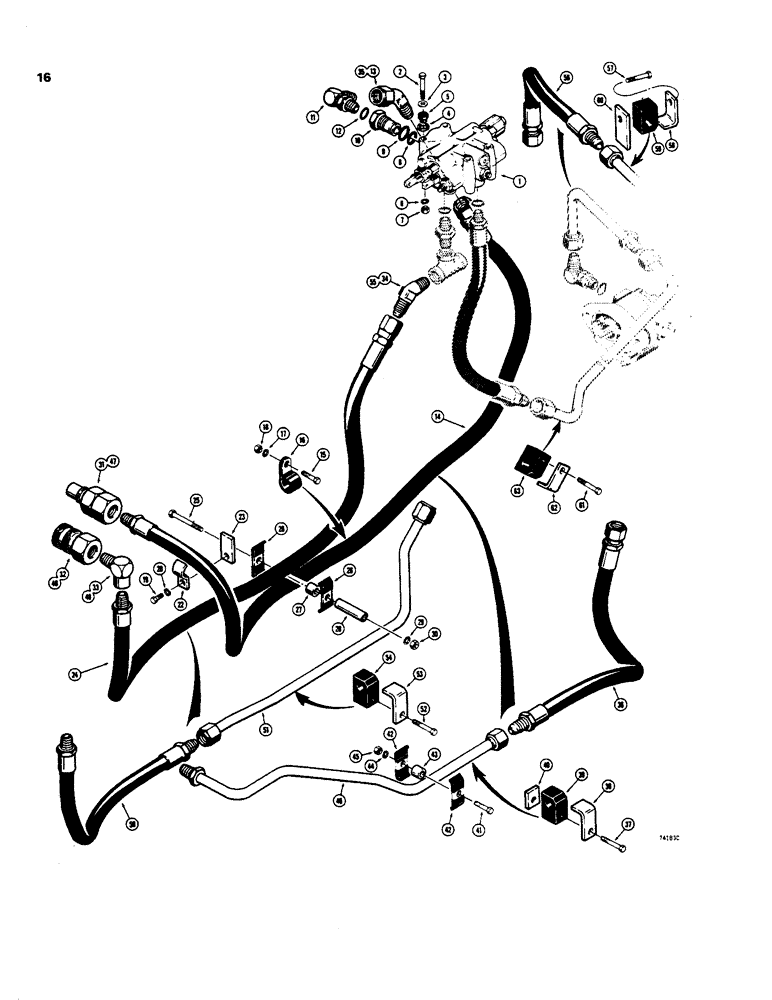

Запчасти Case 35 (016) - PRIMARY HYDS, USED ON MDLS W/O HYDROSTATIC DRIVE W/NOISE ABSORPTION MODIF. LOADER SN 5228454 & AFT

1

REF

INSTRUCTION

VALVE - loader control, see Figure 172 for proper valve, all models

1шт.

2

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- hex, 3/8" - NC x 4-1/2", all models

4шт.

3

95-6

WASHER,3/8"

- flat, , all models 3/8"

4шт.

4

195-45

WASHER,3/4"

All models 3/4"

4шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

WASHER - rubber, shock mounting, all models

4шт.

6

92-6

LOCK WASHER,3/8"

all models 3/8"

4шт.

7

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, all models

4шт.

D61251

FITTING

CONNECTOR ASSEMBLY - power beyond, all models, Includes: Ref. 8 - 10

1шт.

8

L32680

RING

O-RING - small, all models

1шт.

9

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- large, all models

1шт.

10

NSS

NOT SOLD SEPARAT

CONNECTOR - power beyond, all models

1шт.

11

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, All models, Includes Ref. 12 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, All models

1шт.

13

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- swivel, 37 degree, at adjustable elbow, all models

1шт.

14

D59917

HOSE - power beyond at loader valve to disconnect coupling, 80" (2032 mm) long, models w/ cab

1шт.

15

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Models w/ cab Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

16

D40471

CLAMP

- hose to frame, models w/ cab

1шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Models w/cab 3/8"

1шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Models w/ cab 3/8"-16, G5

1шт.

19

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Models w/ cab Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

20

92-6

LOCK WASHER,3/8"

models w/ cab 3/8"

1шт.

21

RESERVED

1шт.

22

D59988

CLAMP - hose to floor plate, models w/ cab

1шт.

23

D61560

SPACER - hose clamp, models w/ cab

1шт.

24

D59916

HOSE ASSY.

HOSE - return, disconnect to loader valve, 74" (1880 mm) long, models w/ cab

1шт.

25

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8" - 16 NC x 2-3/4", models w/ cab

1шт.

26

R15257

CLAMP

- hose, models w/ cab

2шт.

27

D44228

BUSHING

SPACER - clamp, models w/ cab

1шт.

28

L42723

SPACER

- clamp to fender, models w/ cab

1шт.

29

92-6

LOCK WASHER,3/8"

models w/ cab 3/8"

1шт.

30

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, models w/ cab

1шт.

31

D52694

QUICK MALE COUPLING

COUPLING - quick disconnect, male half, parts list Figure 162, models w/ cab

1шт.

32

D52800

COUPLING, QUICK, FEM

COUPLING - quick disconnect, female half, parts list Figure 162, models w/ cab

1шт.

33

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street, Models w/ cab 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

34

218-547

ELBOW,45 Degree, 1 5/16"-12 37 Degree x 3/4"-14, NPTF

- male, 45 degree, models w/ cab

1шт.

35

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 degree, adjustable, at adjustable elbow, models w/ rops

1шт.

36

D55294

HOSE ASSY.

HOSE - pressure to backhoe control valve, 26" (659 mm) long, models w/ rops

1шт.

37

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Models w/ ROPS Hex, 3/8"-16 x 2 1/4", G5

1шт.

38

D62223

BRACKET - tube mounting, models w/ rops

1шт.

39

D62224

PAD - bracket, models w/ rops

1шт.

40

D43114

BLOCK - tapped, tube mounting, models w/ rops

1шт.

41

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Models w/ ROPS Hex, 3/8"-16 x 2 1/4", G5

1шт.

42

D41160

CLAMP

- tube retaining, models w/ rops

2шт.

43

L42723

SPACER

- clamp

1шт.

44

92-6

LOCK WASHER,3/8"

1шт.

45

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

46

D55286

TUBE - pressure to backhoe control valve

1шт.

47

D52694

QUICK MALE COUPLING

COUPLING - quick disconnect, male half, parts list Figure 162

1шт.

48

D52800

COUPLING, QUICK, FEM

COUPLING - quick disconnect, female half, parts list Figure 162

1шт.

49

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

50

D49118

HOSE

- crossover, 33" (838 mm) long

1шт.

51

D60654

TUBE

- crossover, Serial Range: hose-valve

1шт.

52

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

53

D62223

BRACKET - tube mounting

1шт.

54

D62224

PAD - bracket

1шт.

55

218-547

ELBOW,45 Degree, 1 5/16"-12 37 Degree x 3/4"-14, NPTF

- male, 45 degree

1шт.

56

D55295

HOSE ASSY.

HOSE - pressure frame hydraulic pump, 17" (432 mm) long

1шт.

57

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

58

D62223

BRACKET - tube mounting

1шт.

59

D62224

PAD - tube bracket

1шт.

60

D55292

SPACER - bracket

1шт.

61

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

62

D62223

BRACKET - tube mounting

1шт.

63

D62224

PAD - bracket

1шт.
