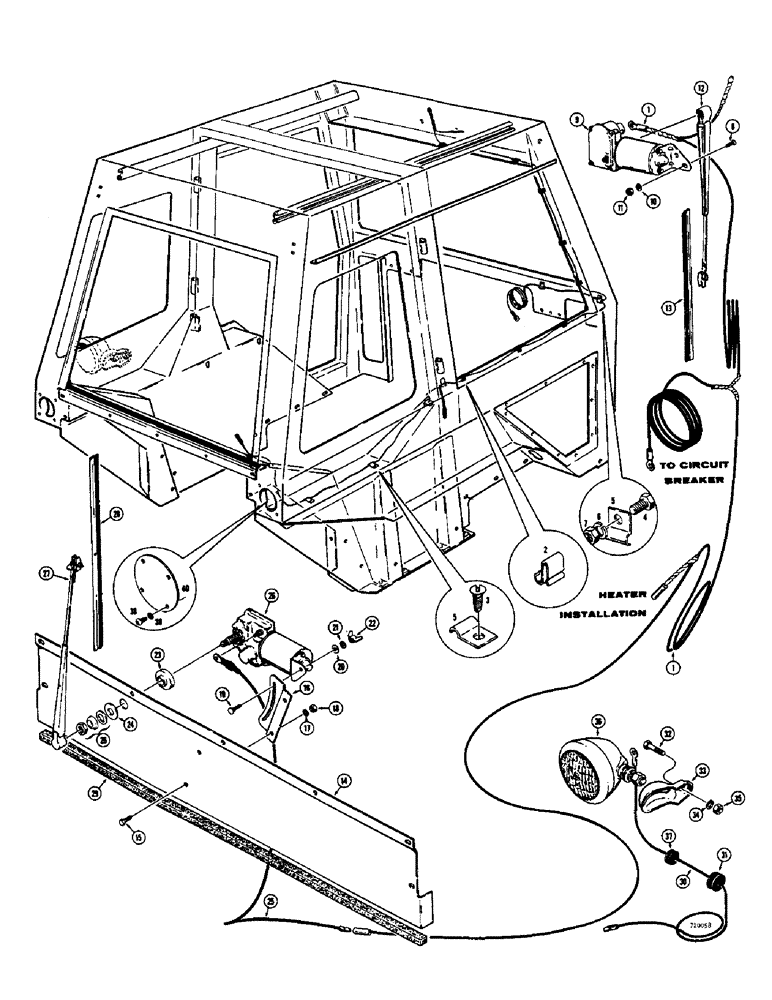

Запчасти Case 580B (250) - OPERATORS CAB, CAB ELECTRICAL SYSTEM (09) - CHASSIS/ATTACHMENTS

F93163

CAB - operator (Machinery item), Includes: Ref. 1 - 13

1шт.

1

F42215

- wiring, cab

1шт.

2

F54095

wire harness to cab (Push-on type)

1шт.

3

187-1075

self-tapping (#12-24 N.C. x 1/2")

4шт.

4

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

5

A26673

CLIP

wire (Bolt-on type)

6шт.

6

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

7

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

8

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

machine, round head (#10-24 N.C. x 1/2")

1шт.

9

F93209

WIPER MOTOR

ASSEMBLY front

1шт.

10

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

11

129-17

NUT,Hex, #10 - 24

hex. ( N.C.) #10-24

1шт.

12

F42213

ARM

windshield wiper (16" long)

1шт.

13

F42214

WIPER

BLADE - windshield (18" long)

1шт.

14

F42134

PANEL

rear closure and wiper mounting (used with backhoe models only)

1шт.

15

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Used with backhoe models only Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

16

F42211

wiper adjustment, (used with backhoe models only)

1шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, (Used with backhoe models only) 1/4"

2шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Used with backhoe models only

2шт.

19

11-310

CARRIAGE BOLT,Short NK, 3/16"-24 x 5/8", G2, Full Thd

BOLT, CARRIAGE, , Used w/ backhoe models only) Short NK, 3/16"-24 x 5/8", G2, Full Thd

1шт.

20

195-101

WASHER,3/16"

plain (), (used with backhoe models only) 3/16"

1шт.

21

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Used with backhoe models only #10

1шт.

22

129-402

NUT - winged (#10-24 N.C.), (used with backhoe models only)

1шт.

23

F42212

SPACER - wiper motor to panel, (used with backhoe models only)

1шт.

24

195-541

WASHER,5/8", SAE

- plain (5/8"), Wiper mounting, (used with backhoe models only)

1шт.

25

F42216

WIRE - jumper, cab harness to rear wiper, (used with backhoe models only)

1шт.

26

F93209

WIPER MOTOR

MOTOR ASSEMBLY - rear , (used with backhoe models only)

1шт.

Part includes D71417 washer, D71418 spacer, D71419 nut (as shown in illustration).

1шт.

27

F42213

ARM

wiper (16" long), (used with backhoe models only)

1шт.

28

F42214

WIPER

BLADE - (18" long), (used with backhoe models only)

1шт.

29

F42136

SEAL

- rear closure panel (39.2 inches long), (used with backhoe models only)

1шт.

30

A37516

harness to rear light, (used with backhoe models only)

1шт.

31

D50667

light at fender (Inner), (used with backhoe models only)

1шт.

32

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(Used with backhoe models only) Hex, 3/8"-16 x 1 1/2", G5

1шт.

33

A34046

BRACKET

light mounting, (used with backhoe models only)

1шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Used with backhoe models only) 3/8"

1шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Used w/ backhoe models only) 3/8"-16, G5

1шт.

36

A20965

LAMP BASE

LIGHT - backhoe, rear (Standard), (used with backhoe models only)

1шт.

37

L13765

GROMMET

light, wire at fender (Outer), (used with backhoe models only)

1шт.

38

187-1075

self-tapping (#12-24 N.C. x 1/2"), (used with backhoe models only)

8шт.

39

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, (Used with backhoe models only) 1/4"

8шт.

40

F42106

rear light (Used if optional rear light is not installed), (used with backhoe models only)

2шт.
