(045A) - FUEL INJECTION PUMP AND DRIVE, (188) DIESEL ENGINE

Запчасти Case 580B (045A) - FUEL INJECTION PUMP AND DRIVE, (188) DIESEL ENGINE (03) - FUEL SYSTEM

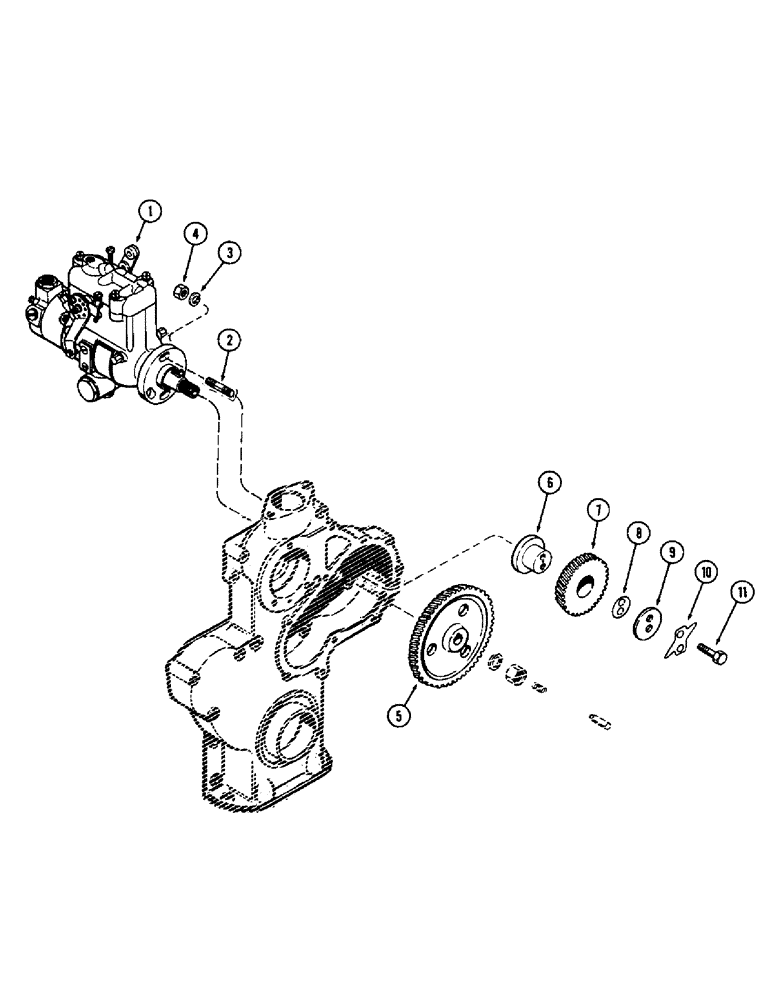

Схема запчастей Case 580B - (045A) - FUEL INJECTION PUMP AND DRIVE, (188) DIESEL ENGINE (03) - FUEL SYSTEM
10
8
3
2
7
6
11
9
4
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP ASSY. - fuel injection, w/mech. shuttle (See Figures 44 & 45A)

1шт.

1

REF

INSTRUCTION

PUMP ASSY. - fuel injection, w/power shuttle (See Figures 48 & 49A)

1шт.

2

G11204

STUD

3/8" N.C. x 1-7/16"

3шт.

3

A30043

WASHER

pump mounting stud

3шт.

4

25-106

NUT,3/8"-16, G5

N.C. hex.

3шт.

5

G2076

GEAR

drive, injection pump

1шт.

6

G11726

HUB

idler gear, pump drive

1шт.

7

G11852

GEAR

idler (Includes bushing)

1шт.

8

G11728

SHIM,.005" Thk

Idler gear

1шт.

8

G11729

SHIM,.006" Thk

Idler gear

1шт.

8

G11730

SHIM,.007" Thk

Idler gear

1шт.

8

G11731

SHIM,.009" Thk

Idler gear

1шт.

9

G11732

PLATE

thrust, idler gear

1шт.

10

G11746

PLATE

lock, idler gear

1шт.

11

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

N.C. hex.

2шт.
