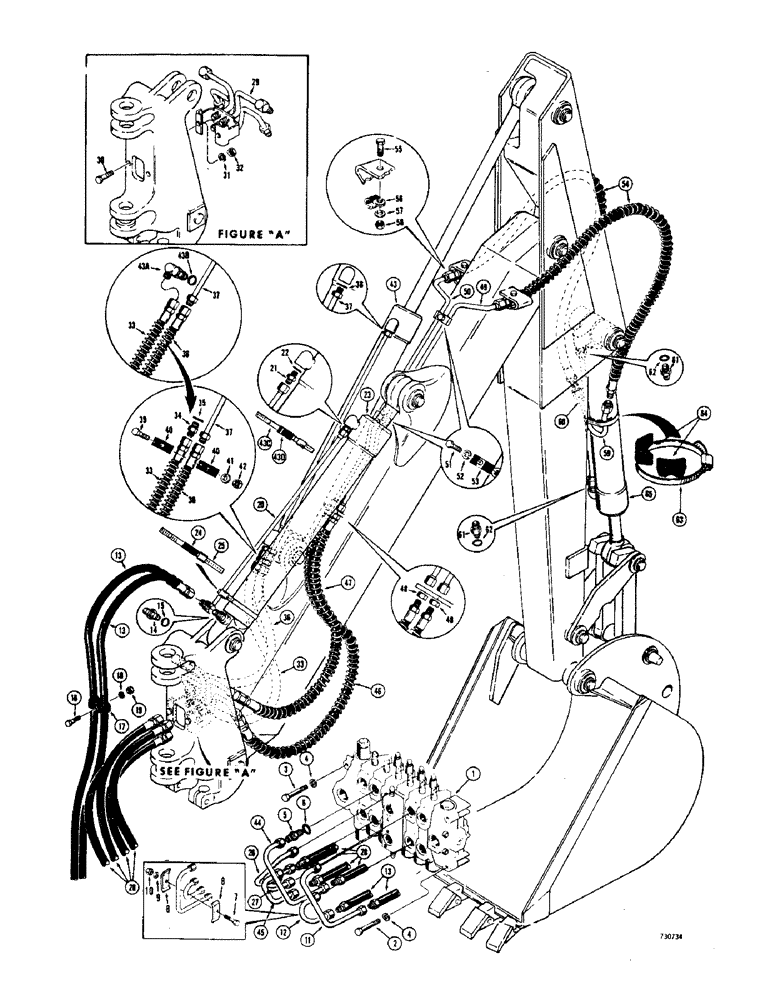

Запчасти Case 36 (38) - BOOM, CROWD AND BUCKET CYLINDER HYDRAULICS

1

D38705

VALVE - hydraulic, backhoe control (Parts list figure 44)

1шт.

2

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

2шт.

3

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

4

92-8

LOCK WASHER,1/2"

3шт.

5

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 6

6шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

7

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

3шт.

8

D20045

PLATE ASSY.

CLAMP - tube

6шт.

9

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16")

3шт.

10

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

3шт.

11

D40649

TUBE

- boom section, upper port, cylinder hydraulics

1шт.

12

D40642

TUBE

- boom section, lower port, cylinder hydraulics

1шт.

13

D44679

HOSE ASSY.

HOSE - valve to boom cylinder (64" long), hydraulics

2шт.

14

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, boom cylinder hydraulics, Incl. Ref. 15

1шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, boom cylinder hydraulics

1шт.

16

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5, Boom cylinder hydraulics

1шт.

17

D42833

CLAMP

- hose, boom cylinder hydraulics

2шт.

18

92-7

LOCK WASHER,7/16"

boom cylinder hydraulics 7/16"

1шт.

19

131-8

LOCK NUT,7/16"-14, GB

NUT, LOCK, , Boom cylinder hydraulics 7/16"-14, GB

1шт.

20

D40653

TUBE - boom cylinder, rod end, hydraulics

1шт.

21

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., male, straight, boom cylinder, Incl. Ref. 22

1шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, boom cylinder hydraulics

1шт.

23

REF

INSTRUCTION

CYLINDER - hydraulic, boom (5" I.D. x 39-3/16" stroke) See figure 58 for proper cylinder

1шт.

24

D46440

SADDLE

SPACER - clamp, boom cylinder hydraulics

1шт.

25

214-277

HOSE CLAMP,#100, 5.88" - 6.75", Type F Worm

CLAMP - tube to cylinder, boom, hydraulics

1шт.

26

D40649

TUBE

- crowd section, upper port, cylinder hydraulics

1шт.

27

D40642

TUBE

- crowd section, lower port, cylinder hydraulics

1шт.

28

D42600

HOSE

- valve to manifold (22-1/2" long), crowd cylinder hydraulics

4шт.

29

D44652

MANIFOLD

- hose, at swing tower, crowd cylinder hydraulics

1шт.

30

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Crowd cylinder hydraulics Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

31

92-6

LOCK WASHER,3/8"

crowd cylinder hydraulics 3/8"

2шт.

32

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), crowd cylinder hydraulics

2шт.

33

D44675

HOSE ASSY.

HOSE - manifold to crowd cylinder, closed end (49-1/2 long), hydraulics

1шт.

34

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight (If used), crowd cylinder hydraulics, Incl. Ref. 35

1шт.

35

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL- "O" ring, crowd cylinder hydraulics

1шт.

36

D45549

HOSE ASSY.

HOSE - manifold to crowd cylinder, rod end (47-1/2" long), hydraulics

1шт.

37

D45536

TUBE - crowd cylinder, rod end, hydraulics, Includes: Ref. 38

1шт.

38

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, crowd cylinder hydraulics

1шт.

39

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

(If used), Crowd cylinder hydraulics Hex, 5/16"-18 x 2", G5

1шт.

40

D33316

CLAMP

- hose (If used), crowd cylinder hydraulics

2шт.

41

195-21

WASHER,5/16"

- plain () If used, Crowd cylinder hydraulics 5/16"

1шт.

42

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC) If used, crowd cylinder hydraulics

1шт.

43

REF

INSTRUCTION

CYLINDER - hydraulic, crowd (4-1/2" I.D. x 40-1/8" stroke) See figure 58 for proper cylinder

1шт.

43a

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- adjustable, 90 degrees (If used), crowd cylinder hydraulics, Incl. Ref. 43B

1шт.

43b

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, crowd cylinder hydraulics

1шт.

43c

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

CLAMP - tube to cylinder (If used), crowd, hydraulics

1шт.

43d

D46440

SADDLE

SPACER - clamp (If used), crowd cylinder hydraulics

1шт.

44

D40640

TUBE - bucket section, upper port

1шт.

45

D40651

TUBE

- bucket section, lower port

1шт.

46

D44678

HOSE

- manifold to bucket cylinder, rod end (58" long)

1шт.

47

D44677

HOSE ASSY.

HOSE - manifold to bucket cylinder, closed end (60" long)

1шт.

48

D26231

NUT

- hex., jam (Special)

2шт.

49

D44680

TUBE - bucket cylinder, R.H.

1шт.

50

D44682

TUBE - bucket cylinder, L.H.

1шт.

51

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

52

92-6

LOCK WASHER,3/8"

2шт.

53

D40236

CLAMP

- tube

2шт.

54

D45545

HOSE ASSY.

HOSE - bucket cylinder, upper (51-1/2" long)

2шт.

55

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

56

D40471

CLAMP

- tube

2шт.

57

195-25

WASHER,3/8"

- plain () 3/8"

2шт.

58

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC)

2шт.

59

D46088

TUBE - bucket cylinder, closed end

1шт.

60

D46131

TUBE

- bucket cylinder, rod end

1шт.

61

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 62

2шт.

62

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

63

214-272

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

CLAMP - tube to cylinder

1шт.

64

D38648

BLOCK

SPACER - clamp

2шт.

65

REF

INSTRUCTION

CYLINDER - hydraulic, bucket (4" I.D. x 27-1/4" stroke) See figure 58 for proper cylinder

1шт.
