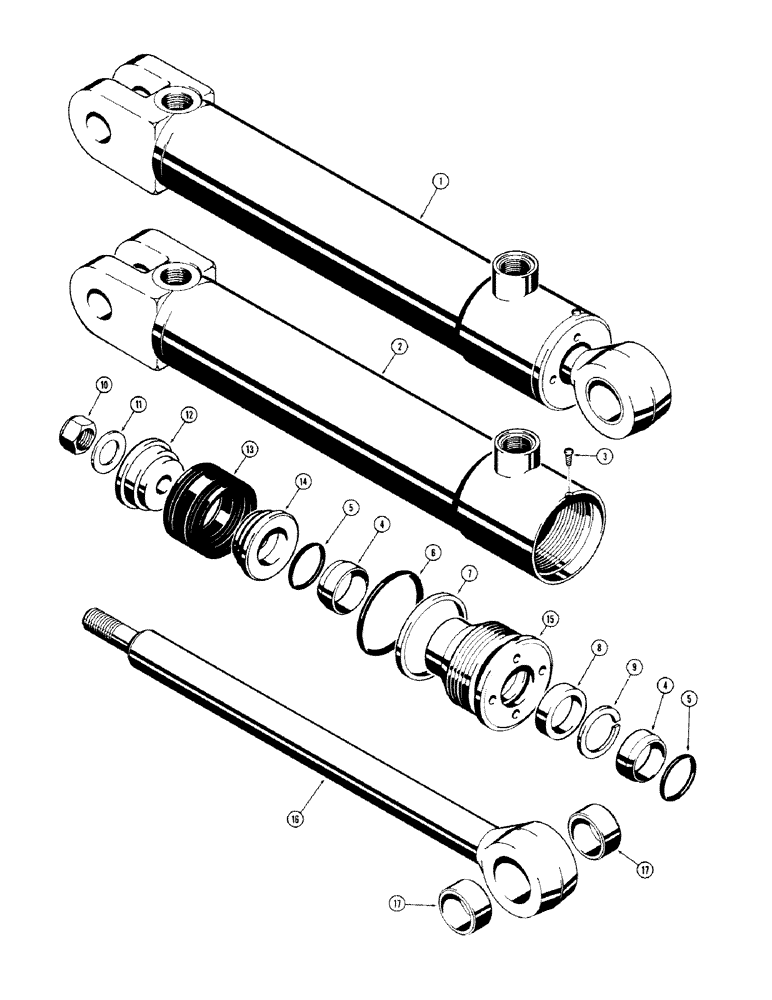

Запчасти Case 480CK (48) - D28279 BACKHOE STABILIZER CYLINDER (35) - HYDRAULIC SYSTEMS

1

D28279

CYLINDER - hydraulic, stabilizer (2-1/2" dia. x 11" stroke), Includes: Ref. 2 - 17

1шт.

2

D28282

TUBE - cylinder

1шт.

D42867

GLAND

KIT - packing, gland, Includes: Ref. 3 - 9

1шт.

3

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

4

D27705

WIPER

- rod

2шт.

5

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O" ring, wiper (Use on D27854 gland only)

2шт.

6

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

7

D27856

RING

- backup, gland seal

1шт.

8

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- rod

1шт.

9

D28497

RING

- backup, rod seal

1шт.

10

131-15

LOCK NUT,3/4"-16, GB

NUT, LOCK, 3/4"-16, GB

1шт.

11

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

1шт.

12

D28364

PISTON

- split, nut end

1шт.

13

D28373

PACKING

- piston

1шт.

14

D28362

SCREW

- split, eye end

1шт.

15

D27854

GLAND

- packing (When stock is exhausted, use D45065 gland for service)

1шт.

D45065

GLAND

- packing

1шт.

16

D28277

ROD - piston (1-1/4" dia.), Includes: Ref. 17

1шт.

17

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- rod

2шт.
