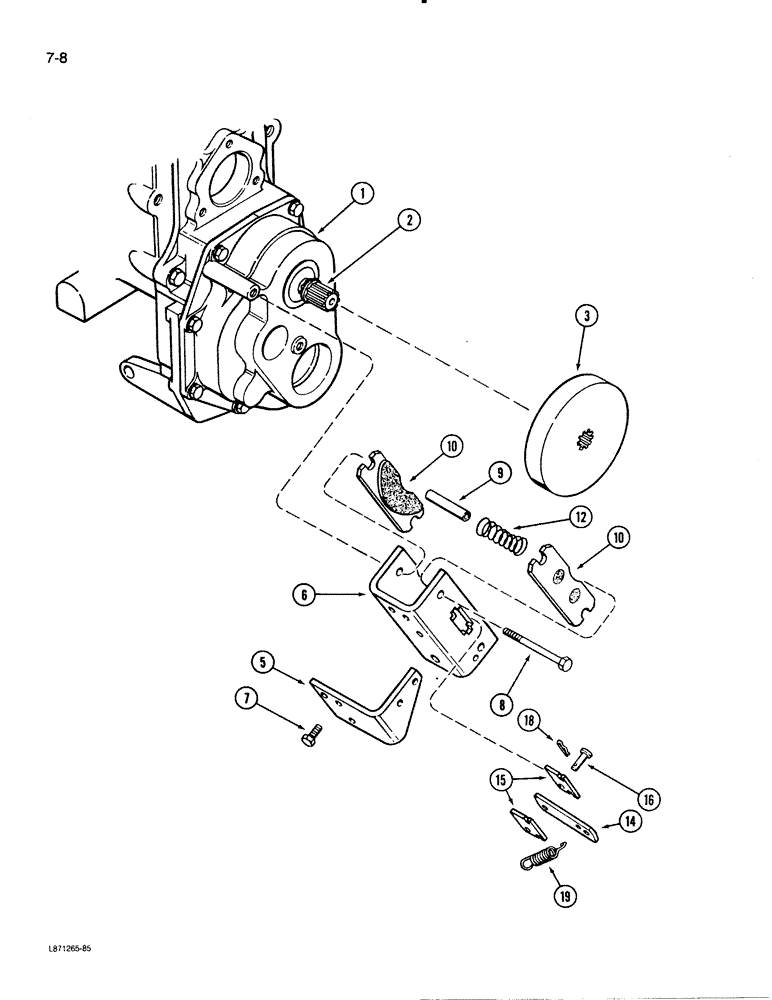

Запчасти Case 480E (7-08) - TRANSAXLE PARK BRAKE, 4 WHEEL DRIVE (07) - BRAKES

1

REF

INSTRUCTION

COVER - transfer gearbox (See Figure 6-66)

1шт.

2

REF

INSTRUCTION

SPLINE - stub (See Figure 6-66)

1шт.

3

A168790

DISC

DISK - brake, caliper

1шт.

A182779

BRAKE

BRAKE ASSEMBLY - park (Replaces A182271), Includes: Ref. 5 - 19

1шт.

5

A52380

BRACKET

BRACKET - mounting, cable

1шт.

6

A52256

HOUSING

HOUSING - brake

1шт.

7

113-335

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5, Full Thd

BOLT, Hex, 7/16"-14 x 3/4", G5, Full Thd

3шт.

8

A52263

BOLT

BOLT - retaining, brake

2шт.

9

A52261

SPACER

SPACER - stator

2шт.

10

A182740

BRAKE PAD

PAD, BRAKE PAD - brake (Replaces A52255)

2шт.

12

A52262

SPRING

SPRING - compression

2шт.

14

A52379

LEVER

LEVER - actuating

1шт.

15

A52257

PIVOT

PLATE - pivot

2шт.

16

A52259

PIN

PIN - clevis, pivot

1шт.

18

A52260

PIN

PIN - retainer, pivot pin

1шт.

19

A52264

SPRING

SPRING - extension

1шт.
