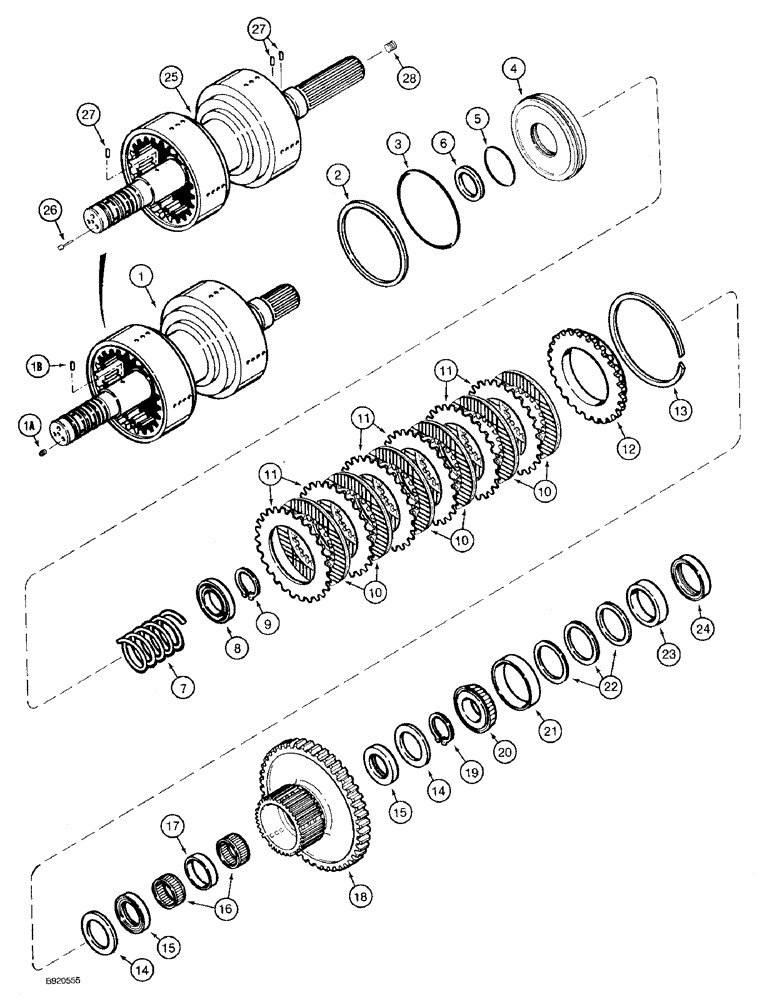

Запчасти Case 580SK (6-18) - TRANSAXLE ASSEMBLY, POWER SHUTTLE, INPUT SHAFT AND FORWARD CLUTCH (06) - POWER TRAIN

A190502

TRANSMISSION

TRANSAXLE ASSEMBLY complete, 2 wheel drive without PTO only, includes parts listed on Figures 6-18 - 6-26 and 6-62 - 7-04, order component parts

1шт.

1345899C1

TRANSMISSION

TRANSAXLE ASSEMBLY complete, 2 wheel drive with PTO only, includes parts listed on Figures 6-18 - 6-26 and 6-62 - 7-04, order component parts

1шт.

1345875C1

TRANSMISSION

TRANSAXLE ASSEMBLY complete, 4 wheel drive without PTO only, includes parts listed on Figures 6-18 - 6-26 and 6-62 - 7-04, order component parts

1шт.

1345898C1

TRANSAXLE ASSEMBLY complete, 4 wheel drive with PTO only, includes parts listed on Figures 6-18 - 6-26 and 6-62 - 7-04, order component parts, Includes: Ref. 1 through 28 and P/N A190449

1шт.

A190449

INVERTER SHAFT

SHAFT ASSEMBLY input, 440 mm long, if used, order 1995409C1, see Ref. 25-28, Includes: Ref. 1 through 13

1шт.

1

A190342

SHAFT

input spline 44 mm long, shuttle, Includes: Ref. 1A and 1B

1шт.

1a

83-3446

SET SCREW,Hex Soc, 7/16"-14 x 3/8"

SCREW set, hex socket, 7/16 NC x 3/8 inch

3шт.

1b

138-294

LOCK PIN,1/8" x 1/4", Slotted

Pin, , Cam 1/8" x 1/4", Slotted

2шт.

2

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

piston, external

1шт.

3

238-5156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 5, 75 Duro

Piston, external (Replaces A158050) -156, 70 Duro, 4.237" ID x .103" Thk

1шт.

4

A159292

PISTON

clutch

1шт.

5

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

Piston, internal (Replaces A159296) -137, 90 Duro, 2.05" ID x .103" Thk

1шт.

6

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

SEAL piston, internal

1шт.

7

A188842

VALVE SPRING

SPRING piston, return

1шт.

8

A186965

RETAINER,40.38mm ID x 64.63mm OD x 4.75mm Thk

spring

1шт.

9

100-16156

SNAP RING,#156, Ext

Ring, Snap, (Replaces A144595 ring) #156, Ext

1шт.

10

A188946

DRIVE PLATE,81.9mm ID x 127mm OD x 2.6mm Thk

PLATE clutch, friction

6шт.

11

A175806

PLATE

clutch, separator

6шт.

12

1997122C1

PLATE

clutch, backing, replaces A178020 plate

1шт.

13

A158227

CIRCLIP

RING retaining, backing plate

1шт.

14

A159463

SHIM,40.05mm ID x 59.94mm OD x 2.25mm Thk

WASHER thrust

2шт.

15

A175486

THRUST BEARING,40.05mm ID x 61.85mm OD x 3.85mm W

BEARING thrust

2шт.

16

A175487

NEEDLE BEARING,39.99mm ID x 45.02mm OD x 16.8mm W

BEARING roller, needle

2шт.

17

A175489

SPACER,41mm ID x 44mm OD x 9.9mm L

bearing

1шт.

18

1995222C1

SPROCKET ASSY.

GEAR forward, with hub, 81 teeth, welded, replaces A190296 cast gear

1шт.

19

100-16150

SNAP RING,#150, Ext

Ring, Snap, (Replaces T37909 ring) #150, Ext

1шт.

20

A188709

BEARING CONE,38mm ID x 17mm W

tapered roller

1шт.

21

61801C1

BEARING CUP,63mm OD x 13.5mm W

CUP tapered roller bearing

1шт.

22

A159443

SHIM,52mm ID x 62.58mm OD x 0.08mm Thk

Input shaft bearing 0.076mm Thk

1шт.

22

A159442

SHIM,0.127mm Thk

Input shaft bearing 0.127mm Thk

1шт.

22

A159441

SHIM,0.177mm Thk

Input shaft bearing 0.177mm Thk

1шт.

22

A188792

SHIM,52mm ID x 62.58mm OD x 0.5mm Thk

Input shaft bearing 0.508mm Thk

1шт.

23

A175690

SPACER

input shaft

1шт.

24

A158371

OIL SEAL,50.72mm ID x 66.77mm OD x 8.33mm Thk

oil, input shaft

1шт.

1995409C1

INVERTER SHAFT

SHAFT ASSEMBLY input, 466 mm long, also includes Ref. 2-13 above, if used, Includes: Ref. 25 through 28

1шт.

25

1995408C1

DRIVE SHAFT

SHAFT input spline 70 mm long, shuttle, Includes: Ref. 26, 27 and 28

1шт.

26

1342851C1

PLUG

expansion

3шт.

27

38-1804

LOCK PIN,3.17mm OD x 6.35mm L, Slotted

PIN, LOCK, 1/8" x 1/4", Slotted

3шт.

28

178-495

SET SCREW,Hex Skt, 5/8" - 11

set, hex socket, 5/8 NC x 5/8 inch

1шт.
