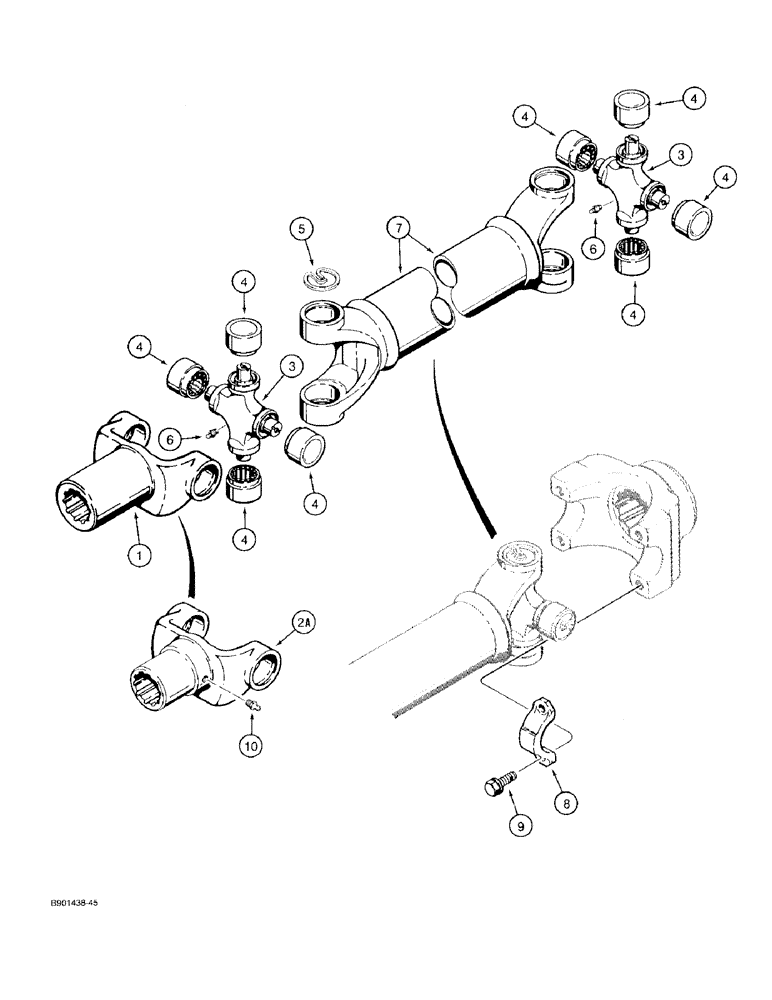

Запчасти Case 580SK (6-30) - DRIVE SHAFT, POWER SHUTTLE TO TRANSAXLE (06) - POWER TRAIN

D129436

DRIVE SHAFT

SHAFT ASSEMBLY primary, drive, to transaxle, used on models without PTO

1шт.

D147314

DRIVE SHAFT

SHAFT ASSEMBLY primary, drive, to transaxle, used in addition to D148969 shaft on models with PTO

1шт.

D148969

DRIVE SHAFT

SHAFT ASSEMBLY drive, input, to transaxle, used in addition to D147314 shaft on models with PTO. Includes: Ref. 1 through 7

1шт.

1

N14231

YOKE

end, to transaxle, D129436 or D147314 drive shaft, Includes: Ref. 2

1шт.

2

N13653

PLUG

grease, not shown

1шт.

2a

D149263

FORK

YOKE end, to transaxle, D148969 drive shaft only

1шт.

N14230

KIT

universal joint, Includes: Ref. 3 through 6

2шт.

3

NSS

NOT SOLD SEPARAT

JOINT universal, drive shaft

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING universal joint

4шт.

5

11256

SNAP RING

retaining

4шт.

6

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING grease, straight, 1/4-28 taper x 11/16 inch

1шт.

7

NSS

NOT SOLD SEPARAT

SHAFT drive, power shuttle

1шт.

8

D124146

CLAMP

STRAP bearing

2шт.

9

D124151

BOLT

special

4шт.

10

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4-28 x 1/2 inch, D148969 drive shaft yoke only

1шт.
