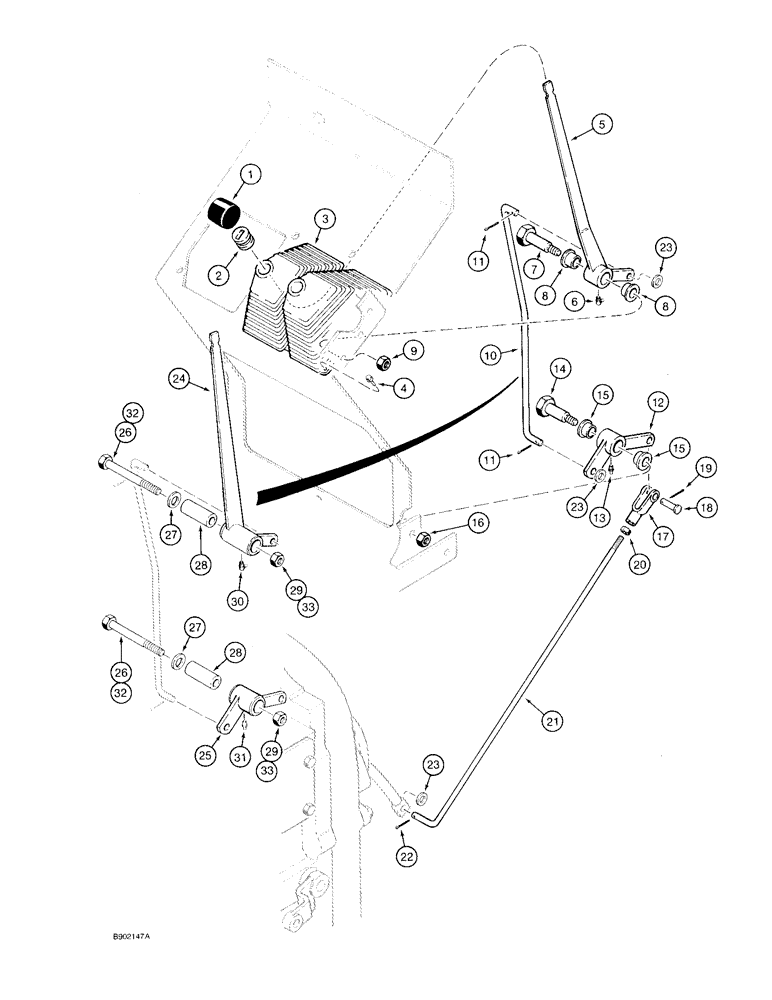

Запчасти Case 580SK (6-36) - FRONT DRIVE AXLE CONTROL, WITH SHIFT LEVER WELDED TO BELLCRANK (06) - POWER TRAIN

1

A177435

BALL KNOB

KNOB shift control lever

1шт.

2

D147946

BUSHING

- boot

1шт.

3

D137465

BOOT

dual lever, shift control and parking brake levers, see Figure 7-12 for parking brake lever

1шт.

4

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW self-tapping, hex washer head, 1/4 NC x 3/4 inch

4шт.

5

D147062

CONTROL LEVER

LEVER offset with bend, 1 inch long pivot tube, shift control, no longer available, order Ref. 24-31

1шт.

6

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING grease, 90 degree, 1/4-28 taper x 3/4 inch, used with D147062 lever, if used

1шт.

7

D147812

BOLT

BOLT special, shoulder, D147062 lever, if used

1шт.

8

D144602

BUSHING

- pivot, D147062 lever, if used

2шт.

9

131-1247

LOCK NUT,7/16"-20, GC

NUT hex, self-locking, 7/16 inch NF, if used, replaces 425-157 jam nut

1шт.

10

D146919

ROD

shift control, Serial Range: lever-bellcrank

1шт.

11

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

12

D146909

DRIVE, ANGLE

BELLCRANK, 1 inch pivot tube, used with D147062 lever, no longer available, order Ref. 24-31

1шт.

13

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4-28 x 1/2 inch, D146909 bellcrank, if used

1шт.

14

D147812

BOLT

BOLT special, shoulder, D146909 bellcrank, if used

1шт.

15

D144602

BUSHING

- pivot, bellcrank, D146909 bellcrank, if used

2шт.

16

131-1247

LOCK NUT,7/16"-20, GC

NUT hex, self-locking, 7/16 inch NF, if used, replaces 425-157 jam nut

1шт.

17

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS adjustable, 3/8 inch NF

1шт.

18

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, , Hardened 3/8" x 1 1/16"

1шт.

19

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

20

425-156

JAM NUT,Jam, 3/8"-24, G5

hex jam, 3/8 inch NF

1шт.

21

D146918

ROD

shift control, Serial Range: bellcrank-transaxle

1шт.

22

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

3шт.

24

D151089

LEVER

straight, 2 inch pivot tube, shift control

1шт.

25

D151100

PIVOT ASSY.

BELLCRANK, 2 inch pivot tube, used with D151089 lever

1шт.

26

413-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

hex, 7/16 NC x 3 inch, if used

2шт.

27

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32"), If used 1/2", SAE

2шт.

28

D149292

SPACER

BUSHING pivot, lever and bellcrank, if used

2шт.

29

231-1447

NUT,7/16"-14, GB

NUT, LOCK, , If used 7/16"-14, GB

2шт.

30

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , If used 90º, 1/8" NPT x .84" lg

1шт.

31

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch, if used, replaces 219-4 9/16 inch long fitting

1шт.

32

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

hex, 1/2 NC x 3 inch, if used

2шт.

33

131-208

SPECIAL NUT,1/2"-13

NUT heavy hex, self-locking, 1/2 inch NC, if used

2шт.
