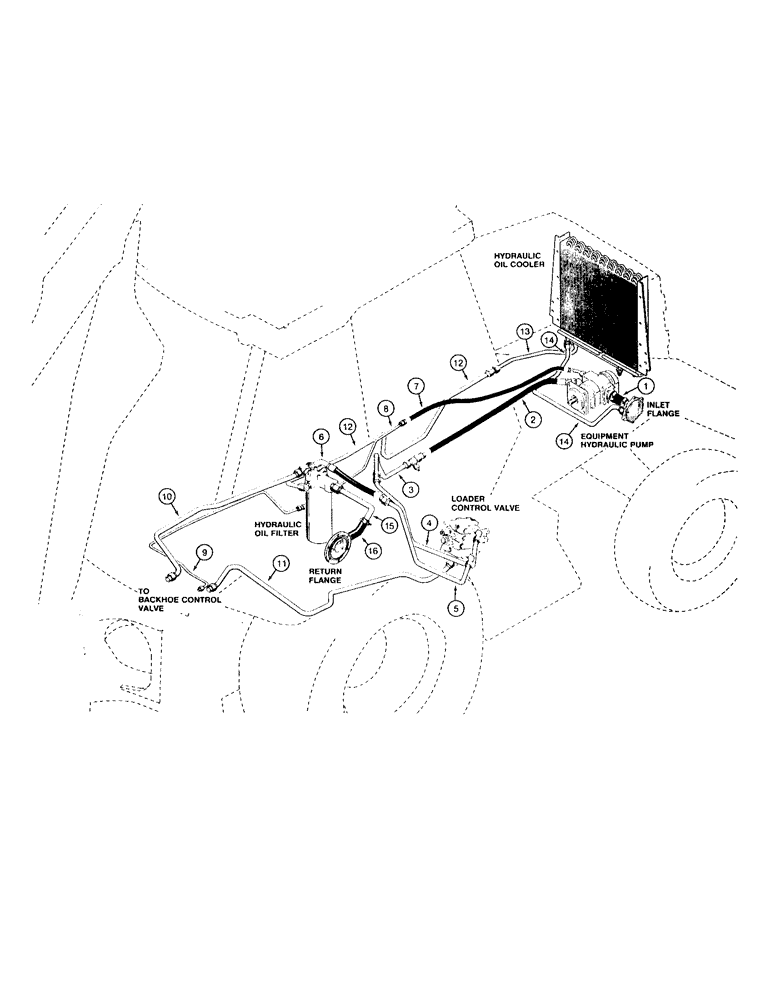

Запчасти Case 580SK (1-12) - PICTORIAL INDEX EQUIPMENT HYDRAULICS HYDRAULIC PUMP TO OIL FILTER AND CONTROL VALVES W/BACKHOE (00) - PICTORIAL INDEX

1

Hose at equipment hydraulic pump inlet adapter flange on chassis, Figure 8-002

1шт.

2

Hose at equipment hydraulic pump large section outlet, Figure 8-002

1шт.

3

Tube from pump outlet hose to loader valve, Figure 8-004

1шт.

4

Tube from pump outlet at loader valve inlet, Figure 8-004

1шт.

5

Return tube to filter from loader valve outlet, Figure 8-004

1шт.

6

Hose from loader valve return to filter, Figure 8-004

1шт.

7

Hose at equipment hydraulic pump small section outlet, Figure 8-006

1шт.

8

Tube at small pump section hose to backhoe control valve swing section, Figure 8-006

1шт.

9

Tube to backhoe control valve swing section inlet, Figure 8-006

1шт.

10

Backhoe return tube to filter, Figure 8-006

1шт.

11

Tube at backhoe valve inlet section from loader valve power beyond tube, Figure 8-006

1шт.

12

Oil filter tube to cooler inlet tube, Figure 8-012

1шт.

13

Oil cooler inlet tube, Figure 8-012

1шт.

14

Oil cooler return to resevoir tube, Figure 8-012

1шт.

15

Return to tank tube at hydraulic oil filter, Figure 8-012

1шт.

16

Return to tank hose at return flange on chassis, Figure 8-012

1шт.
