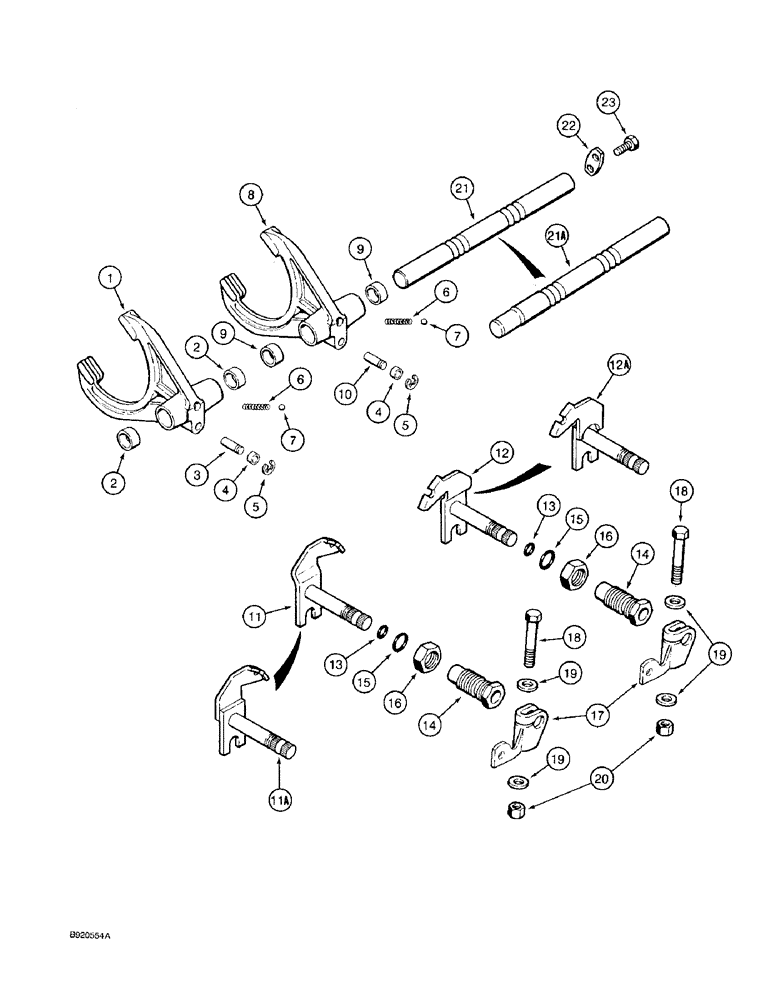

Запчасти Case 580SK (6-66) - TRANSAXLE ASSEMBLY, TRANSAXLE SHIFTER MECHANISM (06) - POWER TRAIN

1

A183009

FORK

ASSEMBLY gear shift, first and second, Includes: Ref. 2 and 3

1шт.

2

A178367

BUSHING,25.07mm ID x 28.02mm OD x 13mm L

shift fork

2шт.

3

A183146

SPLIT PIN/SAFETY PIN

PIN shift fork

1шт.

4

A178954

SLEEVE

shift fork pin

2шт.

5

381478R1

SNAP RING,#X43, .375" Dia, E-Type

Ring, Retaining, , shift fork pin, replaces A183147 #X43, .375" Dia, E-Type

2шт.

6

A175971

SPRING

detent

2шт.

7

211-212

BALL

7/16 inch, grade 50, chrome alloy steel

2шт.

8

A183009

FORK

ASSEMBLY gear shift, third and fourth, Includes: Ref. 9 and 10

1шт.

9

A178367

BUSHING,25.07mm ID x 28.02mm OD x 13mm L

shift fork

2шт.

10

A183146

SPLIT PIN/SAFETY PIN

PIN shift fork

1шт.

11

A190285

LEVER

ARM gear shift, first and second, no longer available, order one Ref. 11A, 1964326C1 and one Ref. 12A, 1964325C1 arms

1шт.

11a

1964326C1

LEVER ASSY.

ARM gear shift, first and second

1шт.

12

A190286

LEVER

ARM gear shift, third and fourth, no longer available, order one Ref. 11A, 1964326C1 and one Ref. 12A, 1964325C1 arms

1шт.

12a

1964325C1

LEVER ASSY.

ARM gear shift, third and fourth

1шт.

13

A178252

O-RING,1.8mm Thk x 15mm ID, Cl 5, 75 Duro

acuator shaft

2шт.

14

A188301

BUSHING,18.05mm ID x 27.1mm OD x 77.1mm L

shift mechanism

2шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

16

218-1280

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, self-locking, 1-1/16 inch NF

2шт.

17

1995109C1

LEVER

shaft actuating, replaces A190370 lever

2шт.

18

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex head, 12 - 1.75 x 70 mm

2шт.

19

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

20

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

21

A188348

RAIL

shifter fork, used with A183561 housing, Ref. 1 on Figure 6-62, prior to transaxle SN 202016, if used

1шт.

21a

1995142C1

SLIPPER

RAIL shifter fork, used with 1995141C1 housing, Ref. 1A on Figure 6-62, transaxle SN 202016 and after, if used

1шт.

22

A178279

SEALING STRIP

PLATE shift rail lock

1шт.

23

626-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

hex, 10 - 1.5 x 20 mm, class 10.9

2шт.
