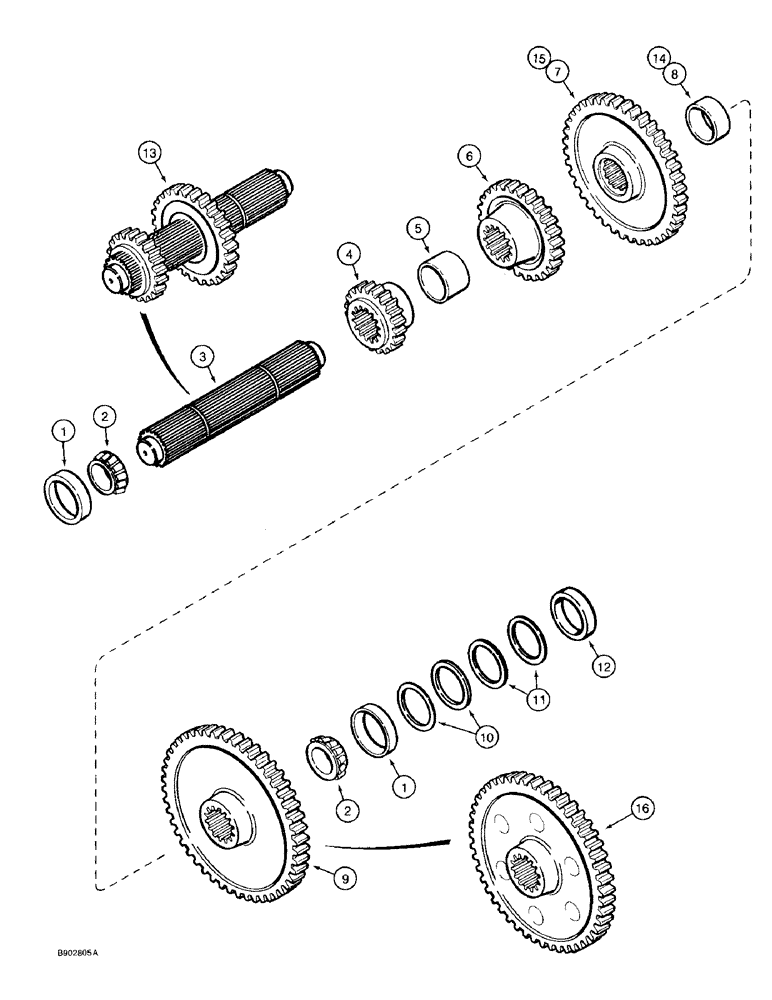

Запчасти Case 580SK (6-68) - TRANSAXLE ASSEMBLY, TRANSAXLE INTERMEDIATE SHAFT (06) - POWER TRAIN

1

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

- Tapered roller, Replaces G57451 cup

2шт.

2

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING tapered roller, replaces G57452 bearing

2шт.

3

A183911

SHAFT

intermediate, transaxle, if used

1шт.

Ref. 4 through 9 must be used with Ref. 3, A183911, shaft. Individual parts are not interchangeable with Ref. 13 - 16.

1шт.

4

A190078

PINION

GEAR drive, first, 25 teeth

1шт.

Ref. 4 through 9 must be used with Ref. 3, A183911, shaft. Individual parts are not interchangeable with Ref. 13 - 16.

1шт.

5

A186385

SPACER

first and second gear

1шт.

Ref. 4 through 9 must be used with Ref. 3, A183911, shaft. Individual parts are not interchangeable with Ref. 13 - 16.

1шт.

6

A190087

GEAR WHEEL

GEAR drive, second, 35 teeth

1шт.

Ref. 4 through 9 must be used with Ref. 3, A183911, shaft. Individual parts are not interchangeable with Ref. 13 - 16.

1шт.

7

A190086

PINION

GEAR drive, third, 53 teeth

1шт.

Ref. 4 through 9 must be used with Ref. 3, A183911, shaft. Individual parts are not interchangeable with Ref. 13 - 16.

1шт.

8

A186384

SPACER

1-3/4 inch ID, third and fourth gear

1шт.

Ref. 4 through 9 must be used with Ref. 3, A183911, shaft. Individual parts are not interchangeable with Ref. 13 - 16.

1шт.

9

A190085

PINION

GEAR drive, fourth, 97 teeth, no longer available, order one each of Ref. 13, shaft, 14, spacer, 15 and 16, gears

1шт.

Ref. 4 through 9 must be used with Ref. 3, A183911, shaft. Individual parts are not interchangeable with Ref. 13 - 16.

1шт.

10

A175453

SHIM,0.178mm Thk

Bearing adjusting 0.178mm Thk

1шт.

10

A175454

SHIM,54mm ID x 64.67mm OD x 0.5mm Thk

Bearing adjusting 0.508mm Thk

1шт.

11

K915558

SHIM,53.98mm ID x 64.29mm OD x 0.08mm Thk

Bearing adjusting 0.076mm Thk

1шт.

11

K915559

SHIM,53.98mm ID x 64.29mm OD x 0.13mm Thk

Bearing adjusting 0.127mm Thk

1шт.

12

A175689

SPACER

intermediate shaft

1шт.

13

A190304

SHAFT

intermediate, with first and second drive gears, transaxle, if used

1шт.

Ref. 14 through 16 must be used with Ref. 13, A190304, shaft. Individual parts are not interchangeable with Ref. 3 - 9.

1шт.

14

A190327

SPACER

1-21/32 inch ID, third and fourth gear

1шт.

Ref. 14 through 16 must be used with Ref. 13, A190304, shaft. Individual parts are not interchangeable with Ref. 3 - 9.

1шт.

15

A190310

PINION

GEAR drive, third, 53 teeth

1шт.

Ref. 14 through 16 must be used with Ref. 13, A190304, shaft. Individual parts are not interchangeable with Ref. 3 - 9.

1шт.

16

A190312

PINION

GEAR drive, fourth, 97 teeth

1шт.

Ref. 14 through 16 must be used with Ref. 13, A190304, shaft. Individual parts are not interchangeable with Ref. 3 - 9.

1шт.
