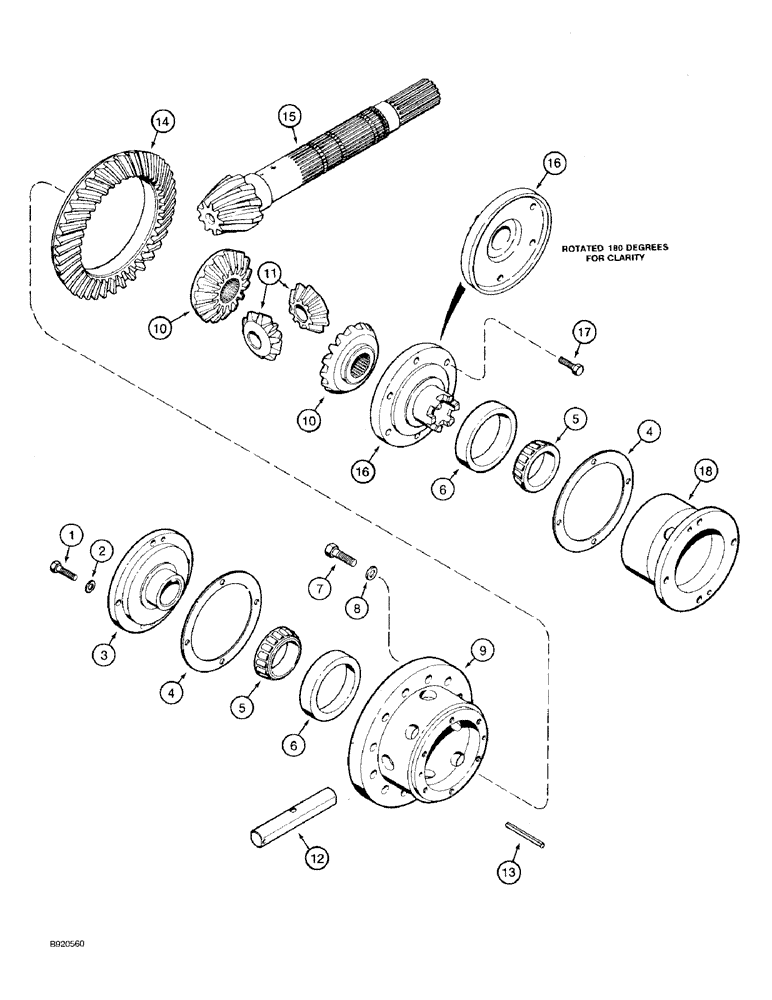

Запчасти Case 580SK (6-72) - TRANSAXLE ASSY,TRANSAXLE DIFF,MODELS W/O THRUST WASHER @ PINION &SIDE GEARS-TRANSAXLE SN JKA0202074 (06) - POWER TRAIN

1

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

8шт.

2

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

hardened

8шт.

3

A175200

CARRIER,180 mm ID x 45 mm OD x 53 mm

bearing, differential, left

1шт.

No longer available, for service order 1345865C1 bearing carrier, 1345864C1 differential carrier, and 1345909C1 kit, Ref. 3, 9-11, and 14-18 on Figure 6-74.

1шт.

4

A175236

SHIM,0.08mm Thk

Bearing carrier (0.003") 0.08mm Thk

1шт.

4

A175237

SHIM,138mm ID x 180mm OD x 0.2mm Thk

Bearing carrier (0.007") 0.18mm Thk

1шт.

4

A175238

SHIM,0.25mm Thk

Bearing carrier (0.010") 0.25mm Thk

1шт.

4

A175239

SHIM,138mm ID x 180mm OD x 0.69mm Thk

Bearing carrier (0.025") 0.63mm Thk

1шт.

5

25695HO

ROLLER BEARING,66.688mm ID x 30.124mm

CONE bearing, replaces A37160

2шт.

6

22396V

BEARING, CUP,112.739mm OD x 30.37mm W

CUP bearing, replaces A7890

2шт.

7

826-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9

hex, 12 - 1.75 x 45 mm

12шт.

8

26273R1

WASHER

flat, 17/32 x 1-1/16 x 1/8 inch

12шт.

9

A178135

CAGE

CARRIER differential, flanged half

1шт.

No longer available, for service order 1345865C1 bearing carrier, 1345864C1 differential carrier, and 1345909C1 kit, Ref. 3, 9-11, and 14-18 on Figure 6-74.

1шт.

10

A186833

GEAR

side, 16 tooth

2шт.

No longer available, for service order 1345865C1 bearing carrier, 1345864C1 differential carrier, and 1345909C1 kit, Ref. 3, 9-11, and 14-18 on Figure 6-74.

1шт.

11

A188633

GEAR

pinion, 10 tooth

2шт.

12

A178132

PIN

differential spider

1шт.

No longer available, for service order 1345865C1 bearing carrier, 1345864C1 differential carrier, and 1345909C1 kit, Ref. 3, 9-11, and 14-18 on Figure 6-74.

1шт.

13

38-11652

LOCK PIN,6.35mm OD x 82.55mm L, Slotted

PIN, LOCK, 1/4" x 3 1/4", Slotted

1шт.

A190010

GEAR, BEVEL

PINION AND RING GEAR matched set, Includes: Ref.14 and 15; See Figure 07-04, Ref 23 For Pinion Seal

1шт.

14

NSS

NOT SOLD SEPARAT

GEAR ring

1шт.

15

NSS

NOT SOLD SEPARAT

PINION bevel

1шт.

16

A186835

CAGE

CARRIER differential half

1шт.

No longer available, for service order 1345865C1 bearing carrier, 1345864C1 differential carrier, and 1345909C1 kit, Ref. 3, 9-11, and 14-18 on Figure 6-74.

1шт.

17

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

18

A175242

BEARING CARRIER,98 mm ID x 180 mm OD x 109.75 mm

CARRIER bearing, differential, right

1шт.
