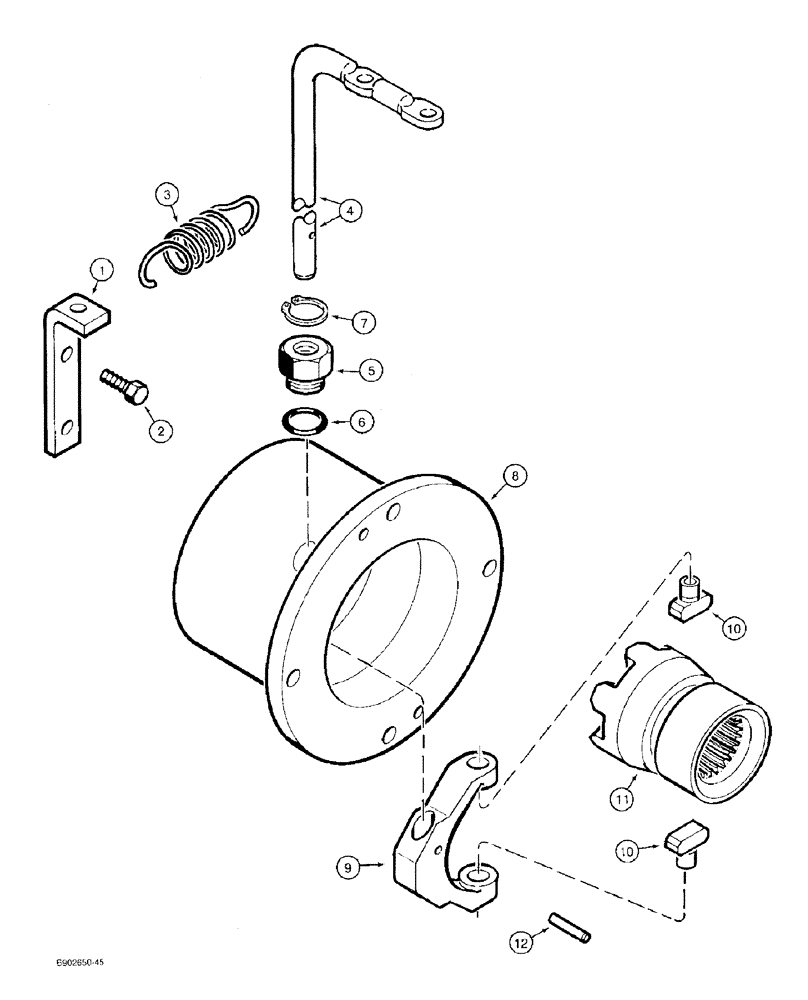

Запчасти Case 580SK (6-76) - TRANSAXLE ASSEMBLY, TRANSAXLE DIFFERENTIAL LOCK (06) - POWER TRAIN

1

A190233

PLATE ASSY.

BRACKET spring anchor

1шт.

2

613-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

3

A190340

SPRING

lock, Serial Range: shaft-bracket

1шт.

4

A190317

SHAFT

differential lock rod, to differential lock pedal, Ref. 20, shown on Figure 6-32

1шт.

5

A175295

PLUG

ADAPTER shaft, Includes: Ref. 6

1шт.

The external o'ring is 237-6010 Ref. 6 is the internal "o" ring.

1шт.

7

26593R1

SNAP RING,#50, Ext

Ring, Snap, #50, Ext

1шт.

8

A175242

BEARING CARRIER,98 mm ID x 180 mm OD x 109.75 mm

CARRIER differential

1шт.

9

A190263

FORK

ASSEMBLY shift, Includes: Ref. 10

1шт.

10

A190265

SHIFTER FORK,10mm OD x 21mm L

shift fork

2шт.

11

A190264

COLLAR

COLLAR differential lock

1шт.

12

138-2067

PIN,3/16" x 1", Coiled

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
