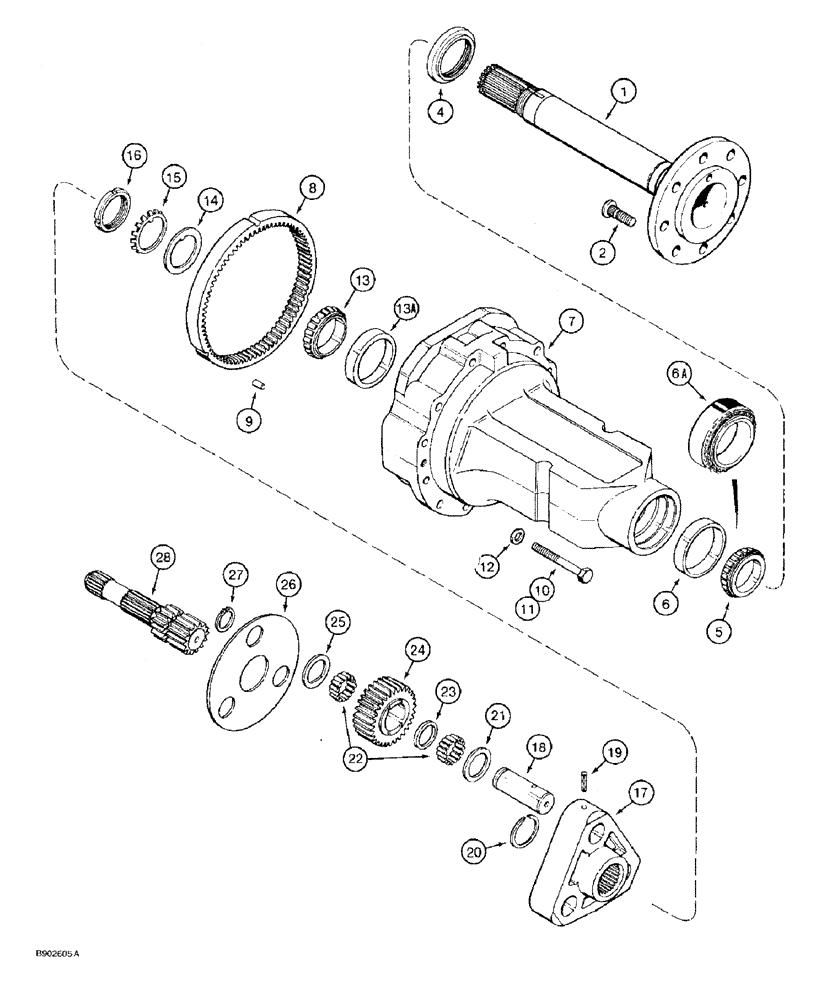

Запчасти Case 580SK (6-78) - TRANSAXLE ASSEMBLY, TRANSAXLE REAR AXLE AND PLANETARY GEARS (06) - POWER TRAIN

1995094C1

SHAFT ASSY.

SHAFT ASSEMBLY flanged, rear axle, replaces A188556 shaft, Includes: Ref. 1 and 2

2шт.

1

NSS

NOT SOLD SEPARAT

SHAFT rear axle

1шт.

2

3220372R2

STUD,M20 x 1.5 x 58mm, Cl 30

BOLT rear axle

8шт.

4

A183953

OIL SEAL

SEAL axle shaft

2шт.

5

102161H

BEARING ASSY,68.262mm ID x 21.996mm

BEARING tapered roller, outer, production only, order Ref. 6A, 1997134C1 bearing assembly for service, after August 1994

2шт.

6

29214H

BEARING CUP,110mm OD x 18.82mm W

CUP tapered roller bearing, production only with Ref. 5, outer bearing, for service of the outer cup and bearing, order Ref. 6A, 1997134C1, bearing assembly

2шт.

6a

1997134C1

BEARING ASSY,68.26mm ID x 110.03mm OD x 22.2mm W

BEARING tapered roller, includes cup, service replace- ment for Ref. 5 bearing and Ref. 6 cup, not available until August 1994

2шт.

7

A190130

AXLE CARRIER

HOUSING rear axle, Includes: Ref. 8 and 9

2шт.

See fig. 6-32 for mounting hardware for P/N A190130 housing.

1шт.

8

NSS

NOT SOLD SEPARAT

GEAR planetary ring, was part number A175955 which is no longer serviced separately, order A190130 housing

2шт.

9

A175335

PIN,12.02mm OD x 25mm L

planetary ring gear

6шт.

10

828-16130

BOLT,Hex, M16 x 2 x 130mm, Cl 10.9

- hex, 16 - 2 x 130 mm, class 10.9

2шт.

11

828-16140

BOLT,Hex, M16 x 2 x 140mm, Cl 10.9

hex, 16 - 2 x 140 mm, class 10.9

22шт.

12

96-31066

WASHER,0.66" ID x 1.31" OD x 0.19" Thk

24шт.

13

190585R91

TAPERED BEARING,66.68 mm ID x 22.2 mm

BEARING tapered roller, inner

2шт.

13a

29214H

BEARING CUP,110mm OD x 18.82mm W

CUP tapered roller bearing, replaces A26744 bearing cup

2шт.

14

A175230

WASHER, THRUST

WASHER thrust bearing

2шт.

15

192-364

LOCK WASHER

WASHER bearing lock, SAE No. TW-113

2шт.

16

131-1064

BEARING LOCK NUT

tapered roller bearing, TN13

2шт.

17

A186686

CARRIER

ASSEMBLY planetary gear, Includes: Ref.18 and 19

2шт.

18

A186685

PIN

planetary gear carrier

3шт.

19

135-376

GROOVED PIN,3/8" x 1 1/2", Type F

Pin, Grooved, 3/8" x 1 1/2", Type F

3шт.

20

A175241

RING, SNAP

RING retaining, carrier to rear axle

2шт.

21

A186642

WASHER

carrier pin

6шт.

22

A178187

ROLLER

BEARING roller

384шт.

23

A178189

SEPARATOR

SPACER roller bearing separator

6шт.

24

A178193

GEAR

planetary, 28 teeth

6шт.

25

A175338

WASHER

D-WASHER carrier pin

6шт.

26

A186651

DISC

SHIELD planetary gear

2шт.

27

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Planet gear (Replaces D25280) #175, Ext

6шт.

28

A188558

SHAFT

sun gear, right-hand

1шт.

29

A188559

SHAFT

sun gear, left-hand, not shown

1шт.
