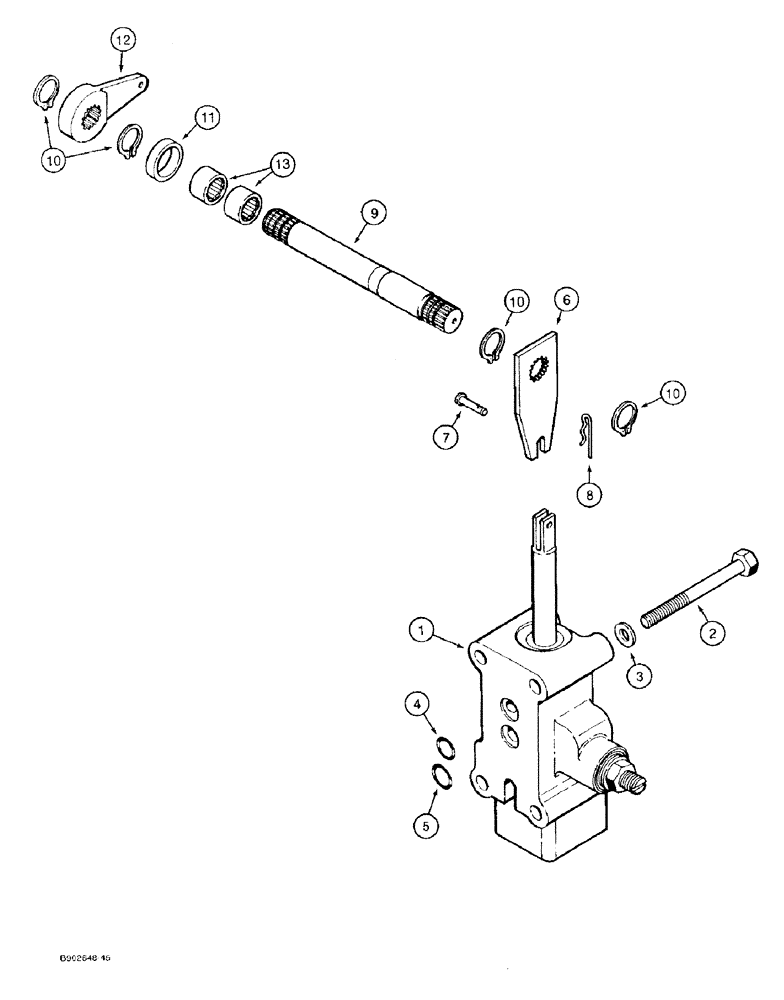

Запчасти Case 580SK (6-82) - TRANSAXLE ASSEMBLY, PTO CONTROL VALVE LINKAGE (06) - POWER TRAIN

1

1971419C3

VALVE

PTO control, see parts list Figure 6-84

1шт.

2

828-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

- hex, 10 - 1.5 x 90 mm, class 10.9

4шт.

3

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

4шт.

4

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

Valve to PTO housing sealing -112, 70 Duro, .487" ID x .103" Thk

1шт.

5

238-5113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

Valve to PTO housing sealing -113, 70 Duro, .549" ID x .103" Thk

1шт.

6

A186743

CONTROL LEVER

LEVER PTO valve linkage internal

1шт.

7

H343822

AXLE PIN

PIN clevis valve spool

1шт.

8

132-2

SPLIT PIN/SAFETY PIN

PIN cotter, 1/16 x 5/16 inch

1шт.

9

1345685C1

SHAFT

PTO valve linkage

1шт.

10

A27521

SNAP RING,#68, Ext

Ring, Snap, , no longer used, order 100-1168 ring #68, Ext

4шт.

10

100-1168

SNAP RING,#68, Ext

Ring, Snap, , lever (Replaces A27521) #68, Ext

4шт.

11

A186635

SEAL,17.89mm ID x 30.03mm OD x 7mm Thk

PTO linkage shaft

1шт.

12

1345849C1

LEVER

PTO valve linkage external

1шт.

13

359955R91

BEARING, NEEDLE,Needle, 19.04mm ID x 25.4mm OD x 15.76mm W

BEARING needle

2шт.
