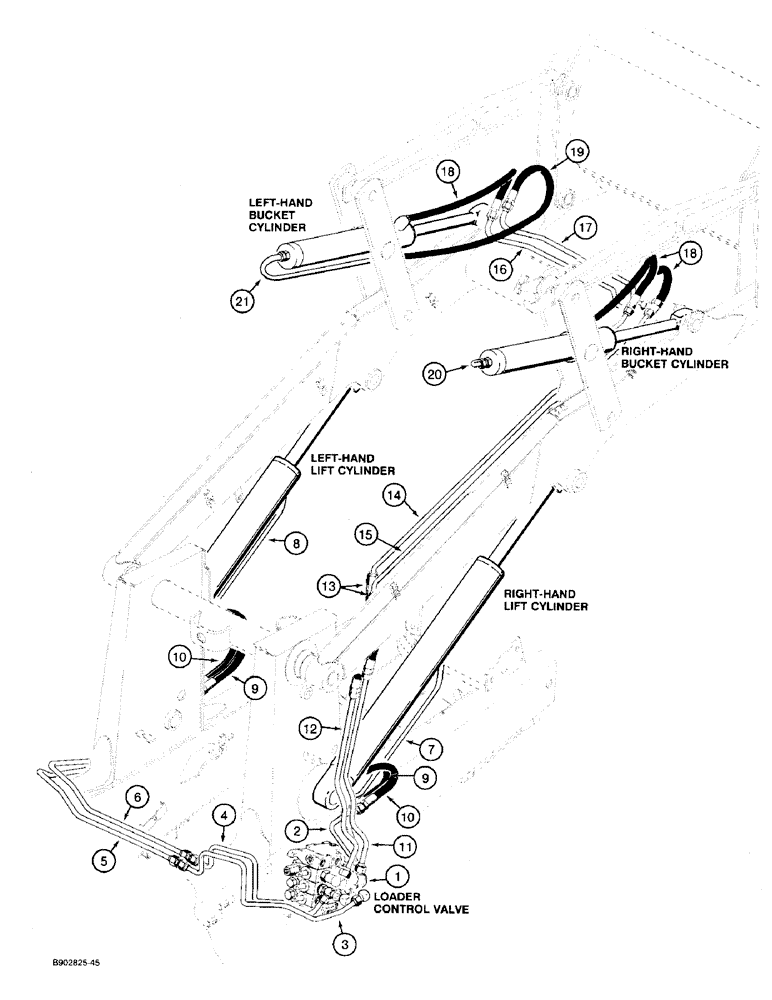

Запчасти Case 580SK (1-14) - PICTORIAL INDEX LOADER HYDRAULICS LIFT AND BUCKET CYLINDERS (00) - PICTORIAL INDEX

1

Tube from lower lift port tee of loader control valve to closed end of right-hand lift cylinder, Figures 8-016, 8-017A

1шт.

2

Tube from upper lift port tee of loader control valve to rod end of right-hand lift cylinder, Figures 8-016, 8-017A

1шт.

3

Tube from lower lift port tee of loader control valve to closed end of left-hand lift cylinder, Figures 8-016, 8-017A

1шт.

4

Tube from upper lift port tee of loader control valve to rod end of left-hand lift cylinder, Figures 8-016, 8-017A

1шт.

5

Corssover tube to closed end left-hand lift cylinder, Figures 8-016, 8-017A

1шт.

6

Crossover tube to rod end of left-hand lift cylinder, Figures 8-016, 8-017A

1шт.

7

Tube at rod end of rihgt-hand lift cylinder, Figures 8-016, 8-017A

1шт.

8

Tube at rod end of left-hand lift cylinder, Figures 8-016, 8-017A

1шт.

9

Hose at rod end of lift cylinders, Figures 8-016, 8-017A

1шт.

10

Hose at closed end of lift cylinders, Figures 8-016, 8-017A

1шт.

11

Tube at lower bucket port of loader control valve to closed end of bucket cylinders, Figure 8-018A

1шт.

12

Tube at upper bucket port of loader control valve to rod end of bucket cylinders, Figure 8-018A

1шт.

13

Hose at loader lift frame pivot, Figure 8-018A

1шт.

14

Upper tube on right-hand lift arm, Figure 8-018A

1шт.

15

Lower tube on right-hand lift arm, Figure 8-018A

1шт.

16

Lower corssover tube to rod end of bucket cylinders, Figure 8-018A

1шт.

17

Upper corssover tube to closed end of bucket cylinders, Figure 8-018A

1шт.

18

Hose to rod end of left-hand and right-hand bucket cylinders and at closed end of right-hand bucket cylinder, Figure 8-018A

1шт.

19

Hose to closed end of left-hand bucket cylinder, Figure 8-018A

1шт.

20

Tube at closed end of right-hand bucket cylinder, Figure 8-018A

1шт.

21

Tube at closed end of left-hand bucket cylinder, Figure 8-018A

1шт.
