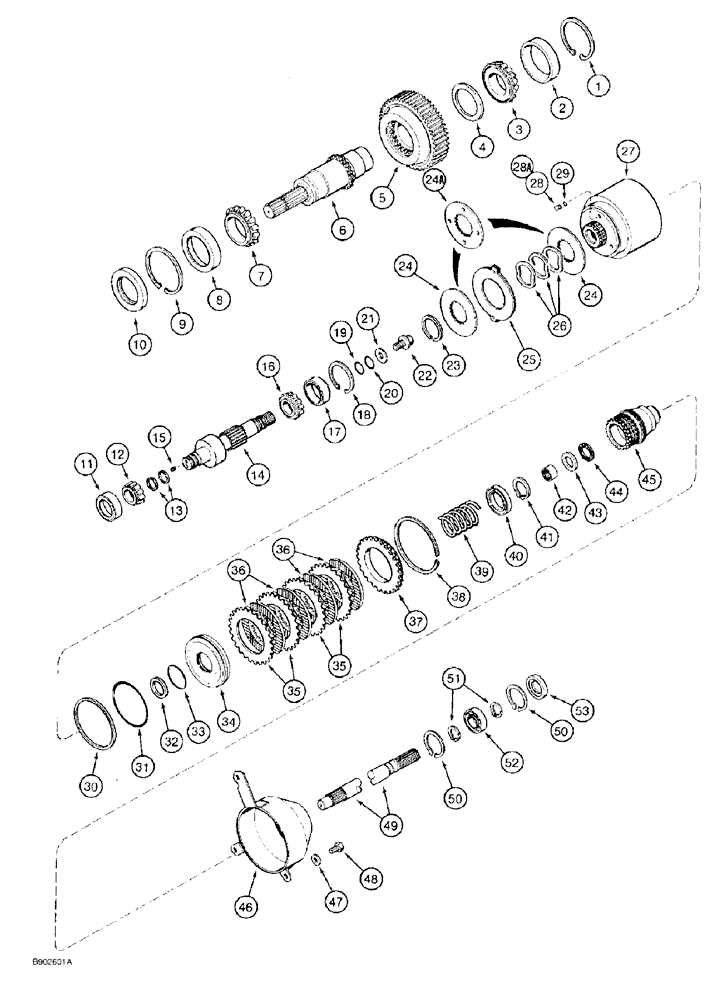

Запчасти Case 580SK (6-88) - TRANSAXLE ASSEMBLY, PTO CLUTCH AND BRAKE (06) - POWER TRAIN

1

A152252

RING

snap, output shimming, if used

1шт.

1

1345620C1

CIRCLIP

RING snap, output shimming, 2.7 mm, if used

1шт.

1

1345621C1

SNAP RING

RING snap, output shimming, 2.6 mm, if used

1шт.

1

1345622C1

SNAP RING

RING snap, output shimming, 2.5 mm, if used

1шт.

1

1345623C1

SNAP RING

RING snap, output shimming, 2.4 mm, if used

1шт.

2

659459R1

BEARING, CUP

CUP tapered roller bearing, output shaft front

1шт.

3

158359C91

ROLLER BEARING,57.15mm ID x 21mm W

BEARING tapered roller, output shaft front, replaces A150146

1шт.

4

1341177C1

THRUST WASHER

WASHER thrust, PTO output gear

1шт.

5

1341172C3

PINION

GEAR driven, 540 RPM

1шт.

6

1995036C1

SHAFT

output, PTO

1шт.

7

102161H

BEARING ASSY,68.262mm ID x 21.996mm

BEARING tapered roller, output shaft rear

1шт.

8

29214H

BEARING CUP,110mm OD x 18.82mm W

CUP tapered roller bearing, output shaft rear

1шт.

9

R32220

SNAP RING,4.331", Int, #433

Ring, Snap, , output shaft rear 4.331", Int, #433

1шт.

10

A175136

OIL SEAL,66.63mm ID x 111.2mm OD x 11.38mm Thk

oil, output shaft

1шт.

11

671033R1

BEARING, CUP

CUP tapered roller bearing, rear input shaft, replaces A153748

1шт.

12

671032R1

TAPERED BEARING,33.34mm ID x 22.33mm W

BEARING tapered roller, rear input shaft, replaces A153749

1шт.

13

A188295

SEALING RING,28.48mm ID x 31.8mm OD x 2.38mm Thk

RING sealing, input shaft

2шт.

14

1341276C2

SHAFT ASSY.

SHAFT ASSEMBLY input, service for shaft with or without rear splines, Includes: Ref. 15

1шт.

15

83-3314

SET SCREW,Hex Soc, 5/16"-18 x 1/4"

SCREW set, 7/16 NC x 3/8 inch

1шт.

16

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

BEARING tapered roller, front input shaft

1шт.

17

50213V

BEARING CUP

CUP tapered roller bearing, front input shaft

1шт.

18

100-21275

SNAP RING,2.75", Int, #275

Ring, Snap, , Front brg shimming, if used (Replaces 31538 ring) 2.75", Int, #275

1шт.

18

1345614C1

SPECIAL RING

RING snap, front bearing shimming, 2.3 mm, if used

1шт.

18

1345615C1

SPECIAL RING

RING snap, front bearing shimming, 2.2 mm, if used

1шт.

18

1345616C1

SPECIAL RING

RING snap, front bearing shimming, 2.1 mm, if used

1шт.

18

1345617C1

SNAP RING

RING snap, front bearing shimming, 2 mm, if used

1шт.

19

238-5215

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

1-1/16 ID x 1/8 inch wide, distributor seal front

1шт.

20

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

Distributor seal front -214, 70 Duro, .984" ID x .139" Thk

1шт.

21

A175129

WASHER, THRUST

WASHER retainer, clutch hub

1шт.

22

853-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

hex, 12 - 1.75 x 25 mm, class 10.9, clutch assembly retainer

1шт.

23

N6263

SNAP RING,M55, Ext

RING retaining, plate

1шт.

24

A183439

BRAKE PLATE

PLATE brake steel, without friction material, no longer available, order 112627A1 kit shown below

2шт.

24a

1995264C1

BRAKE DISC

PLATE brake friction, with friction material, no longer available, order 112627A1 kit shown below

2шт.

Part of PTO brake kit P/N 112627A1.

1шт.

25

1345606C1

BRAKE DISC

PLATE brake reaction, no longer available, order 112627A1 kit shown below

1шт.

Part of PTO brake kit P/N 112627A1.

1шт.

26

1345690C1

SPRING

wave washer, three included in kit

2-3шт.

Part of PTO brake kit P/N 112627A1.

1шт.

27

A188685

HOUSING

clutch

1шт.

28

A183438

PIN,7.29mm OD x 15.3mm L

piston, used with item 24, A183439, plate

3шт.

28a

1995268C1

PISTON

PIN piston, used with item 24A, 1345606C1, plate

3шт.

Part of PTO brake kit P/N 112627A1.

1шт.

29

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

-008, 70 Duro, .176" ID x .070" Thk, Piston pin

3шт.

Part of PTO brake kit P/N 112627A1.

1шт.

112627A1

KIT

KIT PTO brake, Includes: Ref. 24A - 26, 28A and 29

1шт.

30

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

piston, external

1шт.

31

238-5156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 5, 75 Duro

Piston, external (Replaces A158050) -156, 70 Duro, 4.237" ID x .103" Thk

1шт.

32

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

SEAL piston, internal

1шт.

33

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

Piston, internal (Replaces A159296) -137, 90 Duro, 2.05" ID x .103" Thk

1шт.

34

A159292

PISTON

clutch

1шт.

35

A175806

PLATE

clutch, separator

4шт.

36

A188946

DRIVE PLATE,81.9mm ID x 127mm OD x 2.6mm Thk

PLATE clutch, friction

4шт.

Service with 1997129C1 waffle-pattern friction plate.

1шт.

37

A178020

PLATE

clutch, backing

1шт.

38

A158227

CIRCLIP

RING retaining, backing plate

1шт.

39

A183508

SPRING

PTO piston return

1шт.

40

A183436

RETAINER,45.25mm ID x 65.45mm OD x 5mm Thk

spring

1шт.

41

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Planet gear (Replaces D25280) #175, Ext

1шт.

42

A175839

NEEDLE BEARING,Needle, 25mm ID x 32mm OD x 16mm W

BEARING input shaft

1шт.

43

A146625

WASHER, THRUST,28.63mm ID x 43.95mm OD x 3.2mm Thk

WASHER thrust

1шт.

44

T36441

THRUST BEARING,1.127" ID x 1.74" OD x 0.0781"

BEARING rear input shaft

1шт.

45

A188600

YOKE

inner hub

1шт.

46

A190146

BAFFLE

PTO clutch

1шт.

47

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

48

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

hex, 8 - 1.25 x 20 mm, class 10.9, PTO baffles to housing

3шт.

49

A188245

SHAFT

PTO rear input

1шт.

50

S62213

SNAP RING,2.165", Int, #216

Ring, Snap, , PTO input shaft, replaces 452166R1 2.165", Int, #216

2шт.

51

301020R1

SNAP RING,#118, Ext

Ring, Snap, , idler gear and bearing retainer, replaces A8218 #118, Ext

2шт.

52

451590R91

BALL BEARING,30mm ID x 55mm OD x 13mm W

ball, replaces A158333

1шт.

53

A186767

OIL SEAL

PTO input shaft oil

1шт.
