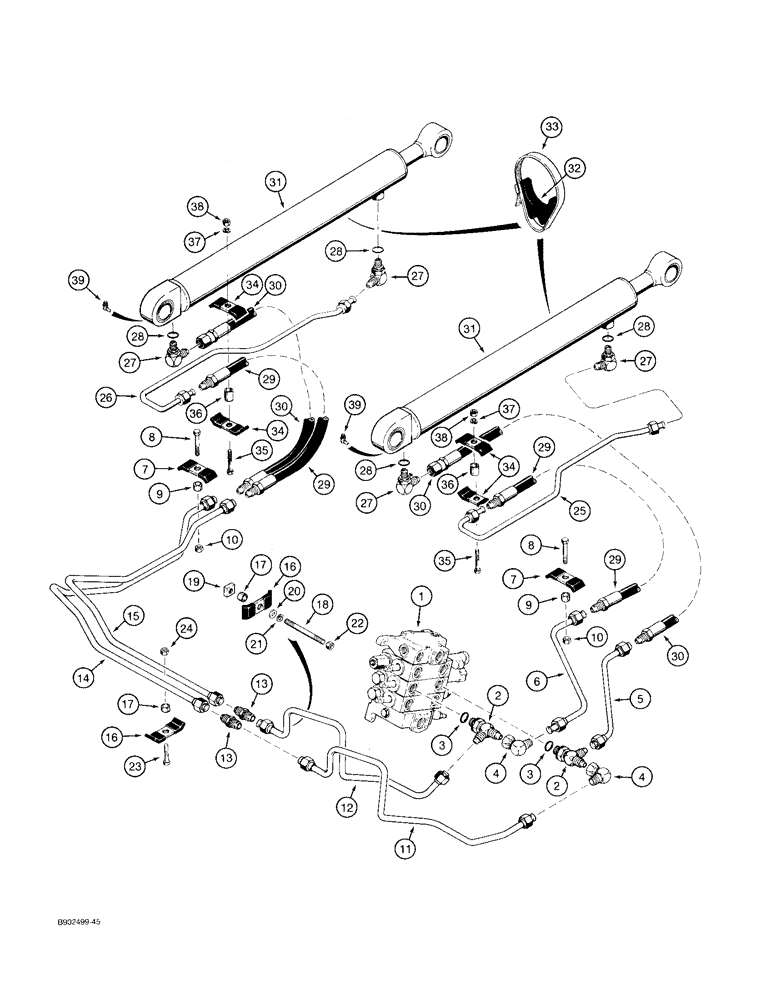

Запчасти Case 580SK (8-016) - LOADER LIFT CYLINDER HYDRAULIC CIRCUIT, PRIOR TO P.I.N. JJG0169931 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY loader control, for correct assembly and components, see Figure 8-064 or 8-066, for mounting see Figure 9-002

1шт.

2

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8-14 inch flare branch x flare x adj O-ring boss, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

90 degree, 7/8-14 inch flare x swivel flare

2шт.

5

D145928

PIPE

TUBE, tee to closed end of right-hand lift cylinder

1шт.

6

D145922

PIPE

TUBE, tee to rod end of right-hand lift cylinder

1шт.

7

D143846

CLAMP

- Metal, Tube

2шт.

8

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

9

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

tube clamp

2шт.

10

231-1446

NUT,3/8" - 16, Gr 5

NUT hex, self-locking, 3/8 inch NC, grade 8

2шт.

11

D149357

TUBE

at tee, to closed end of left-hand lift cylinder

1шт.

12

D149359

TUBE

at tee, to rod end of left-hand lift cylinder

1шт.

13

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR straight, 7/8-14 inch flare

2шт.

14

D145924

TUBE

crossover, to closed end of left-hand lift cylinder

1шт.

15

D145918

TUBE ASSY.

TUBE crossover, to rod end of left-hand lift cylinder

1шт.

16

D138055

CLAMP

tube

2шт.

17

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

tube clamp

2шт.

18

R46227

STUD

special, tube clamp to chassis bracket

1шт.

19

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

1шт.

20

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

21

492-11038

LOCK WASHER,3/8"

1шт.

22

425-106

NUT,3/8"-16, Cl 5

1шт.

23

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

24

231-1446

NUT,3/8" - 16, Gr 5

NUT hex, self-locking, 3/8 inch NC, grade 8

1шт.

25

D149044

PIPE

TUBE, at rod end of right-hand lift cylinder

1шт.

26

D149046

PIPE

TUBE, at rod end of left-hand lift cylinder

1шт.

27

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 28

4шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

29

D131496

HOSE,12.7mm ID x 690mm L

690 mm long, to rod end of lift cylinders replaces D143828

2шт.

30

D131497

HOSE,12.7mm ID x 725mm L

725 mm long, to closed end of lift cylinders replaces D140951

2шт.

31

1340976C1

CYLINDER ASSY.

CYLINDER ASSEMBLY lift, right-hand and left-hand, parts list Figure 8-116, no longer available, order 110303A1 cylinder on Figure 8-117C

2шт.

32

D38648

BLOCK

SPACER rubber, single tube

2шт.

33

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj., Tube to cylinder #64, 3.56/4.50 Type F Worm

2шт.

34

D143846

CLAMP

- Metal, Hose

4шт.

35

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

36

D143412

SPACER,10.31mm ID x 15.81mm OD x 23.88mm L

hose, at, Serial Range: tubes-cylinders

2шт.

37

492-11038

LOCK WASHER,3/8"

2шт.

38

425-106

NUT,3/8"-16, Cl 5

2шт.

39

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.
